2016 new frameless terrace glazing aluminum window

The main features of the system finzone10 balcony window

New system: a variety of finzone10 for the shape of the balcony, balcony glass.

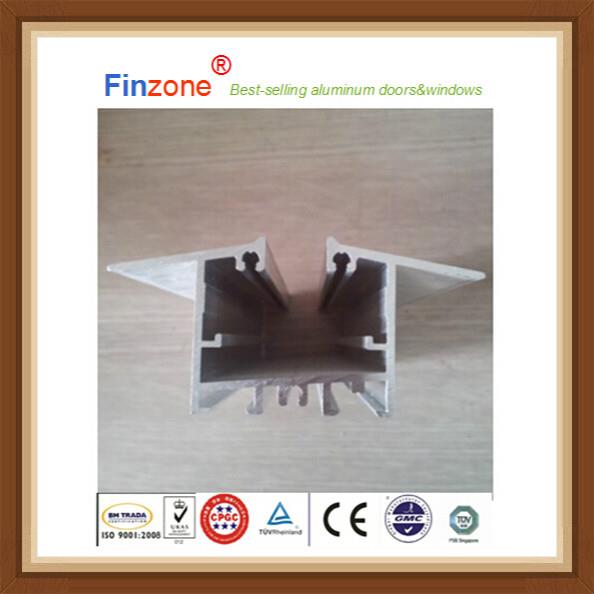

Compensation configuration file: there is a compensation profile, you can adjust the gap between the window and the ceiling.

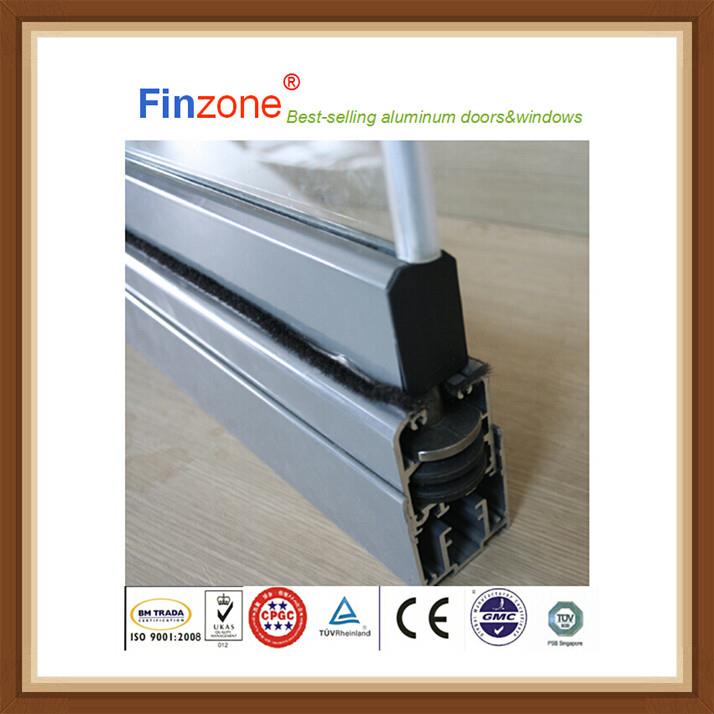

The best roller: the use of large ball bearings and sliding wheels and smooth.

Large glass panel: the maximum width of finzone10 and maximum height of 750mm, each glass panel 2800mm.

Hinge axis: the use of 304 of the entire hinge axis, can withstand greater weight and avoid the glass plate down.

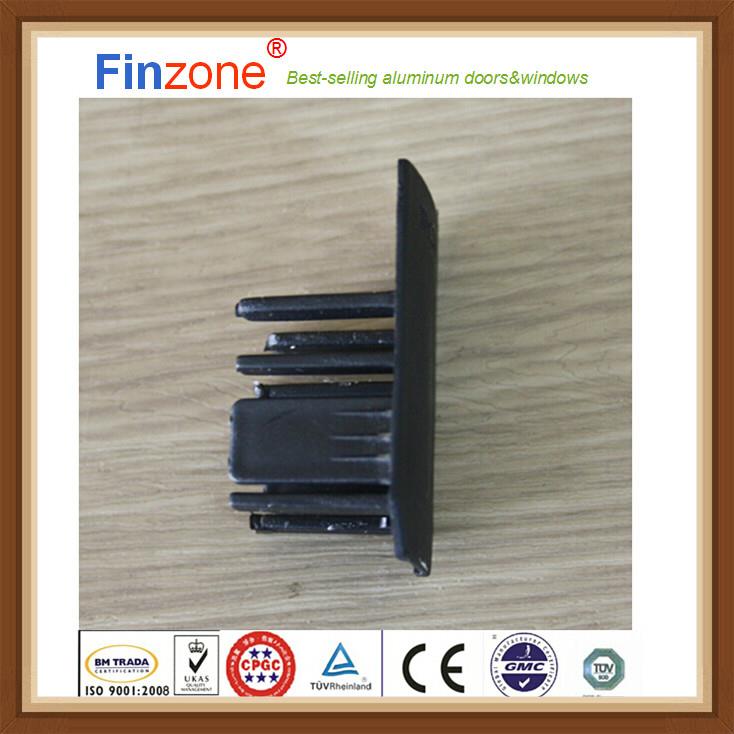

Protective caps: use nylon caps on glass to avoid damage.

Connection hardware: use 2 zinc, to facilitate the connection between the 2 track sections and any angle.

Mechanical properties of finzone10 balcony window:

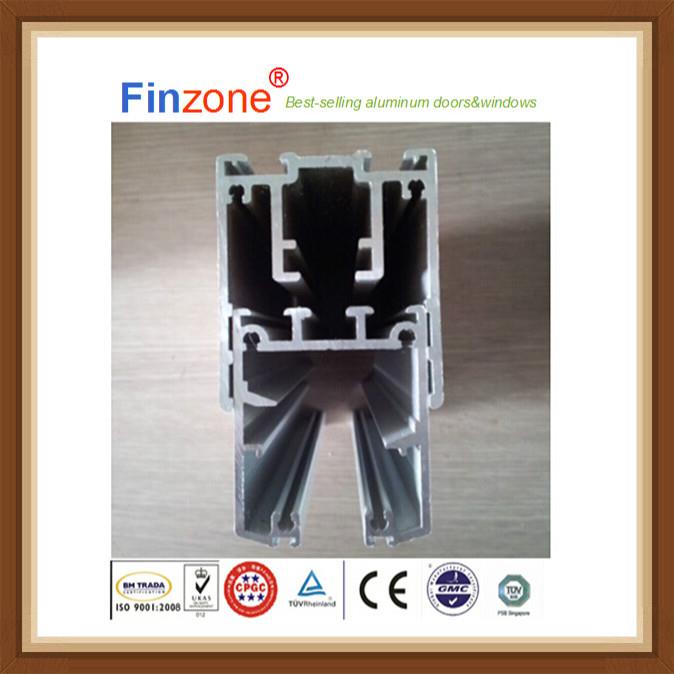

6063T5 compliance with the special profile of the guide curve

Tensile strength from oriented frame: 860 kg

Deflection of the guide section 80 kg / 3.8 m:

Vertical: 3.5 cm

Level: 7.5 cm

No permanent shape change

Each glass element is supported by four 8 mm hinge shaft, with a total of 10 horizontal wheels.

In the random load nylon bearing wheel durability: no more than 600 kg of gear thermal resistance (POM): about 90 degrees C

Frost resistance: 30 degree or above

All metal parts are non corrosive: aluminum and stainless steel

The installation of concrete and brick surfaces is made of 8 mm stainless steel bolts and Huang Tongmao

Sound insulation performance of finzone10 balcony window

For 100 Hz, 6.7 dB reduction

For 2400 Hz, 13.5 dB reduction

According to the international standard 140-5 &amp ISO; 717-1 ISO measurement

Pressure for WindWind resistant capacity of Finzone10 balcony window

The wind speed can be supported according to the height of the plate and the thickness of the glass

Finzone10 balcony window shape open map

The choice of the color of the balcony window
