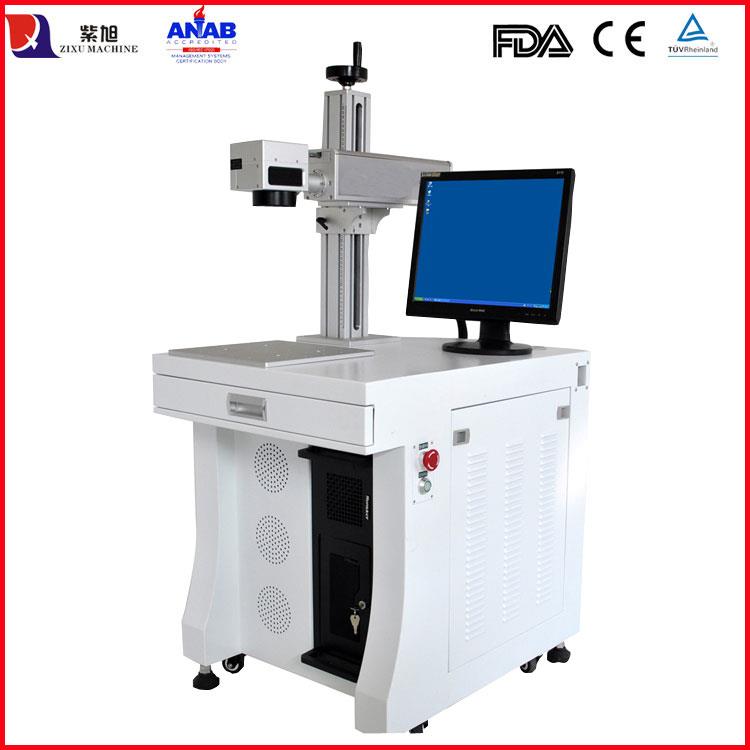

20w Factory Price Laser Engravings Marking Machine for Autoparts
20w Factory Price Laser Engravings Marking Machine for Autoparts
What is the advantage of our fiber laser marking machine?
1. The resonant cavity of fiber laser without optical lenses, that means zero adjustment, zero maintenance and high stability, which is unmatched by traditional laser.
2. Fiber laser output can be widely used in various multidimensional arbitrary space processing. Make the design of machinery part much simple.
3. Competent for bad working environment, have high tolerance for dust, shock, shock, humidity and temperature.
4. Laser marking lines can reach millimeter to micrometer, imitation and changes are very difficult. Using the laser technology to produce marker of security products is very important.
5. Say goodbye to electrical and water cooling system, air cooling system is coming!!
6. The high electro-optical efficiency: the comprehensive electro-optical efficiency is above 20%, saves the working power consumption and saves the running cost.
7. Quiet marking, no noisy will coming!
8. There is no pollution source for laser processing, and it is a kind of clean and high environmental protection technology.
How about the parameters of fiber laser marking machine?
Laser power | 10W/20W
|
Laser Wavelength | 1064nm |
Light beam quality | <2 |
Repeating precision | ±0.002 |
Marking range | 110x110mm(customize) |
Marking depth | 0.01~1mm
|
Marking speed | 7000mm/s |
Minimum character | 0.15mm |
Minimum line width | 0.01mm |
Repeating frequency | 20KHz~30KHz |
Marking content | Graphics, text, bar codes, two-dimensional code, date, batch number, serial number |
Graphic format supported | bmp,png,ai,dxf,dst,plt |
working voltage | 220V±10%/50Hz/4A |
Size | 75*65*145cm |
Gross Weight | 75kg |
Control interface | standard USB port
|
Working environment | Clean and dust free or dust less |
Laser module life | 100000~200000 hours |
Chongqing ZIXU Machine Works
- Phone: +86 023-86023033
- Business Type: Manufacturer
- Location: China
- Main Products: Laser And Pneumatic Marking Machine
- Total Employees:Less than 100 people
- Year Established:2006
- Export Markets:Domestic Market,North America,South America,Asia,Europe,Africa,Oceania
- Total Annual Revenue:US$ 100 million
