20w Laser Logo Plastic Product Printing Machine


What is the advantage of our fiber laser marking machine?



1. The resonant cavity of fiber laser without optical lenses, that means zero adjustment, zero maintenance and high stability, which is unmatched by traditional laser.



2. Fiber laser output can be widely used in various multidimensional arbitrary space processing. Make the design of machinery part much simple.



3. Competent for bad working environment, have high tolerance for dust, shock, shock, humidity and temperature.



4. Laser marking lines can reach millimeter to micrometer, imitation and changes are very difficult. Using the laser technology to produce marker of security products is very important.



5. Say goodbye to electrical and water cooling system, air cooling system is coming!!



6. The high electro-optical efficiency: the comprehensive electro-optical efficiency is above 20%, saves the working power consumption and saves the running cost.



7. Quiet marking, no noisy will coming!



8. There is no pollution source for laser processing, and it is a kind of clean and high environmental protection technology.



Car Led Mark Laser Marking Machine.jpg

Car Led Mark Laser Marking Machine (7).jpg



Iron Ware Laser Engraving (2).jpg

Iron Ware Laser Engraving (3).jpg

Iron Ware Laser Engraving.jpg





How about the parameters of fiber laser marking machine?

Laser power

10W/20W



Laser Wavelength

1064nm

Light beam quality

<2

Repeating precision

±0.002

Marking range

110x110mm(customize)

Marking depth

0.01~1mm



Marking speed

7000mm/s

Minimum character

0.15mm

Minimum line width

0.01mm

Repeating frequency

20KHz~30KHz

Marking content

Graphics, text, bar codes, two-dimensional code,

 date, batch number, serial number

Graphic format supported

bmp,png,ai,dxf,dst,plt

working voltage

220V±10%/50Hz/4A

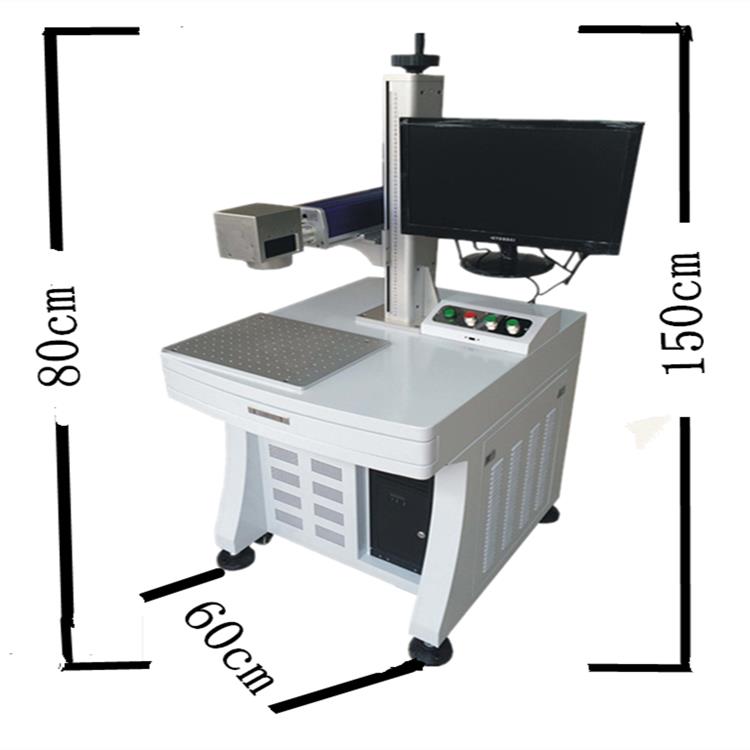

Size

75*65*145cm

Gross Weight

75kg

Control interface

standard USB port



Working environment

Clean and dust free or dust less

Laser module life

100000~200000 hours
