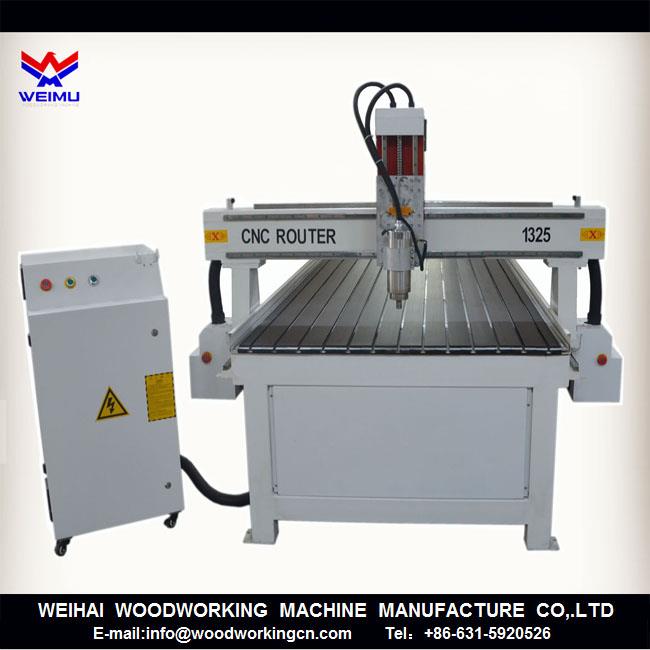

2D/3D Woodworking Machine/4x8 ft CNC Machine/Wood CNC Router 1325

1.Machine Introduction

Woodworking area 1300*2500*200mm, this machine is widely used in furniture industry.

Most of the machine components are high quality, such as 3.0 kw water cooling spindle, 118 big stepper motors, Yako drivers, Taiwan Hiwin linear rails, TBI ball screw, DSP control system and so on.

The optional parts we may offer: Chinese brand or German Becker vacuum pump, dust collector, mist cooling system, rotary axis and so on. Special ordered machines are also welcomed :)

2.Machine Parameters

Model	WM1325
X-Y-Z axis working area	1,300x2,500x200mm
Machine Size	2,150x3,150mm
Resolution	0.0025mm
Z axis height	200mm (300mm, 400mm optional)
X.Y movement	Rack and pinion, gear driver
Z movement	Ball screw driver
Guide	Linear ¢20 square/Taiwan
Max. speed	35,000mm/min
Max. cutting speed	25,000mm/min
Spindle	3.0KW (water cooling)
Spindle speed	24000rpm
Driver motors	Stepper
Inverter power	3.0KW /Fuling
Rotary axis (Optional)	Working length 1500mm, diameter 100mm
Working voltage	AC380V, 50/60HZ, 3 phase
Command code	G code
Computer interface	USB 2.2
Collect	ER25-12.7mm, 6mm, 3.175MM
Software	Type3/Artcam
Controls	DSP A 11(Digital signal Processor)
Packing dimensions	3200x2140x 1960mm, 1350KGS
Equipments included	1).Lubrication system 2). Auto adjusting device 3). T-slot working table
Warranty	1 year for whole machine
Delivery time	15 days
Package type	Plywood

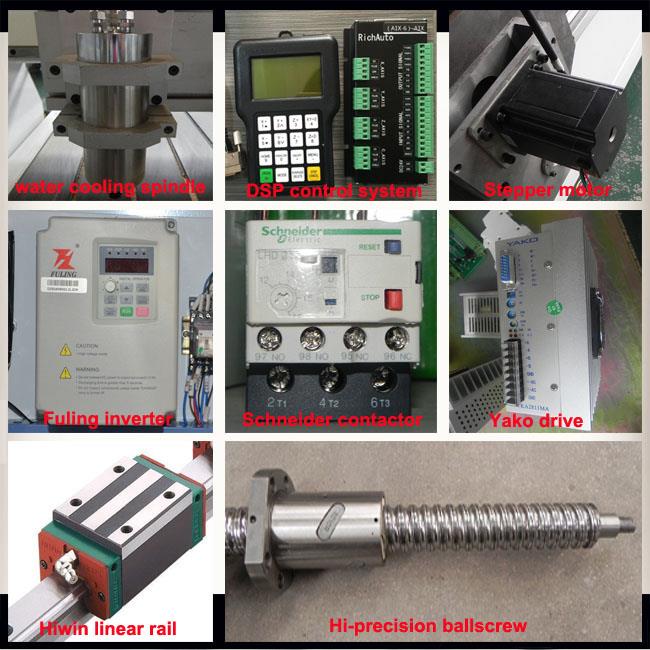

3.Machine Main Parts Photos

1325水冷 components.jpg

4.Woodworking Samples


Our Services

1). The machine is guaranteed for 12 months.
2). Technical support by Teamviewer, QQ remote control, Email, Skype etc.
3). English language operating.

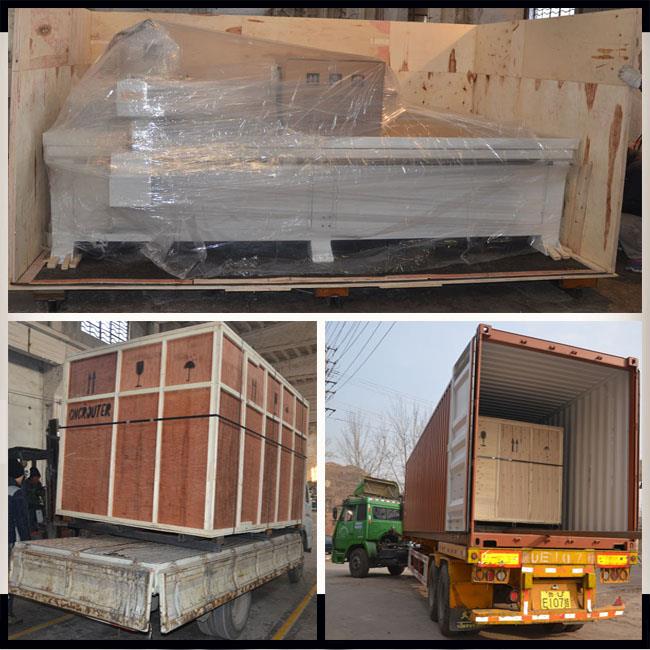

Packaging & Shipping

Package: Plywood wooden case
Delivery Method: Sea shipping with LCL or FCL


FAQ

1.Customer Training:
We will offer English operating manual and installation. Customer is very welcomed to come to our factory for free training. We can also send engineer abroad to give training.

2.Payment Terms:
T/T in advance and Alibaba Trade Assurance.

3.Documents shipment:
Original documents will be sent to customer by TNT/DHL/FEDEX, including Packing List, Commercial Invoice, Sales Confirmation, Bill of Lading and other certificates that required by customer.

4.Contact:
