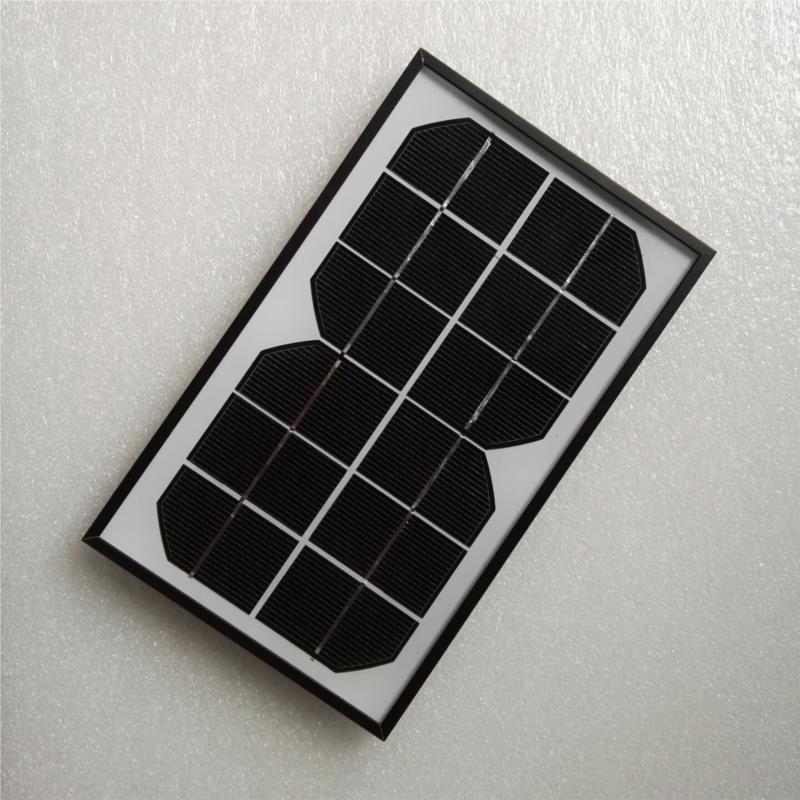

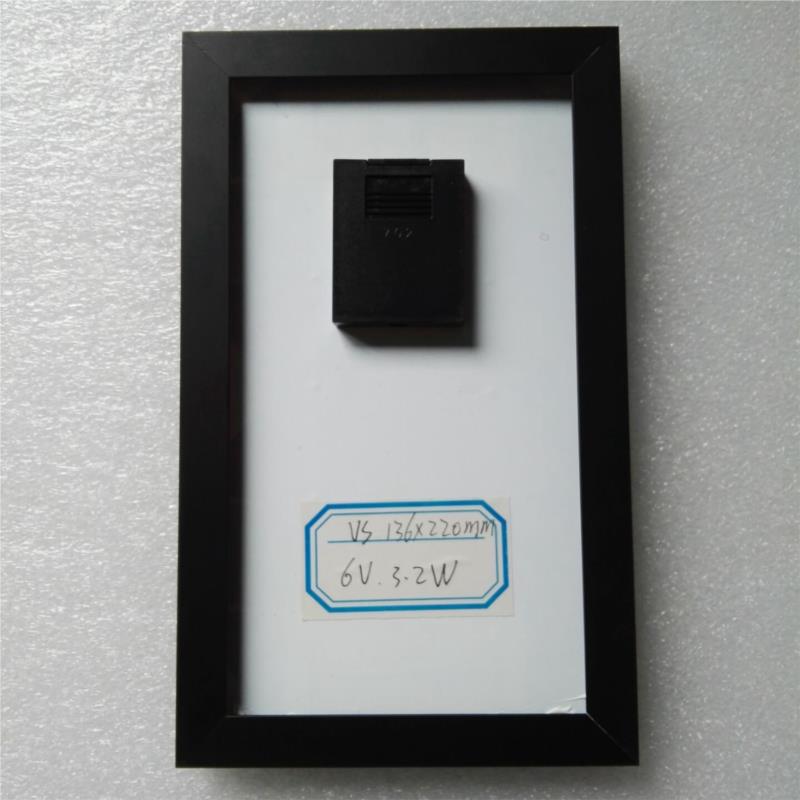

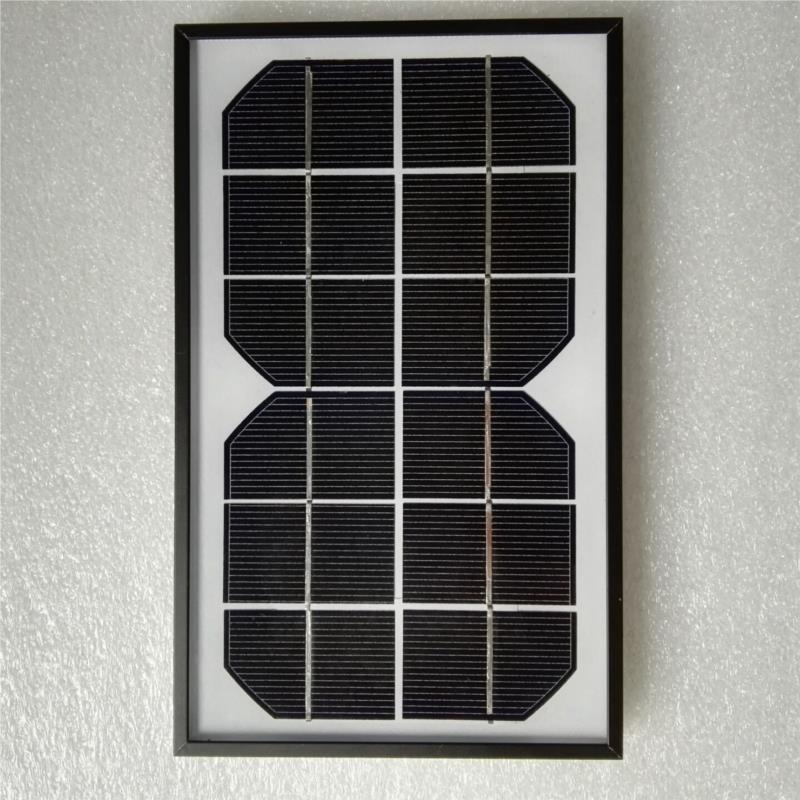

3.2W 6V mono glass laminated solar panels
Price:
Pieces
get latest price
technical parameter | |
Rated power | 3.2W |
working voltage | 5.5V |
Operating current | 0.58A |
Open circuit voltage | 6.05V |
short-circuit current | 0.63A |
Power tolerance | + 3% |
Battery chip | Multi crystal/single crystal |
size | 220*135*20mm |
working temperature | -45 degrees C-80 degrees C |
frame | Optional |
Bracket | Optional |
Junction box | Optional |
Wire and connector | Optional |
Technical Data | |
Rated Max Power(Pm) | 3.2W |
Max Power Voltage(Vpm) | 5.5V |
Max Power Current(Imp) | 0.58A |
Open Circuit Voltage(Voc) | 6.05V |
Short Circuit Current(Isc) | 0.63A |
Power Tolerance | ±3% |
Solar Cell | Poly/Mono |
Dimension | 220*135*50mm |
Working Temperature | -45°C-80°C |
Frame | Optional |
Bracket | Optional |
Junction Box | Optional |
Cables and Connector | Optional |
Vstar Solarlight Co., Ltd.
- Phone: +86 0755-23032261
- Business Type: Manufacturer
- Location: China
- Main Products: Epoxy Solar Panel, PET Lamination Solar Panel, Glass Lamination Solar Panel
- Total Employees:Less than 100 people
- Year Established:2013
- Export Markets:Domestic Market,North America,South America,Asia,Europe
- Total Annual Revenue:US$ 8,000,000
