45W 12V waterproof LED power supply for strip light MR16 lamps

Brand:

Hualiang

Price:

pieces

get latest price

< >

Color:

Size:

Shipping From:

Shipping:

Please select the country you want to ship from

Quantity:

- + piece

Total Price:

Depends on the product properties you select

Buy Now Add to Cart Inquire Now

< >

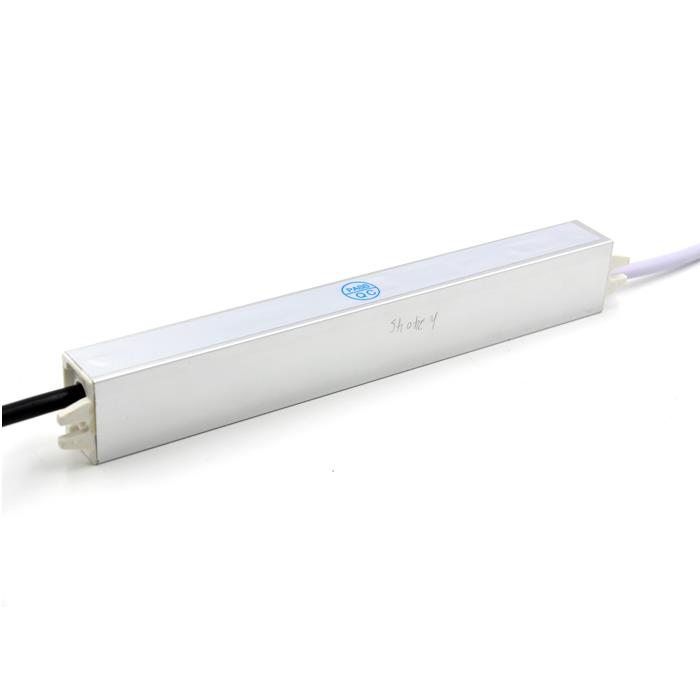

45W 12V LED outdoor lighting LED power supply CE SAA LED driver Mr16 lamp

SPECIFICATION

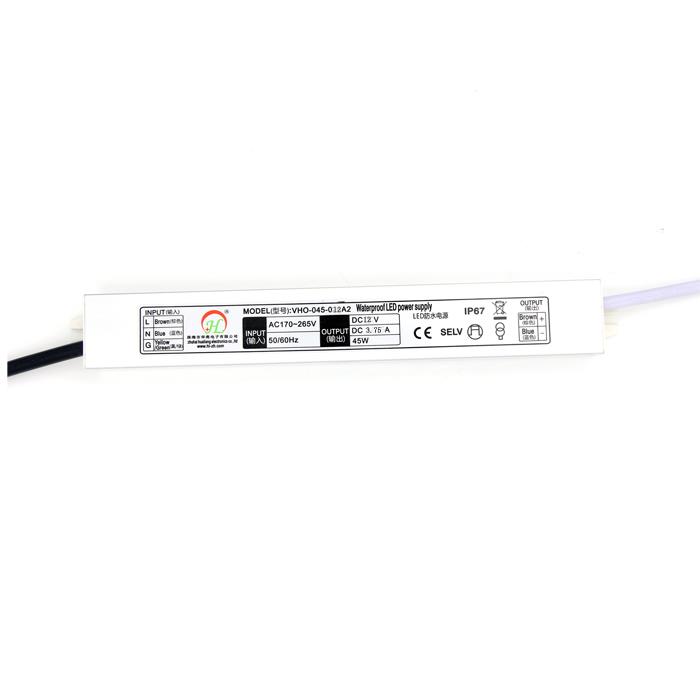

MODEL:		VHO-045-012A2	VHO-045-024A2	VUO-030-005A2
OUTPUT	DC VOLTAGE	12V	24V	5V
	RATED CURRENT	3.3A	1.67A	6A
	CURRENT RANGE	0~3.3A	0~1.67A	0~6A
	RATED POWER	45W	45W	30W
	RIPPLE&NOISE(max)	150mV	150mV	150mV
	VOLTAGE TOLERANCE	±0.5V	±0.5V	±0.5V
	SETUP RISE TIME	80ms/220VAC
	HOLD UP TIME(Typ.)	60ms/220VAC
INPUT	VOLTAGE RANGE	170~265VAC	170~265VAC	100~265VAC
	FREQUENCY RANGE	47~63Hz
	POWER FACTOR(Typ.)	0.6-0.8
	EFFICIENCY(Typ.)	>82%	>82%	75%
	AC CURRENT(Typ.)	0.36A/220VAC	0.36A/220VAC	0.28A/220VAC
	INRUSH CURRENT (Typ.)	COLD START 50A/220VAC
PROTECTION	SHORT CIRCUIT	Protection type:Hiccpe mode,recovers automatically after condition is removed
	OVERLOAD	overload protected@145-160% above peak rating
	OVER TEMPERATURE	Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT	WORKING TEMP.	-30~+50℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20~99% RH non-condensing(Waterproof)
	STORAGE TEMP.,HUMIDITY	-40~+80℃,10~99%RH
SAFETY&EMC	SAFETY STANDARDS	EN61347-1;EN61347-2-13;SELV;IP67
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	EMC TEST STANDARDS	EN55022 Class B;EN61547;EN61000-4-5
		EN61000-3-3
