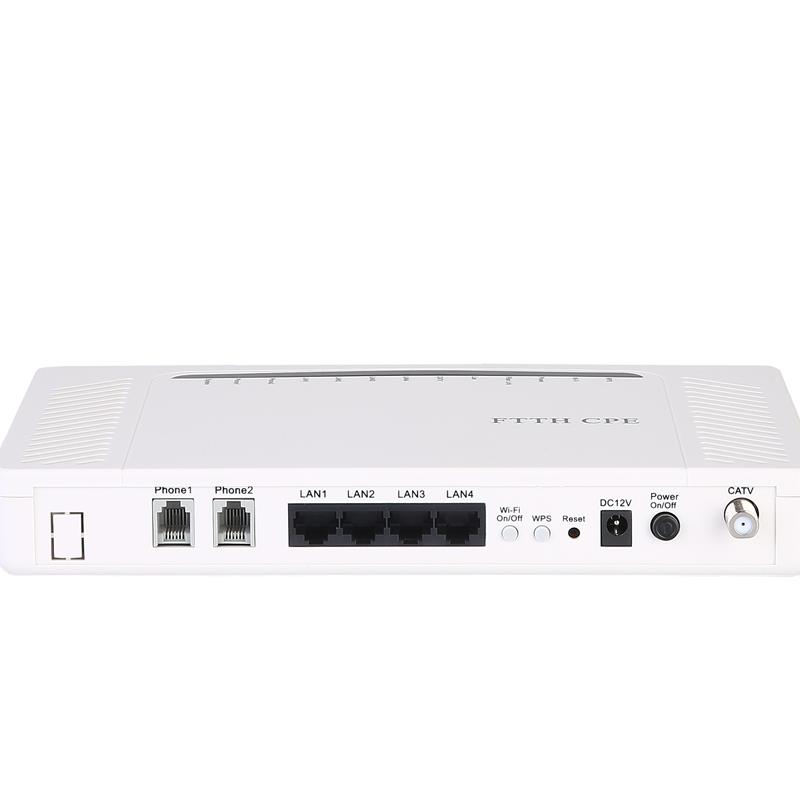

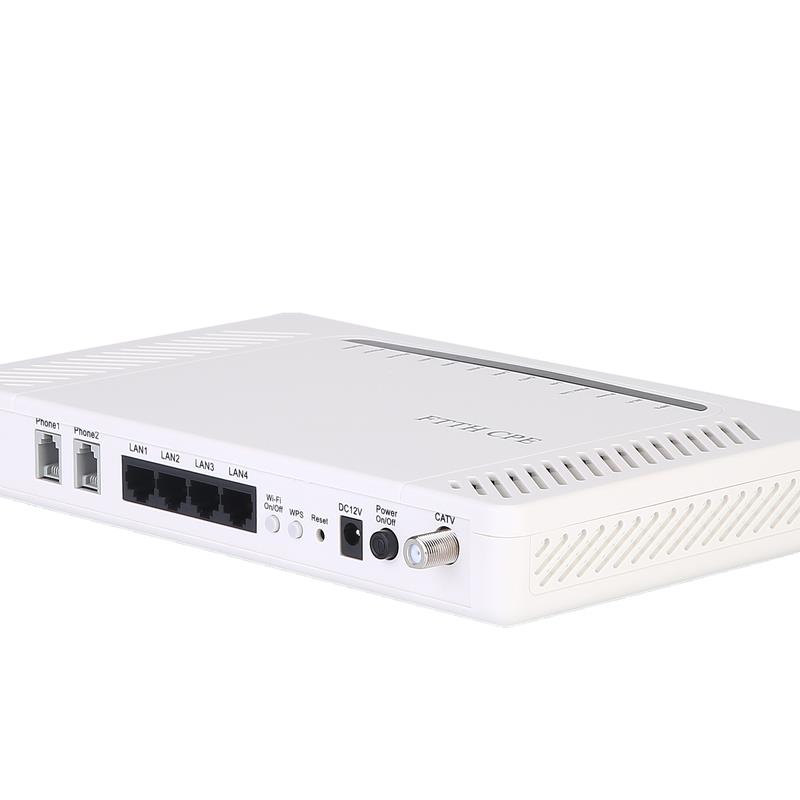

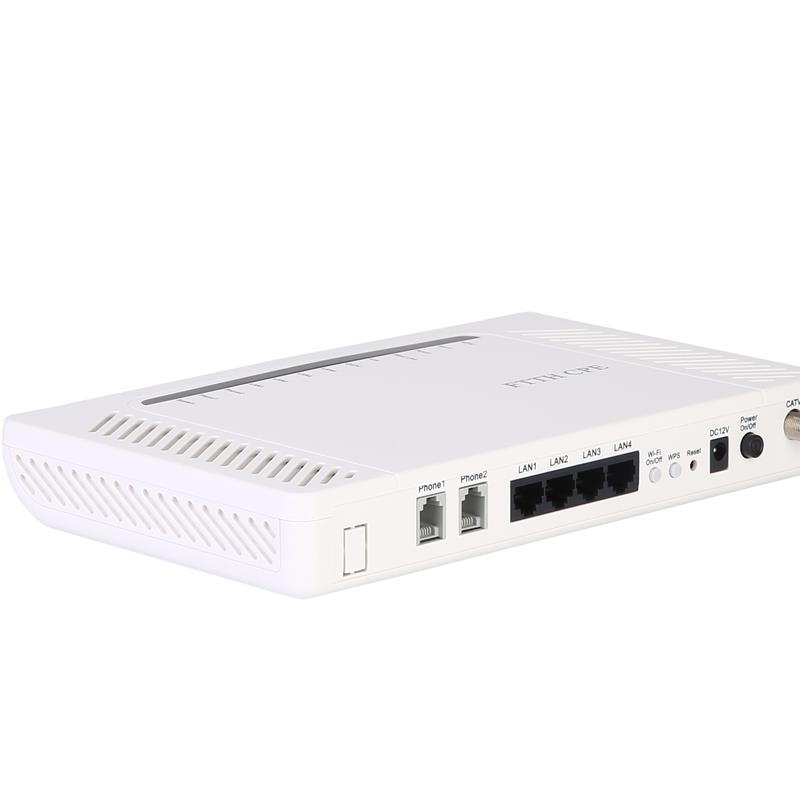

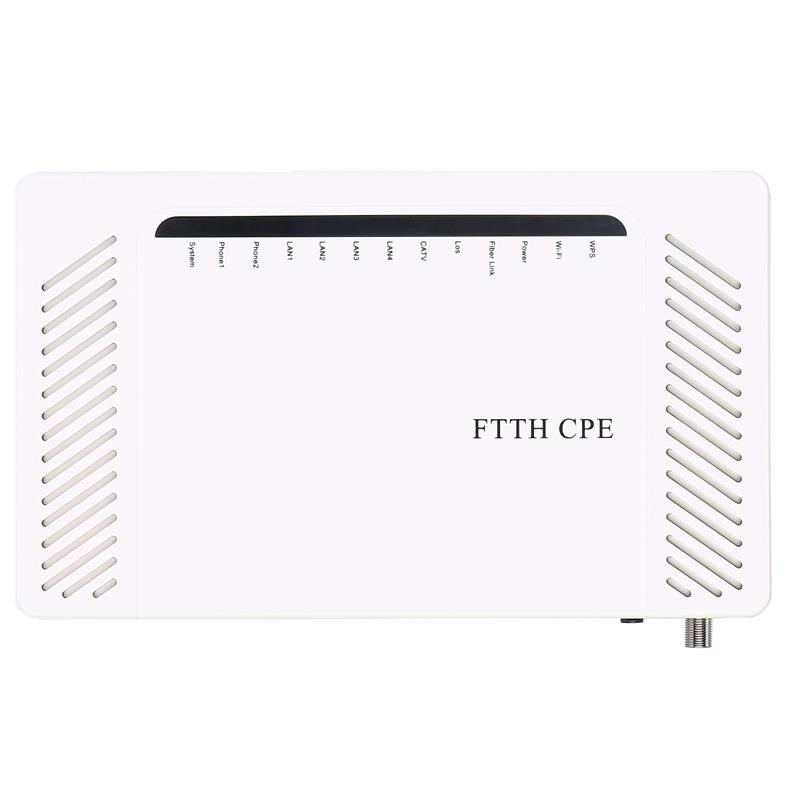

4GE+2POTS+WiFi+CATV RF Port EPON ONU Triple Play Wireless Device

For more information, please feel free to contact me.

SkypeID: sophia.vss | WhatsApp ID: 008613802447798

Choose V-Solution, Choose Professional

 V2800EW terminal devices are designed for fulfilling FTTH and triple play service demand of fixed network operators or cable operators. They were developed by V-Solution independently. These boxes are based on the mature Gigabit EPON technology, which have high ratio of performance to price, and the technology of 802.11n WiFi (2T2R), Layer 2/3, CATV receiver/WDM(V2800W only) and high quality VoIP as well. They are highly reliable and easy to maintain, with guaranteed QoS for different service. And they are fully compliant with technical regulations such as IEEE802.3ah and technical requirement of EPON Equipment (V2.1 and above version) from China Telecom.

Special Features

   ► Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
   ► Integrated OAM remote configuration and maintenance function.
   ► Support rich QinQ VLAN functions and IGMP Snooping multicast features.
   ► Fully compatibility with OLT based on Broadcom/PMC/Cortina chipset.
   ► Support 802.11n WiFi(2T2R) function.
   ► Support NAT, Firewall function.
   ► Support IPv4 and IPv6 dual stack.
   ► Integrated line testing compliant with GR-909 on POTS.


Technical parameters
>

Data Service Functions
    ► Full speed non-blocking switching.
    ► 2K MAC address table.
    ► 64 full range VLAN ID.
    ► Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc.
    ► Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.
    ► Support auto polarity detection of Ethernet ports (AUTO MDIX).
    ► Integrated IEEE802.1p QoS with four level priority queues.
    ► Support IPv4 IGMP snooping and IPv6 MLD snooping.
    ► Support bridge, router and bridge/router mixed mode.

POTS Service Functions
    ► Call protocol: SIP(IMS compatible)/H.248(Megaco)/MGCP optional, seamless compatible with all popular call agent.
    ► Integrate heartbeat function and support active/standby call agent.
    ► Voice coding: ITU-T G.711/G.723.1(5.3K/6.3Kbit/s)/G.729, auto-negotiate with call agent.
    ► Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length.
    ► Support high/low speed fax, bypass fax, and T38 fax.
    ► Support high speed MODEM(56Kbps) dial access.
    ► Support RFC2833 and redundant RFC2833, difference rings, MD5 authentication, call forward, call waiting, hot-line call, alarm clock, and all kinds of value-added voice service.
    ► Multi-party conferencing.
    ► Line testing according to GR-909.
    ► IP address assignment: dynamic PPPoE/DHCP Client and static IP.
    ► Support WEB, CLI,IVR,TR069.
    ► Integrated OAM, XML, DHCP option 66 & 67 for auto configuration and firmware upgrade.
    ► Call loss less than 0.01%.

WIFI Service Functions
    ► Integrated 802.11b/g/n, 300Mbps, 2T2R.
    ► Support 128 connections.
    ► Support WEP and WPA/WPA2 security protocols.

CATV Service Functions
    ► RF frequency: 45~875MHz.
    ► Turn on/off RF output remotely.
    ► RF level can be showed on PC Web real time.
