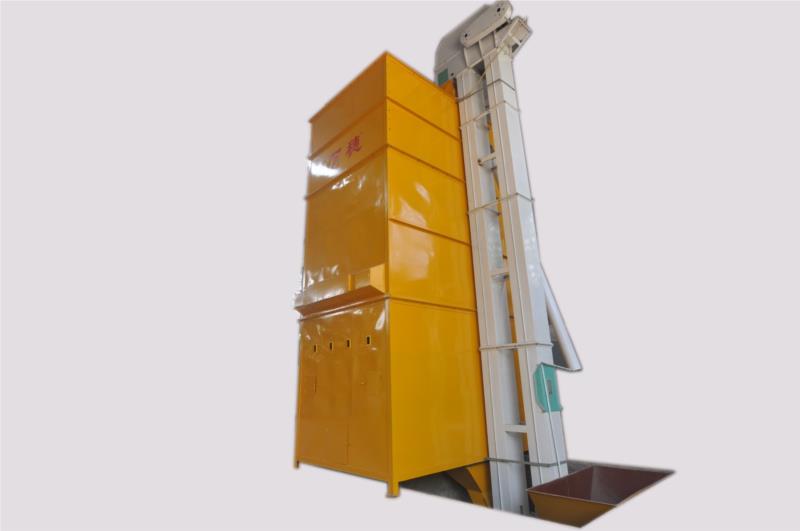

5H-10 grain dryer

First, product features:

1、干燥速度快、范围广。降水幅度（稻谷）≥2.5%/h。利用低温气流干燥，顺流、逆流、混流烘干，保证每一粒粮食被热风所包围，在保证粮食品质不受破坏前提下，干燥速度是同行（0.5%/h）的4倍，“万穗”5H-1型相当于同类一台8～10吨产量的粮食烘干机。也是目前国内降水幅度最快的低温干燥设备之一。

1, fast drying speed, a wide range of. The precipitation rate (rice) is more than 2.5%/h. Using low temperature air flow drying, concurrent flow, countercurrent flow, mixed flow drying to ensure every grain of grain is surrounded by hot air, to ensure food quality failure under the premise, the drying rate is 4 times the counterparts (0.5%/h), "Wan Sui" 5H-1 correspond to similar a 8 ~ 10 tons of yield of grain dryer. Is one of the fastest precipitation in China.

干燥范围广。不只是能烘粮食类颗粒作物，还能低温烘干油菜籽等油料作物。降水幅度（油菜籽）≥1.9%/h。填补了国内没有既能烘粮食又能烘油菜籽的低温干燥技术空白。

Wide drying range. Not only can bake food grain crops, but also low temperature drying rapeseed oil crops. The precipitation rate (rapeseed) = 1.9%/h. Can not fill the domestic food baking and low temperature drying technology of blank drying of rapeseed.

2、粮食干燥均匀、破碎率低。利用气流的逆流、混流循环烘干。速度快，混合均匀，不均匀度低（＜1%）；烘干塔内粮食自然下料，无绞笼输送，塑料畚斗慢速提升不易碎料，破碎率低＜0.5%，干燥后粮食品质好，保持粮食原貌色泽和营养成份不变，碎米少，不爆腰。

2, grain dry uniform, low broken rate. By using the counter flow and mixed flow drying. Fast, evenly mixed, uneven low (< 1%); the drying tower natural food material, no wring cage conveying, plastic bucket lifted slowly not brittle material, broken rate is low (< 0.5%, dry good quality grain, grain appearance color and nutrition ingredients remain unchanged, little broken, does not explode the waist.

3、自动除杂、除虫。随物料输送过程中经锥形分料器除去灰杂及害虫。

3, automatic removal of miscellaneous, pest control. With the material conveying process through a conical distributor to remove sundries and pests.

4、降温快，有利储存。干燥后的粮食快速降温出仓，便于保存。

4, cooling fast, favorable storage. Quick cooling after the drying of grain storage, easy to save.

5、操作简便、易于掌握、运行费用低。自动控温，自动循环，作业费用接近太阳晾晒所需费用（2.6分/kg）。

5, easy to operate, easy to grasp, low operating costs. Automatic temperature control, automatic cycle, cost cost close to the sun drying (2.6 /kg).

二、粮食烘干机主要技术参数（以说明书为准）：

Two, the main technical parameters of grain dryer (in the specification):

参数 型号 5H-1A 5H-1 5H-5 5H-10 5H-20 5H-30

Parameter model 5H-1 5H-5 5H-10 5H-20 5H-30 5H-1A

结构形式 批式循环

Structure type batch cycle

燃烧机型式 热风炉

Combustion type hot blast stove

干燥不均匀度% ≤1

Drying Uniformity% less than or equal to 1

粮食最高温度℃ ≤55

The highest grain temperature is less than or equal to 55

降水幅度（稻谷）%/h 2.5 2.0 1.5

Precipitation range (paddy)%/h 2 1.5 2.5

每批容量（稻谷）t 0.3 2.1 5 10 20 30

Per batch capacity (paddy) t 2.15102030 0.3

日干燥能力（稻谷）t/d 1.5～2 8～10 10～15 11～20 20～40 30～60

Daily drying capacity (paddy) t/d 1.5 ~ 28 ~ 1010 ~ 1511 ~ 2020 ~ 4030 ~ 60

总功率kw 3.06 6 6.02 9.15 11

Total power kw 6.02 9.1511 3.066

额定电压v 220 380

Rated voltage V 220380

整机质量t 0.45 0.9 2.5 4.9 5.4 5.9

The whole machine quality t 0.9 2.5 4.9 5.4 5.9 0.45

外形尺寸m 1.6×1.3×3.4 4×2.5×5.2 3.5×1.7×7.2 7.1×3.6×7.2 7×3.6×9.2 7×3.6×11.2

M x 1.6 x 1.3 x 5.2 x 3.44 x 2.5 x 3.5 x 7.1 x 7.2 x 3.6 x 7.27 x 3.6 x 9.27 x x 3.6 x 1.7 x 11.2

燃料消耗量（柴）kg/h ≤15 ≤25 ≤40 ≤30 ≤35 ≤40

Fuel consumption (diesel) kg/h = 15 = 25 = 40 = 30 = 35 = 40

适合种植面积（稻谷）亩 ＜100 200～400 500～900 1000～2000 3000 4000

Suitable for planting area (paddy) mu < 100200 ~ 400500 ~ 9001000 ~ 200030004000

燃烧物料 1、生物质燃料：废木柴、树枝、树叶、木屑、稻壳、秸秆、菌渣等。

Burning material 1, biomass fuel: waste wood, branches, leaves, sawdust, rice husk, straw, bacteria residue, etc..

2、煤；3、天然气或液化气（选配燃烧机）；4、柴油（选配燃烧机）。

2, coal; 3, natural gas or liquefied petroleum gas (optional burning machine); 4, diesel (optional burning machine).
