    60W 12V constant voltage LED power supply with CE RoHs SAA

    Hualiang
    Price:
    pieces
    get latest price

    < >
    Please select a Color
    Please select a Size
    Please select a Ships From
    Please select the country you want to ship from
    Please select the country you want to ship from
    - + piece
    This product can't be shipped to the selected region by express delivery.If you want to buy this product,you can click inquire now to contact seller
    Depends on the product properties you select
    Buy Now Add to Cart Inquire Now

    60W 12V LED outdoor lighting LED power supply CE SAA LED driver for LED strip light

    SPECIFICATION
    MODEL:VHO-060-012A5VHO-060-024A5
    OUTPUTDC VOLTAGE12V24V
    RATED CURRENT0.5A0.25A
    CURRENT RANGE0~0.5A0~0.25A
    RATED POWER60W60W
    RIPPLE&NOISE(max)150mV150mV
    VOLTAGE TOLERANCE±0.5V±0.5V
    SETUP RISE TIME80ms/220VAC
    HOLD UP TIME(Typ.)60ms/220VAC
    INPUTVOLTAGE RANGE170-265VAC
    FREQUENCY RANGE47~63Hz
    POWER FACTOR(Typ.)0.5-0.7
    EFFICIENCY(Typ.)>82%
    AC CURRENT(Typ.)0.15A/220VAC
    INRUSH CURRENT (Typ.)COLD START 50A/220VAC
    PROTECTIONSHORT CIRCUITProtection type:Hiccpe mode,recovers automatically   after condition is removed
    OVERLOADoverload protected@145-160% above peak rating
    OVER TEMPERATUREProtection type:Shut down o/p voltage,re-power on to   removed
    ENVIRONMENTWORKING TEMP.-30~+50℃ (Refer to   output load derating curve)
    WORKING HUMIDITY20~99% RH non-condensing(Waterproof)
    STORAGE TEMP.,HUMIDITY-40~+80℃,10~99%RH
    SAFETY&EMCSAFETY STANDARDSEN61347-1;EN61347-2-13;SELV;IP67
    WITHSTAND VOLTAGEI/P-O/P:3.75KVAC    I/P-FG:2KVAC O/P-FG:0.5KVAC
    EMC TEST STANDARDSEN55022 Class B;EN61547;EN61000-4-5
    EN61000-3-3

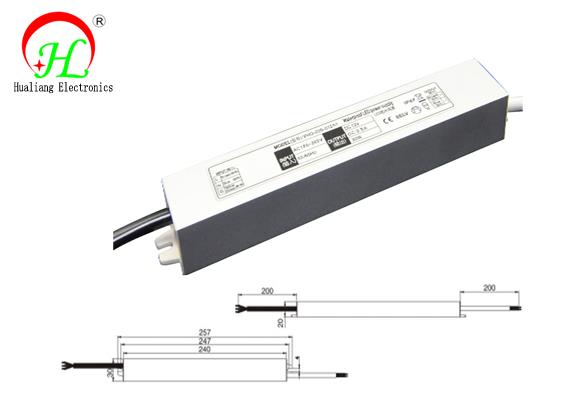

    12V24V led driver led transformer led power supply（A5）.png





    12V24V led driver led transformer led power supply Certificate.png





    ZHUHAI HENGQIN DISTRICT HUAWEI NEW ENERGYCO.,LTD

    • Phone: +86 0756-3912110
    • Business Type: Manufacturer
    • Location: China
    • Main Products: LED power supply, LED driver, LED transformer
    • Total Employees:100-500 people
    • Year Established:2008
    • Export Markets:Domestic Market,South America,Asia,Europe,Oceania
    • Total Annual Revenue:
