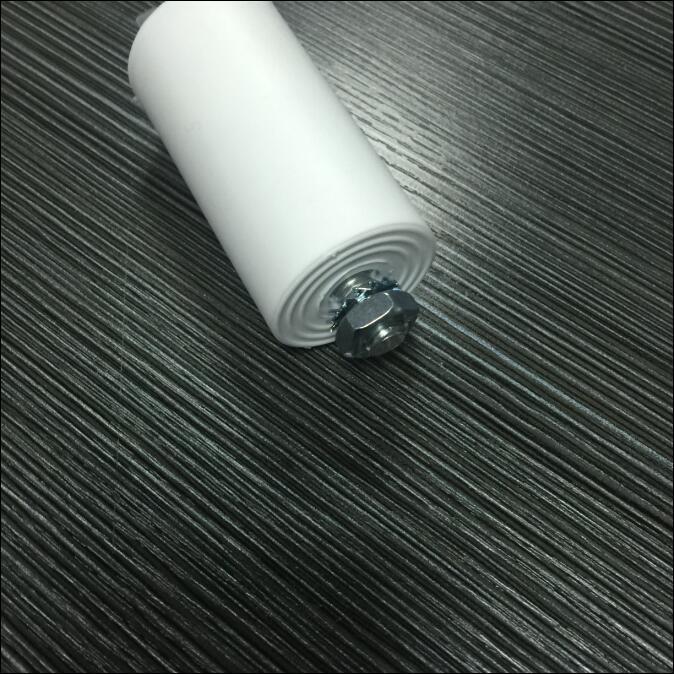

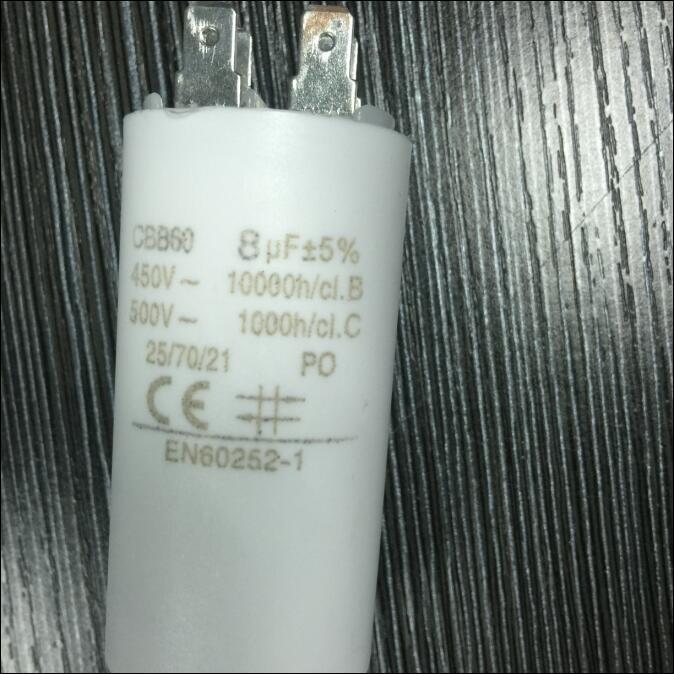

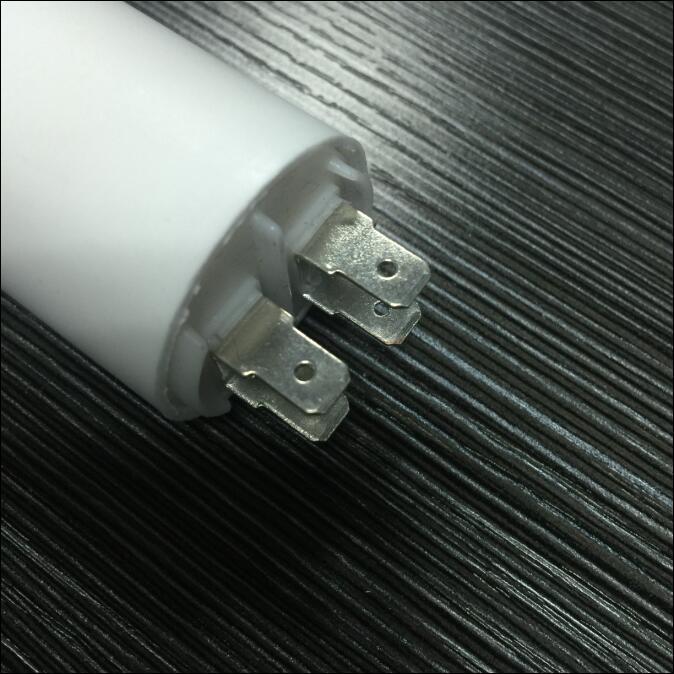

CBB60 series AC motor capacitor 8uf 450V DOUBLE FASTEN -ON ,Base bolt

1. General description:

Broadly applied to running of single-phase AC motors at 50Hz(60Hz)frequency for

washedrs and high efficiency compressors of refrigerators etc.

2.Features:

The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized pp

film as dieledtrie, its components are assembled in flame-retardant ABS or PBT ey

lindrical crust, impregnated with flame-retardant epoxy resin,It has high reliability and

stability.

3.Technical parameter

Standard:GB3667-1997,same as IEC60252:193

Climate type:40/70/21, 40/85/21

Capacitance tolerance: ±5%

Dielectric dissipation factor: tg&≤0.002(50Hz~100Hz)

Life expectancy:3000h(Class C)or10000h(Class B)

4.Service condition

Altitude:≤2000m

Residual voltage in application:Less than 10% of rated voltage

Allowed maximum voltage: Less than 1.1 times of rated voltage

Permissible maximum current: Less than 1.3 times of rated current

Techinnical Parameters:

Outline size

TUV,CE MARK
