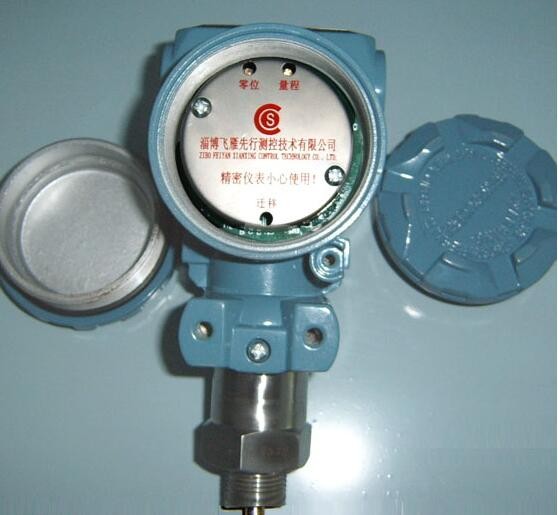

CS20FB/CB pressure transmitter series

Measuring range

CS20FB
Gauge pressure:0-5kPa~3.5MPa
Absolute pressure:0-20kPa~120MPa
Seal gauge pressure:0-7MPa~120MPa                            Negative pressure:-100kPa~700kPa

Negative pressure:-100kPa~700kPa

CS20CB

Gauge pressure:0-1kPa~40Mpa

Absolute pressure:0-20kPa~40Mpa

Negative pressure:-1kPa~1kPa ; -100kPa~6MPa
Technical Parameters
●Measuring range:0-5KPa-120MPa
●Output signal : 4-20mA,1-5V,0-5V,0-10mA
●Precision level: 0.5-0.1%
●Power supply:15-28VDC
●Working temperature:-30～80℃
Features:

reliable, stable, movable zero position

adjustable resistance

ship-born anti-explosion application
Application:

pipe pressure

liquid level in tank

pump pressure control

vacuum equipment
Specifications of CS20FB/CB pressure transmitter series

CS20FB/CB -

	Code	CS20FB CS20CB
a	A	0 to 5kPa ~ 20kPa
	B	0 to 20kPa ~ 70kPa 0 to 10kPa ~ 70kPa
	C	0 to 70kPa ~ 350kPa 0 to 70kPa ~ 350kPa
	D	0 to 200kPa ~ 700kPa 0 to 200kPa ~ 700kPa
	E	0 to 0.7MPa ~ 3.5Mpa 0 to 0.7MPa ~ 3.5Mpa
	F	0 to 2MPa ~ 7Mpa 0 to 2MPa ~ 7MPa
	G	0 to 7MPa ~ 35Mpa 0 to 7MPa ~ 40MPa
	H	0 to 20MPa ~ 100MPa

	Code	Accuracy Class
b	I	0.1% Not applicable
	II	0.3% Not applicable
	III	0.5% 0.5%

	Code	Output Signal
c	E	4 to 20 mA, DC dual wire
	K1	0 to 10 mA, DC
	K2	0 to 5 VDC
	K3	1 to 5 VDC

	Code	Pressure Connection
d	R	Standard M20x1.5 outer thread
	O	Optional, customer specified

	Code	Electrical Connection
g1	M1	Linear index
g2	M3	3-1/2LD digital display
g3	d	EX Explosion-proof type
g4	I	Intrinsic safety
g5	Z	Adjustable damping
G6	Q	Drift
G7	T	Vessel use
G8	A	Absolute pressure measuring
G9	F	Load pressure measuring
*G10*	S	Radiator and process connector
*G11*	Y	User’s agreement
