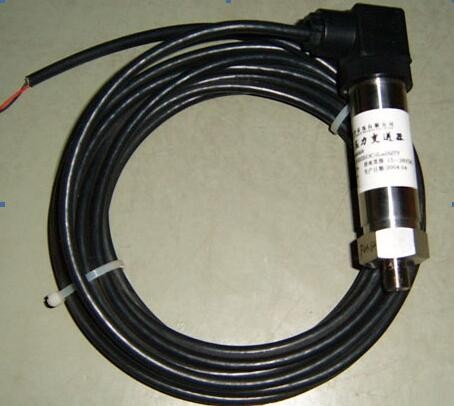

    CS20FU pressure transmitter series

    The Feiyan CS20 series of pressure transducers are designed for environmentally demanding applications requiring the superior performance offered by ceramic capacitive and silicon technology.

    measuring range

    CS20FU
    Gage pressure:0-5kPa~3.5MPa
    Absolute pressure:0-20kPa~120MPa

    Gage pressure:0-7MPa~120MPa

    Negative pressure:-100kPa~700kPa

    Specifications:

    ● Supply voltage: 24 VDC

    ● Over voltage protection: 16.5 VDC

    ● Reverse voltage protection: - 14VDC

    ● Random vibration (50-2000 Hz): ____ gm

    Features:

    ● stainless steel shell for anticorrosion

    ● Anti-shock

    ● reversed polarity over-voltage protection

    Application:

    ● engine testing

    ● pipe pressure

    ● liquid level in tank

    ● pump pressure control

    Specifications of CS20FU pressure transmitter series

    CS20FU

    a


    b


    c


    d


    e

    e

    f

    f

    g1

    g2

    g3

    g4




    Code

    CS20FU

    a

    A

    0 to 5kPa ~   20kPa


    B

    0 to 20kPa ~   70kPa


    C

    0 to 70kPa ~ 350kPa


    D

    0 to 200kPa ~   700kPa


    E

    0 to 700kPa ~   3.5Mpa


    F

    0 to 2MPa ~ 7Mpa


    G

    0 to 7MPa ~   35Mpa


    H

    0 to 20MPa ~   120MPa




    Code

    Accuracy Class

    b

    I

    0.1%


    II

    0.3%


    III

    0.5%




    Code

    Output Signal

    c

    E

    4 to 20 mA, DC   dual wire


    K1

    0 to 10 mA, DC


    K2

    0 to 5 VDC


    K3

    1 to 5 VDC




    Code

    Pressure Connection

    d

    R

    Standard M20x1.5   outer thread


    O

    Optional,   customer specified




    Code

    Electrical Connection

    e

    C1

    Cable lead, 1m,   IP65 environmental protection rating


    C3

    GDM Connector,   IP65 environmental protection rating

    f

    Lm

    Cable length (m)




    Code

    Options

    g1

    I

    Intrinsic safety

    g2

    T

    Vessel use

    g3

    A

    Absolute   pressure measuring

    g4

    F

    Load pressure   measuring

    g5

    S

    Radiator and   process connector

    g6

    V

    Imported circuit

    g7

    Y

    User’s agreement




    ca


    Zibo Feiyan Xianxing Control Technology Co., Ltd.

    • Phone: +86 0533-3818765
    • Business Type: Manufacturer
    • Location: China
    • Main Products: digital temperature / pressure meter, digital temperature / pressure switch, temperature / pressure sensor, temperature / pressure / liquid level transmitter and control instrument.
    • Total Employees:Less than 100 people
    • Year Established:1998
    • Export Markets:Domestic Market,South America,Europe,Africa
    • Total Annual Revenue:
