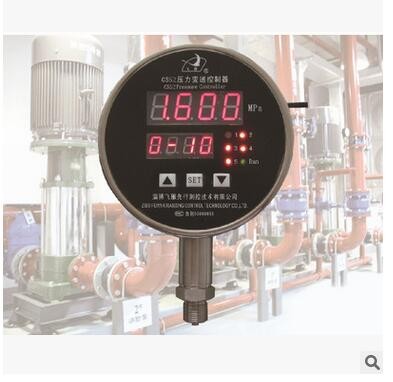

CS52 series pressure change controller

Brand:

Price:

Pieces

get latest price

< >

Color:

default

Size:

default

Shipping From:

China
Russia

Shipping:

Please select the country you want to ship from

Quantity:

- + Piece

Total Price:

Depends on the product properties you select

Buy Now Add to Cart Inquire Now

< >

Product Details
Supplier Detail

CS52 series pressure controller is based on the Feiyanxianhang hydropower station, pump running situations such as application specific requirements of the development, set pressure measurement, transmission output, display, alarm and control functions of the pressure measurement and control instrument. This product adopts the intelligent circuit based on SCM, through numerical calcu lation, correction and peripheral operation programming, can be directly installed in the control site, not only can complete the zero value, full scale value, the alarm value and other parameters of the operation through the button, can also be set to achieve remote network connection, signal transmission and transmitter parameters through RS-485 communication interface.

performance parameter

range ability	0-10KPa～100MPa
accuracy	0.25%、0.5%
Analog output	Two wire system 4～20mA DC
communication interface	RS-485
Relay output	5 way, normally open and normally closed
Contact life of relay	＞100,000 second
supply voltage	Main power supply 220V AC, auxiliary power 24V DC
Long-term tability	≤ 0.5%FS/ year
Display resolution	0.001、0.01、0.1and1
Temperature influence	Less than 0.5%FS/10 degrees centigrade
Power waste	≤3W
Overload capacity	3 times full scale

Environmental and mechanical parameters

Medium temperature	0℃～82℃
ambient emperature	-20℃～70℃
Storage emperature	-40℃～85℃
Pressure connection	M20 * 1.5 external thread
Electrical connection	Connection terminal
Pressure medium	A non-conductive gas or liquid
Shell material	Stainless steel 304

Selection Guide

CS52-	1	2	3	4	5	6	7	8	Pressure variable controller

	A	0-10KPa~35KPa
	B	0-35KPa~3.5MPa
	C	0-3.5MPa~35MPa
	D	0-35MPa~100MPa
		2	accuracy
		II	0.25%
		III	0.5%
			3	Pressure interface connection mode
			R	*Standard M20 1.5 external thread**

				4	Analog signal output type
				E	4~20mA DC
					5	Relay output quantity
					JN	N Road relay output（N=1，2，3，4，5）
						6	Communication interface mode
						K4	RS-485
							7	Power supply
							N	Main power 220V AC、Auxiliary power 24VDC（4~20mA use）
								8	Pressure type
								G	Gauge pressure
								A	Absolute pressure measurement

CS52- C III R E J5 K4 N G
