Economical style luxury price of frameless sliding windows

System features for Finzone09 frameless window

Popular system:Finzone09 used for most kinds of balcony shape,  specially for flat balcony.

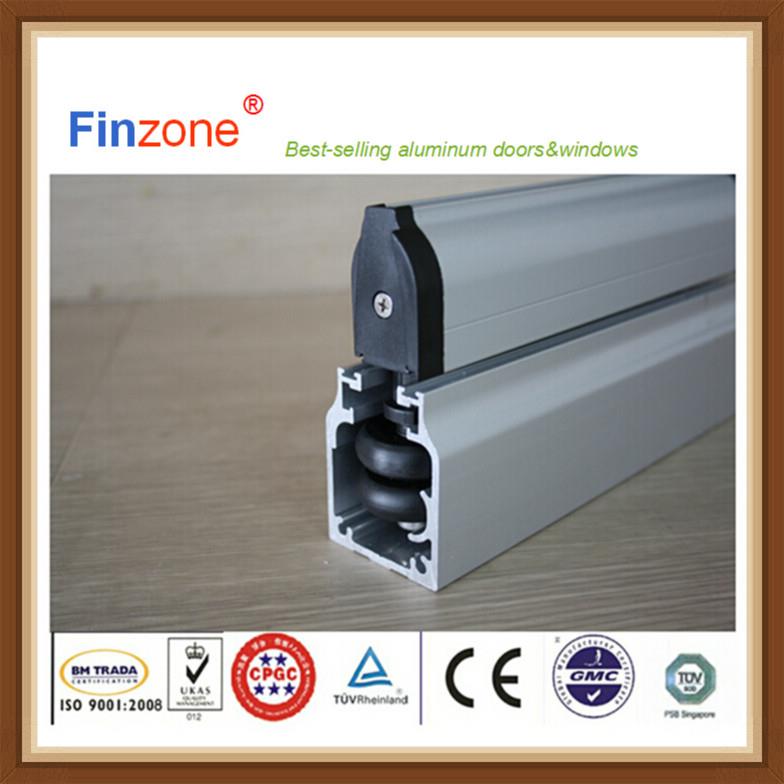

Stronger profiles:The upper track is 3mm thickness and importance of the point is 5mm thick; the width of glass profile is 29mm and the height is 41mm, the importance of the point is 2.5mm thick.

Glass:Use 8mm tempered glass and 5+4 laminated glass.

Big panels:The max width for glass panel is 650mm and the height is 2300mm.

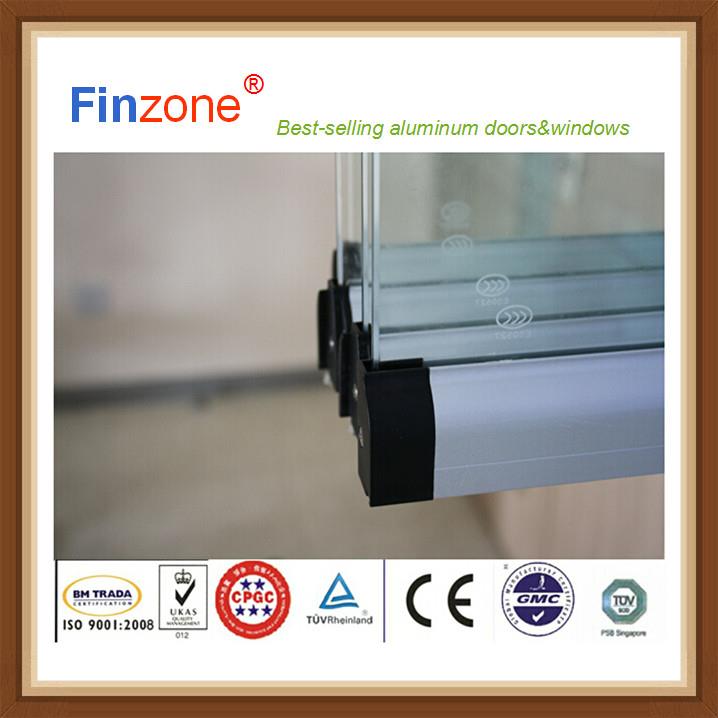

Protection cap: Apply nylon protection cap on glass profiles to avoid hurting. The protection is laddy-like and the sealing is better for glass panels.

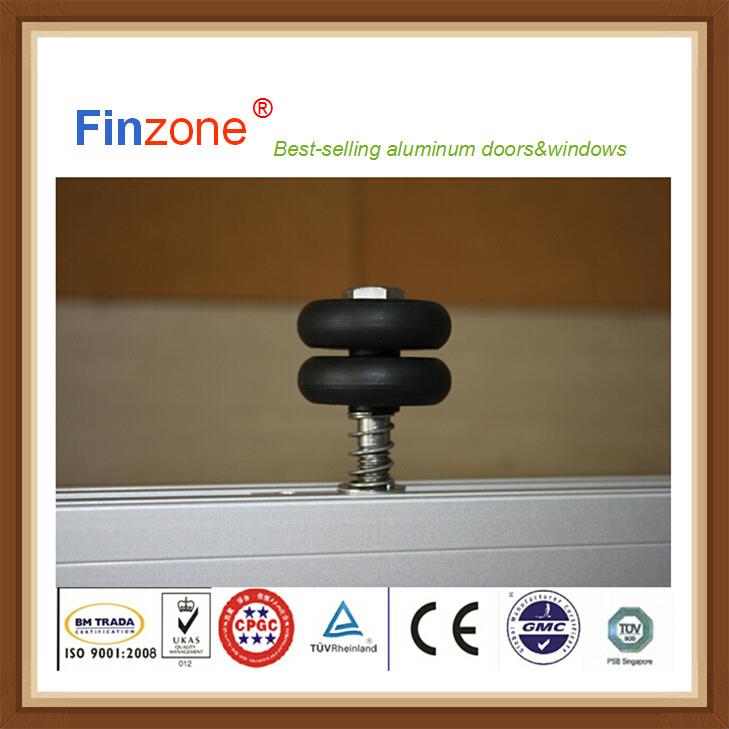

Better Rollers:Use big bearing wheels and slide smoothly. The width of one bearing wheel is 36mm and the height is 11mm.

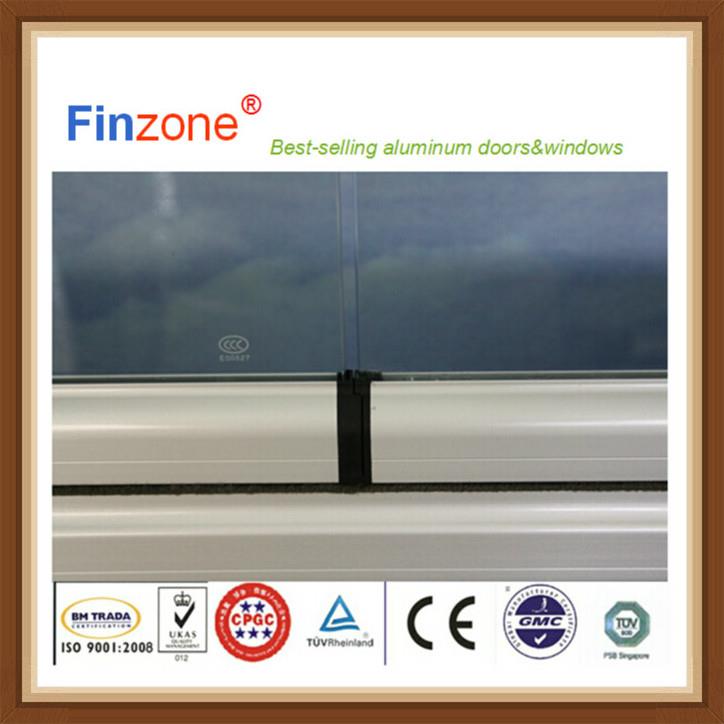

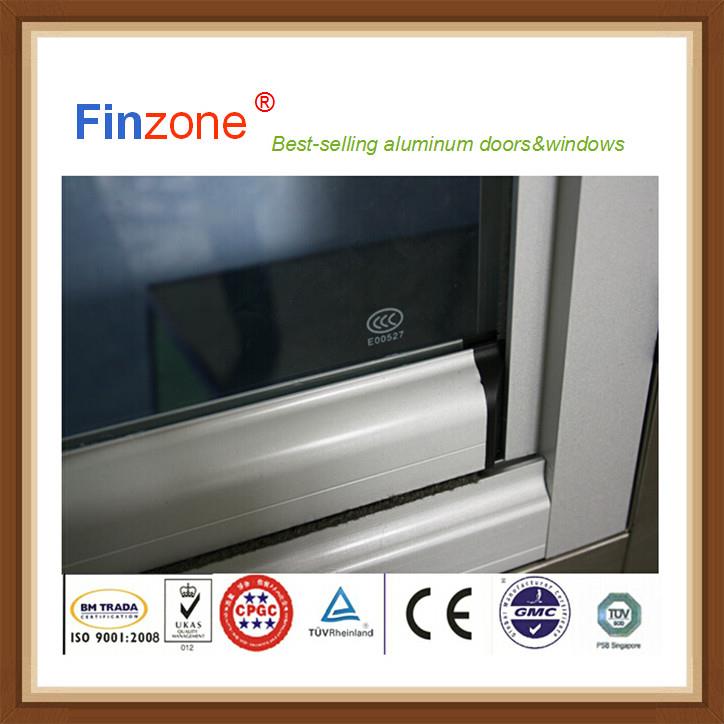

Best sealing:There is no gap between track profiles and glass profiles. There is no gap between the first and last glass panels with side profiles.

Hinge axles:Use SS304 for hinge axles so that can stand big weight and avoid the glass panels falling down.

No rivets: Apply specially glue to connect glass and glass profile, there is no any rivets and holes in glass profile.

Connection hardware:Use SS304 to connect the track profiles to ensure the stablity of connection.

Profile material:Used Aluminum alloy 6063T5 material for profiles, the surfaces are treated with static electroplating spray.

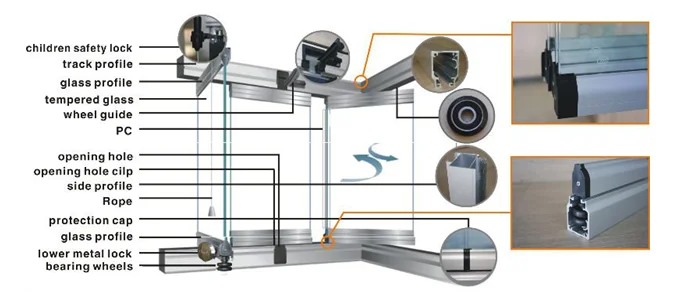

Structure drawing for Finzone09 frameless window

Mechanical properties for Finzone09 frameless window

The guide profiles are made in compliance with 6063T5 as special profiles

Tensile strength of the frame from the guide profile: 860 kg

Guide profile deflection 80 kg / 3.8 m:

Perpendicular: 3.5 cm

Horizontal: 7.5 cm

No permanent changes in shape

Each glass element is supported by four 8 mm hinge axles, featuring a total of 10 horizontal wheels

Durability of Nylon bearing wheel in random profile loading: undamaged over 600 kg Gearing heat resistance (POM): approx +90 Degree C

Frost resistance: over -30 Degree C

All metal parts are non-corrodible: only aluminum and stainless steel

Installation on concrete and brick surface is by 8 mm stainless steel bolts and brass anchor.

Sound insulation for Finzone09 frameless window

For 100 Hz Reduction 6.7 dB

For 2400 Hz Reduction 13.5 dB

Measured according to international standards ISO 140-5 & ISO 717-1

Wind pressure for Finzone09 frameless window

Finzone09 frameless window can support the wind speed according to the panel height and glass thickness

Function for Finzone09 frameless window's shapes

That's not enough to introduce our product,because we also want to show you how we can design frameless window.Simple style and streamlined appearance,shows the perfect combination of technology and style.

Color choice for Finzone09 frameless window
