H.264 Ip Camera Support 22X Zooming with Auto-iris Zoom lens/IR night vision 100m F-M105

Features

Superiority

Support monitor via computer and most of intelligent cellphone on the market(such as Android ,Iphone cellphon)

mobile software

Provide special software in the iPhone or android mobile phone

DDNS（free）

Built in free DDNS system,like http://demo.easyn.hk, 'demo' is serial code

CMS software

EasyN multi-window mangement software

System security

Supports three-level account, password, user multi-level authority management

Audio dominance

Two-way audio monitoring

CPU

Operation system

Embedded Linux OS

Microcomputer processor

32Bit RSIC Embedded Processor

Network

Network interface

RJ-45   10/100Mb   self-adaptable Ethernet slot

Protocol

Support TCP/IP、HTTP、ICMP、DHCP、FTP、SMTP、PPPoE etc.

Wireless

WIFI,802.11 b/g

IP mode

Dynamic IP address, static IP address, PPPOE

Online visitor

Streaming in (640 * 480)directly connected , Support 4 visitors at the same time

Streaming in(320*240)directly connected , Support 4 visitors at the same time

Streaming in (160* 120)directly connected , Support 4 visitors at the same time

Video

Compression format

Motion-JPEG

Signal system

CMOS  300,000  pixel

Frame rate

1-25fps

Resolution

VGA(640*480),QVGA(320*240) ,QQVGA(160*120)

Image adjustment

Brightness, contrast.

WB, BLC

Auto

LUX

0.3LUX/F1.2

SNR

>48dB

Lens

Standard: 6mm

Audio

Compression format

G.711/G.726

Input

1 channel linear/microphone input

Output

1 channel linear output

PTZ

Motor

No

Rotation angle

No

Preset

No

PTZ Protocol

No

Nightvision

Filter switch

Can auto-switch automatically, without color cast

Nightvision

30Φ5 LED lights      IR distance: 25m

Alarm

Input/output

Motion detection/FTP server , email notification, HTTP

Alarm detection

Motion detection;Detection sensitivity Settings

Detection area

One

Alarm notification

IO linkage;FTP server , email notification, HTTP

Others

Shape material

Waterproof shooting type, aluminum alloy material

environment

outdoor

Power supply

12V 2A

Operating temperature

-10~50°C

Operating humidity

10%~90%RH

Dimension

Item size：183mm x 75mm x 72mm  (L*W*H)

Package size：232mm x 170mm x 105mm     (L*W*H)

Weight

Item weight：786g （Note:for real products ）

Package weight：1212g

Accessories

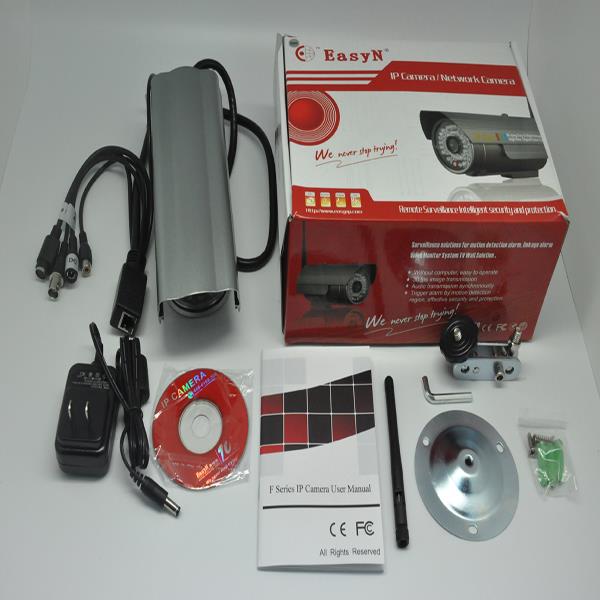

Power adapter,CD,manual,warranty card,srews ,bracket ,antenna

System

System requirement

Microsoft Win98 SE/ME/2000/XP,Vista，Win7,Internet Explorer8.0.0,

Certification

Certificate

CE FCC ROHS ISO
