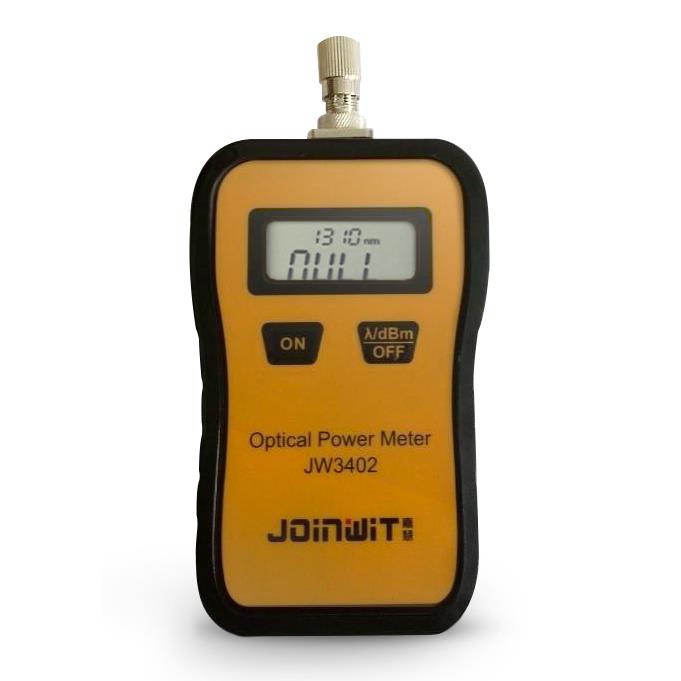

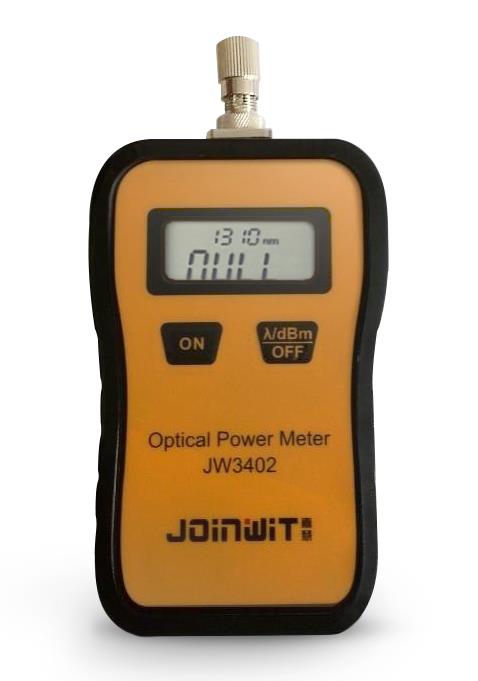

JW3402 is a highly cost-effective portable power meter and it’s newly launched by the Optilink Company. It can be used for the optical power measurement within the wavelength 800～1700nm. The OL also has a wide measurement range which is more than 70dB. It’s designed with the common wavelength calibration points, such as850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm. The instrument is widely used in fiber-optic link construction, testing and maintenance.
Features：
Simple user interface
Small size, easy to carry
Wide testing range
Automatic reminding of low battery
model parameters | JW3402 A | JW3402 C |
Power meter part | ||
Calibration wavelength(nm) | 850、1300、 1310、1490、1550、1625nm | |
Measurement range(dBm) | -70～+6 | -50～+26 |
Display resolution(dB) | 0.05 | |
Uncertainty(dB) | ≤±0.25 | |
linearity(dB) | ≤±0.1 | |
Power supply | AAA 1.5V battery(3pcs) | |
Auto-off time | 10mins | |
Battery continuous operation time(h) | 300 | |
Working temperature（℃） | -10～+60 | |
Storage temperature（℃） | -25～+70 | |
size(mm) | 166*106*20 | |
weight(g，without battery) | 90 | |
