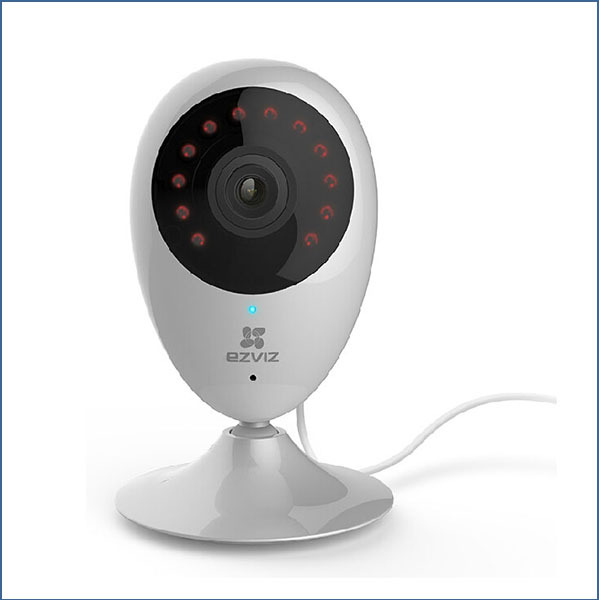

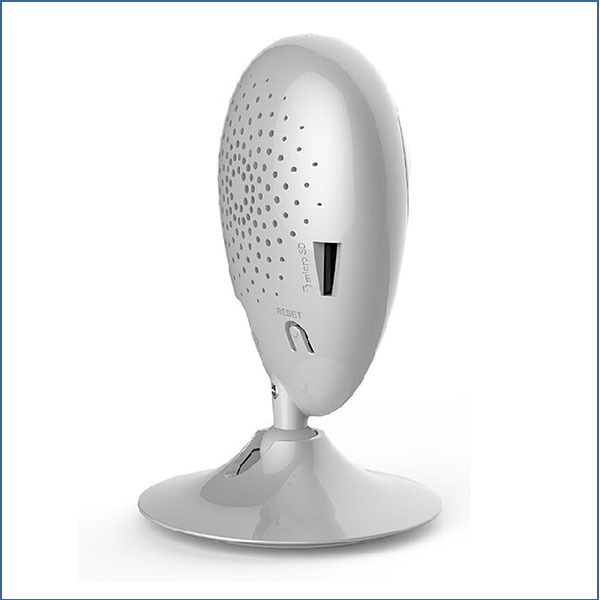

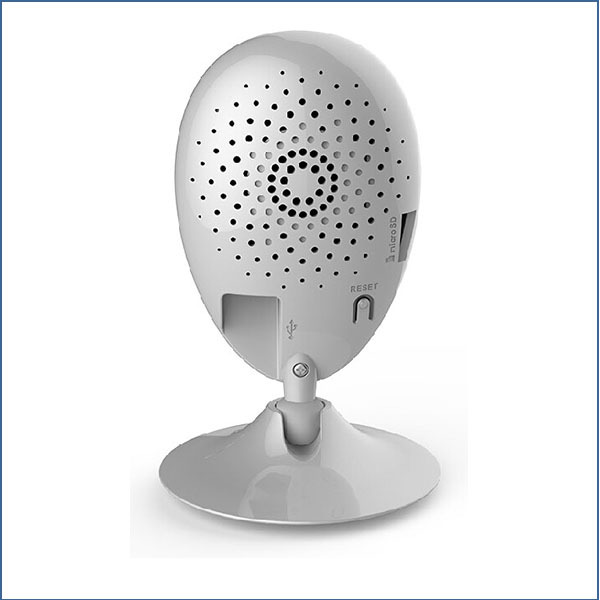

Hikvision Ezviz C2C HD 720P IP Camera Wifi 1/4" SONY CMOS CCCTV Wecurity IP camera wireless network cam TF Card storage

Brand:

Price:

Pieces

get latest price

< >

Color:

default

Size:

default

Shipping From:

China
Russia

Shipping:

Please select the country you want to ship from

Quantity:

- + Pieces

Total Price:

Depends on the product properties you select

Buy Now Add to Cart Inquire Now

< >

Product Details
Supplier Detail

Features:

Hikvision ezviz C2C HD 720P IP camera wifi 1/4" SONY CMOS CCCTV security ipcamera wireless network cam TF Card storage

Specifications:

bluela Specification

Model		CS-CSC-31WFR
Image sensor		1/4" progressive scan CMOS
Min. illumination		0.02 luxF1.2, AGC on 0 lux with IR
Shutter time		1/25s (1/30s) ~ 1/100,000s
Lens		4mm
Lens mount		M12
Day & night		ICRut
Digital noise reduction		3D DNR
Wide dynamic range		Digital WDR
Backlight compensation		Yes, zone configurable
Compression standard
Video compression	H.264 / MJPEG
H.264 compression profile	Main profile
Bit rate	32 Kbps ~ 16 Mbps
Audio compression	G.711 / G.726
Audio bit rate	64 Kbps (G.711) / 16 Kbps (G.726)
Max. image resolution	2048 x 1536
Frame rate	50Hz: 12.5fps (2048 x 1536), 25fps (1920 x 1080), 25fps (1280 x 720) 60Hz: 15fps (2048 x 1536), 30fps (1920 x 1080), 30fps (1280 x 720)
Image settings	Saturation, brightness, contrast adjustable through client software or web browser
Network
Network storage	NAS
Alarm trigger	PIR detection, motion detection, tampering alarm, network disconnect, IP address conflict, storage exception, storage error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour (SIP optional)
System compatibility	ONVIF, PSIA, CGI
General functionalities	Flickerless, dual stream, heartbeat, mirror, user authentication, video mask, watermark
Interface
Communication interface	1 RJ45 10M / 100M Ethernet port
Onboard storage	Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
Alarm I/O	1/1
Wi-Fi parameters (only for -W model)
Wi-Fi standard	IEEE802.11b/g/n
Frequency range	2.4 GHz ~ 2.4835 GHz
Communication bandwidth	Support 20/40 MHz
Security	64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, WPS
Transmission rate	11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps
Transmission range	Outdoor: up to 200 meters; Indoor: up to 50 meters. It varies depending on actual environment.
General
Operating conditions	-30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
Power supply	5 VDC ± 10%, PoE (802.3af)
Power consumption	Max. 5W
PIR detection range	Max 30m
PIR detection angle	80°
IR range	Max. 10m
Dimensions (mm)	125 x 58 x 38
Weight	0.12Kg
