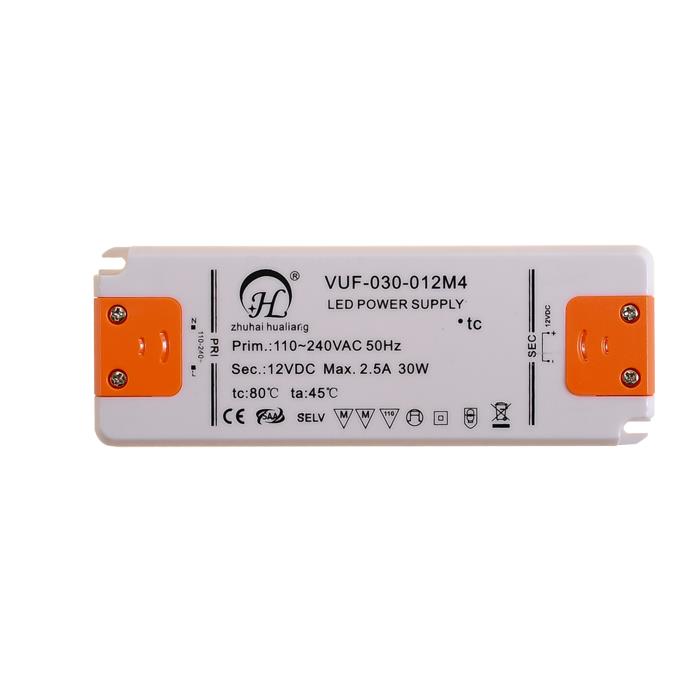

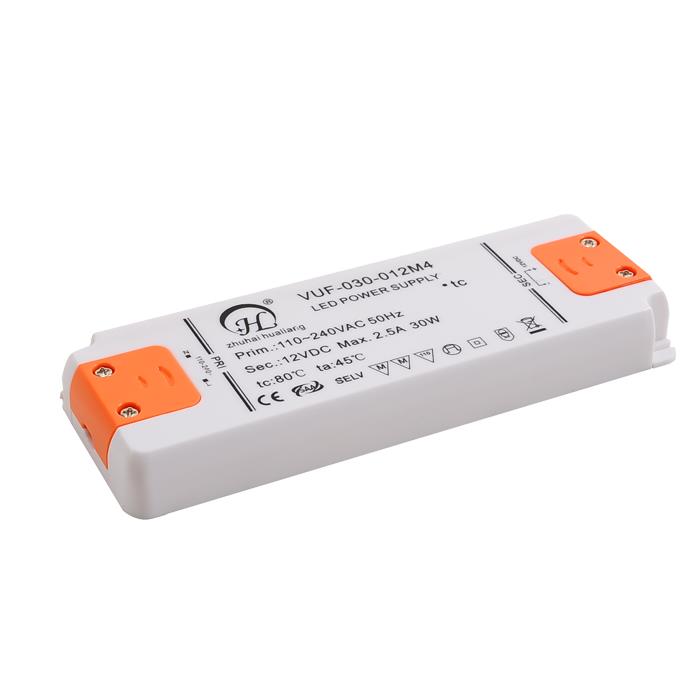

IP20 30W super slim indoor constant voltage LED driver

Brand:

Hualiang

Price:

pieces

get latest price

< >

Color:

Size:

Shipping From:

Shipping:

Please select the country you want to ship from

Quantity:

- + piece

Total Price:

Depends on the product properties you select

Buy Now Add to Cart Inquire Now

< >

30W 12V LED indoor lighting LED power supply CE LED driver

MODEL		VUF-030-012M4
OUTPUT	DC VOLTAGE	12V
	RATED CURRENT	2.5A
	CURRENT RANGE	0-2.5A
	RATED POWER	30W
	RIPPLE&NOISE(max)	<150mV
	VOLTAGE TOLERANCE	±0.5V
INPUT	VOLTAGE RANGE	100-265VAC
	FREQUENCY RANGE	47-63Hz
	POWER FACTOR(Typ.)	≥0.95
	EFFICIENCY(Typ.)	82%
	AC CURRENT(Typ.)	0.17A/220VAC
PROTECTION	Short circuit	Protection type:Hiccpe mode,recovers automatically after condition is removed
	Overload	100-160%
ENVIRONMENT	WORKING TEMP.	-10~+40℃ (Refer to output load derating curve)

	STORAGE TEMP	-40~+80℃
SAFETY&EMC	SAFETY STANDARDS	EN61347-1;EN61347-2-13;SELV;IP67 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:3.75KVAC
	EMC Test Standards	EN55015;EN61000-3-2;EN61000-3-3
		EN61547
NOTE	1.All parameters NOT specially mentioned are measured at 220VAC input,rated load and 25℃ of ambient temperature.
	2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&47uf parallel
	capacitor.
	3.Tolerance:includes set up tolerance,line regulation and load regulation.
