    IP65 SMD3528 LED injection module ABS anti-flaming material

    Price:
    Pieces
    get latest price

    < >
    Please select a Color
    Please select a Size
    Please select a Ships From
    Please select the country you want to ship from
    Please select the country you want to ship from
    - + Pieces
    This product can't be shipped to the selected region by express delivery.If you want to buy this product,you can click inquire now to contact seller
    Depends on the product properties you select
    Buy Now Add to Cart Inquire Now

    Technical Specifications:

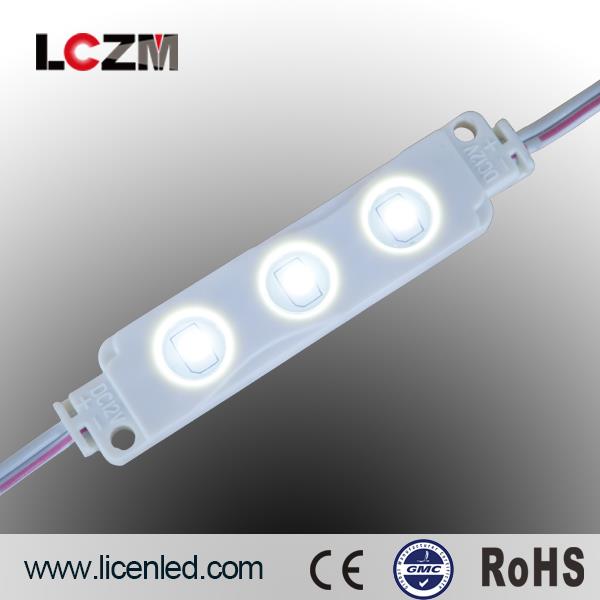

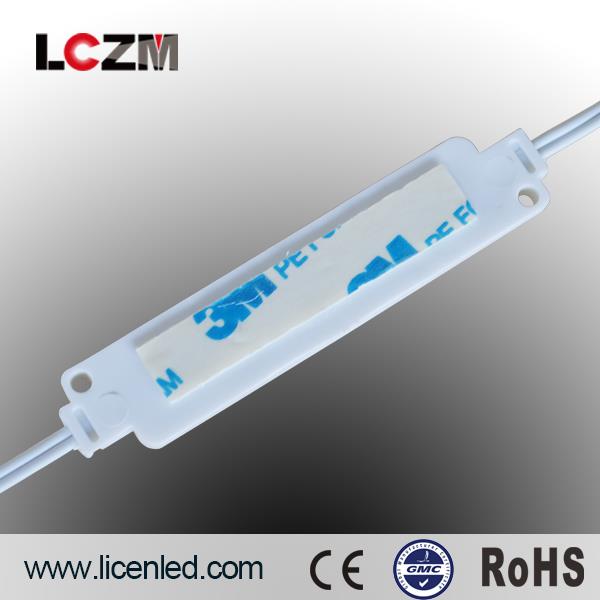

    Product name: SMD 3528 3leds Injection LED module

    Application: Mini and Slim channel letters

    LED type: SMD3528 Top led

    LED quantity: 3 pieces

    Physical dimension: 71 x 15 x 5.6 mm

    Operating voltage: DC 12V

    Power consumption: 0.24W / 0.36W

    Operating temperature: -20~+60°C

    Emitting color: Red, Green, Blue, Yellow, White

    Luminous: 7~8 lm/led

    Beam angle: 120 degree

    Life span: 50000 hours

    Defend grade: IP 67

    Driven mode: Constant voltage

    Weight: 12.5 KG/CTN (1000 pieces)

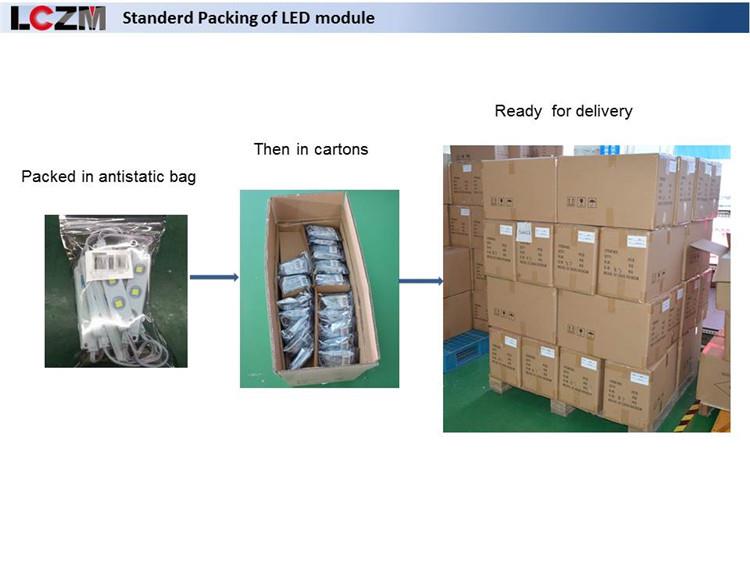

    Package: 50 pcs/bag, 1000pcs/carton

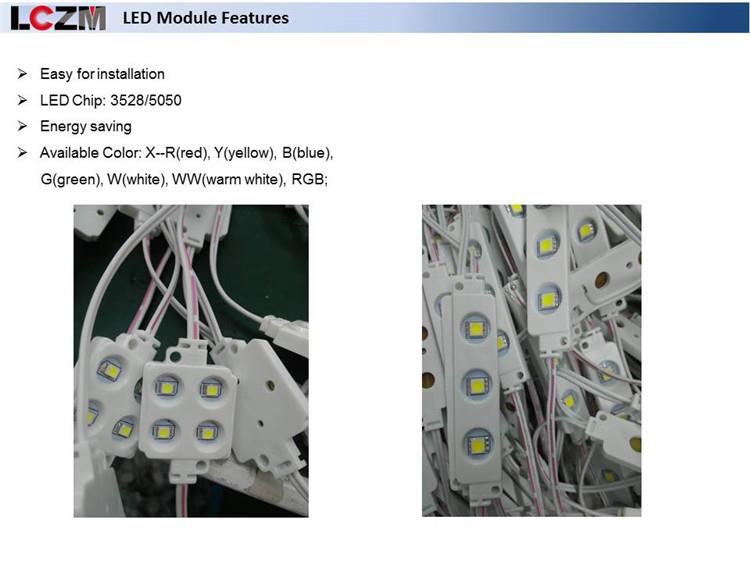

    LED Module Features.jpg

    LED Module Applications.jpg






    Licen Technology Limited

    • Phone: +86 21-67679507
    • Business Type: Manufacturer
    • Location: China
    • Main Products: LED module, LED strip, LED light
    • Total Employees:Less than 100 people
    • Year Established:2008
    • Export Markets:Domestic Market,Asia,Europe,Oceania
    • Total Annual Revenue:US$1-8million
