Itead Sonoff 4CH(4-gang) din rail mounting WiFi switch Wireless intelligent on off switch 10A2200W for smart home Automation

Specifications:

Item specifics

• Item Type: Switches

• Model Number: Sonoff 4CH

• Brand Name: ITEAD

• Features: supports to connect and control 4 home appliances

• Remote Distance: wireless

• Warranty: none

• Switch Type: Remote Control

• Certification: None

• Input: AC 90V-250V ( 50/60Hz)

• Max Current: 10A

• Max Power: 2200W

• Power Load: 2.5KW/Gang; total 2.5KW

• WIFI: IEEE 802.11 b/g/n

• Wireless Frequency: 2.4Ghz

• Humidity: 5%-95%

Product Description

Packaging Details

• Unit Type: piece

• Package Weight: 0.35kg (0.77lb.)

• Package Size: 15cm x 10cm x 8cm (5.91in x 3.94in x 3.15in)

Itead Sonoff 4CH(4-gang) din rail mounting WiFi switch Wireless intelligent on off switch 10A/2200W for smart home Automation

Overview

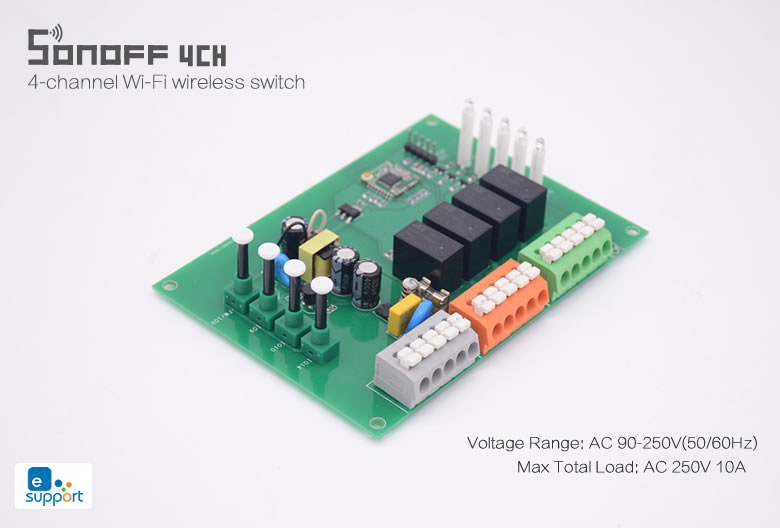

Sonoff 4CH is an ESP8285 based 4 channel (4-gang) din rail mounting WiFi switch.

Sonoff 4CH supports to connect and control 4 home appliances, which can be turned on/off separately by the buttons or iOS and Android APP EweLink. Owning a Sonoff 4CH means you have 4 Sonoff basic WiFi switches integrate together.

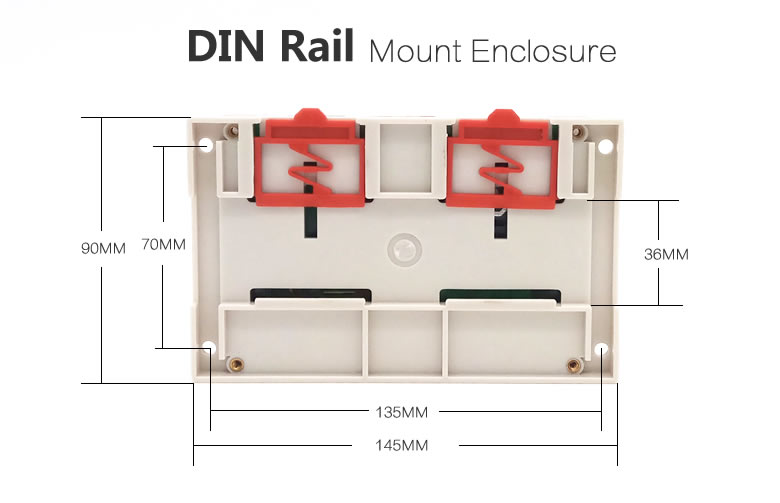

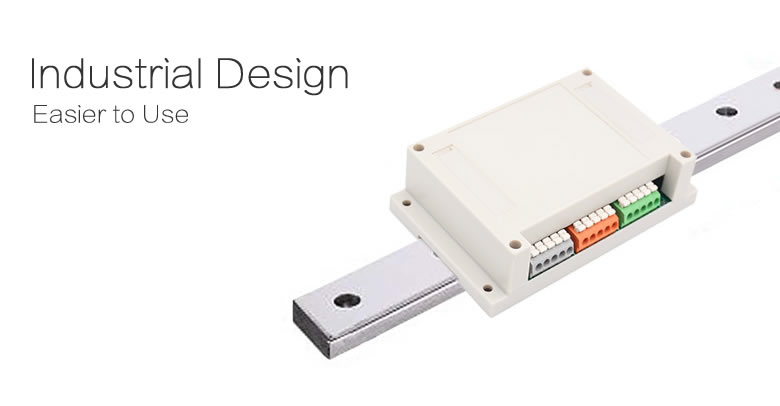

A DIN rail is a metal rail of a standard type widely used for mounting and industrial control equipment inside . These products are typically made from cold rolled carbon steel sheet with a or bright surface finish.

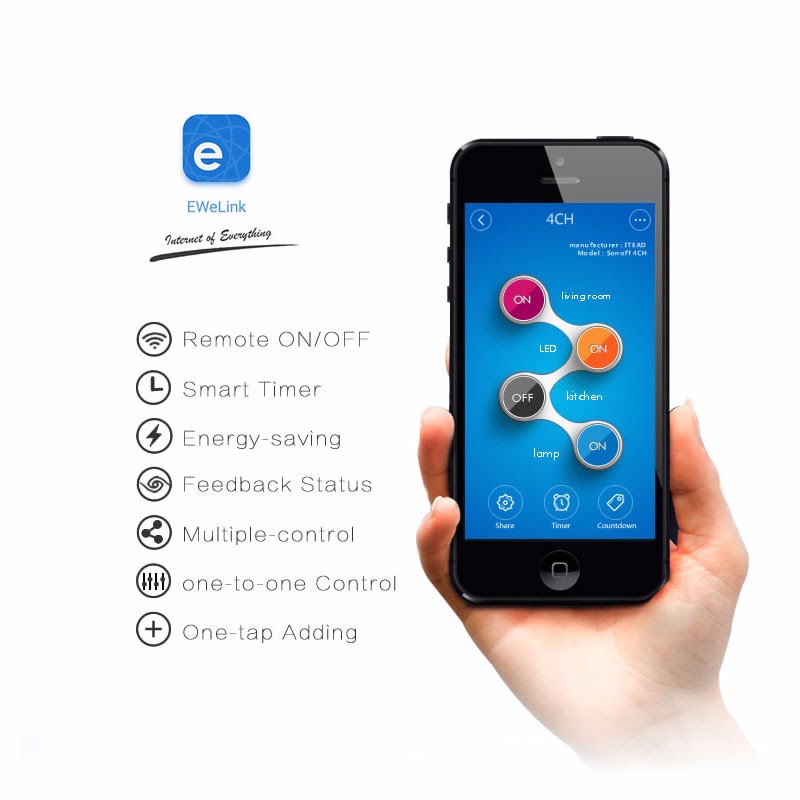

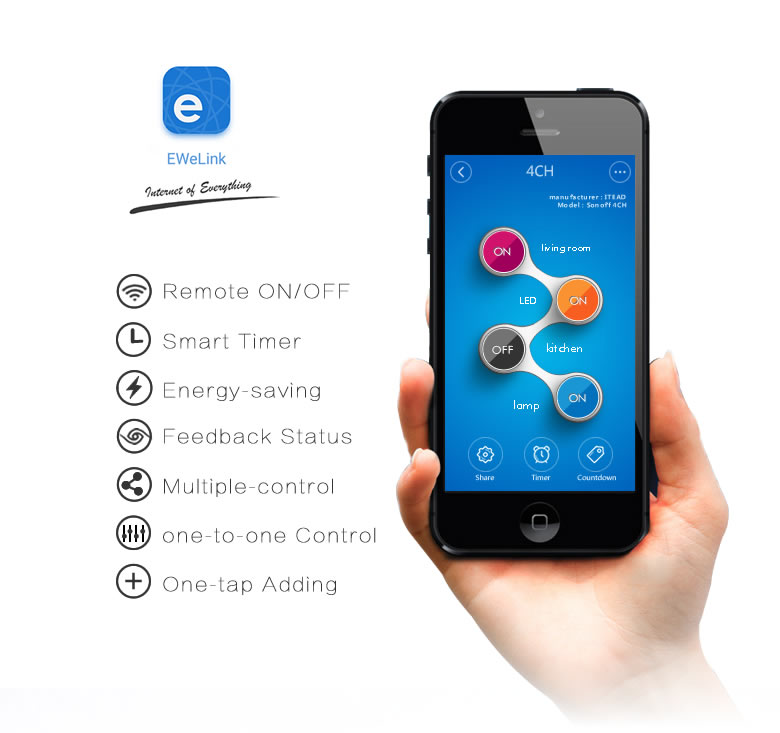

Sonoff 4CH belongs to Sonoff family, definitely, it bears all the functions basic Sonoff has. In EweLink, you can remote turn on/off from anywhere at any time, set single/repeat/countdown timing schedules to turn on/off at a specified time, share to others so that they can control together.

Sonoff 4CH is hacker-friendly that you can flash your firmware without difficulty.

Features

• Support independently turn on/off 4 home appliances

• Support to control home appliances by local toggle buttons or APP

• Support tracking device status and timely remote control through APP

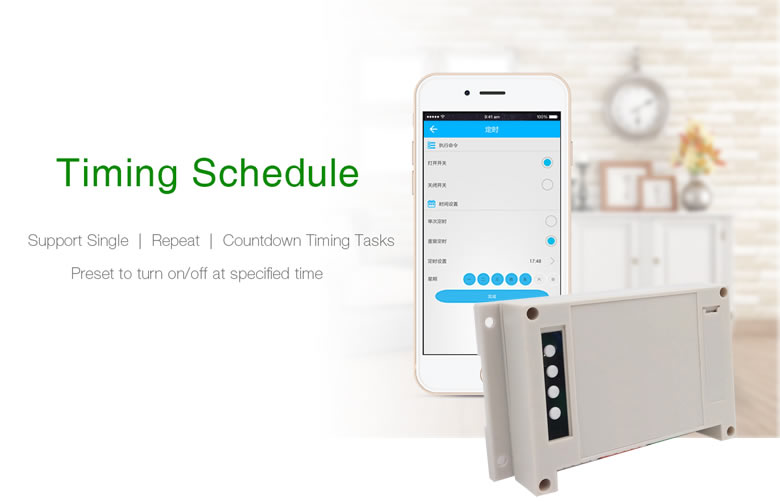

• Support countdown timing and schedule timing

• Support one-key sharing device to other user

Electrical Characteristics

• Voltage range: 90-250v AC(50/60Hz)

• Max current: 10A

• Max Power: 2200W

• Humidity: 5%-95%

• Wireless Frequency: 2.4Ghz

• Working Temp: ﹣20℃-75℃

• Max soldering temperature: 260℃

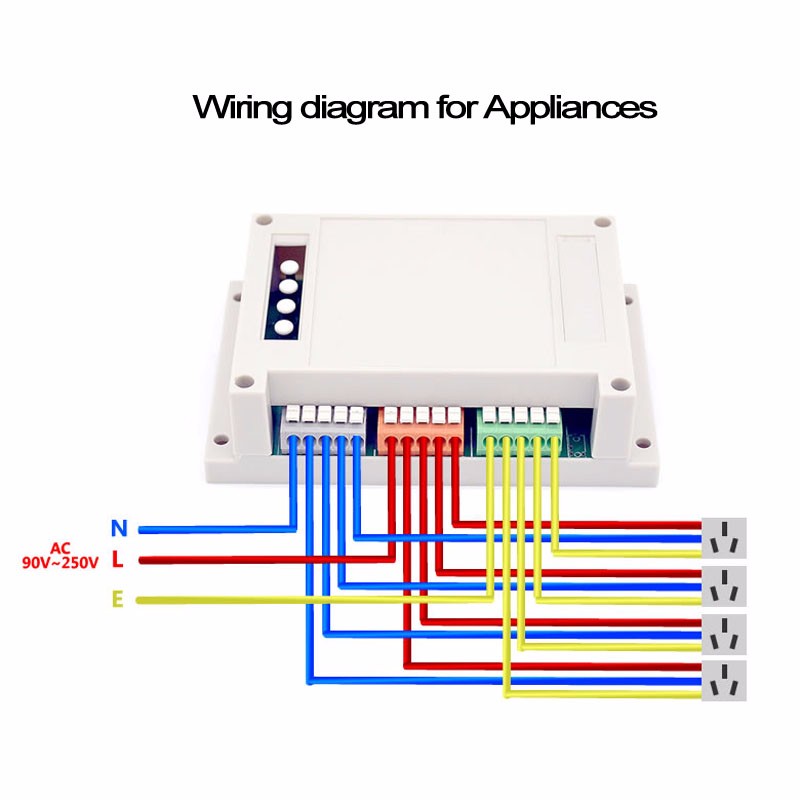

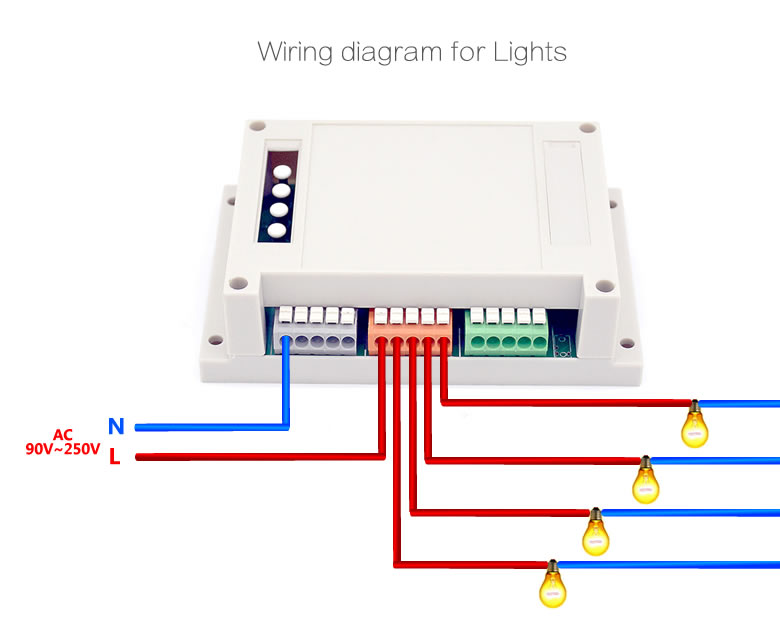

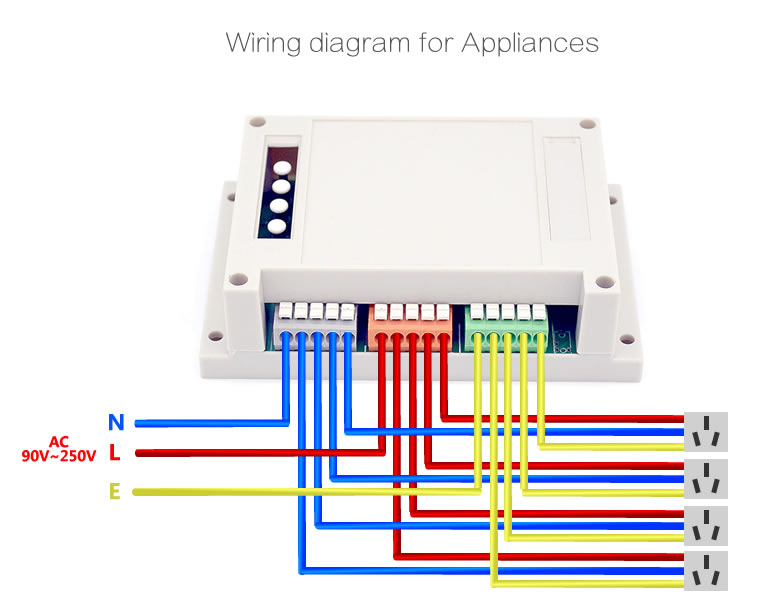

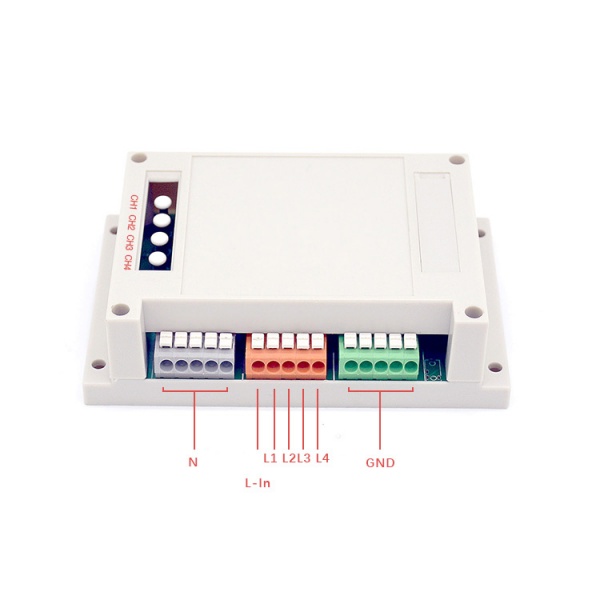

Wiring Instruction
