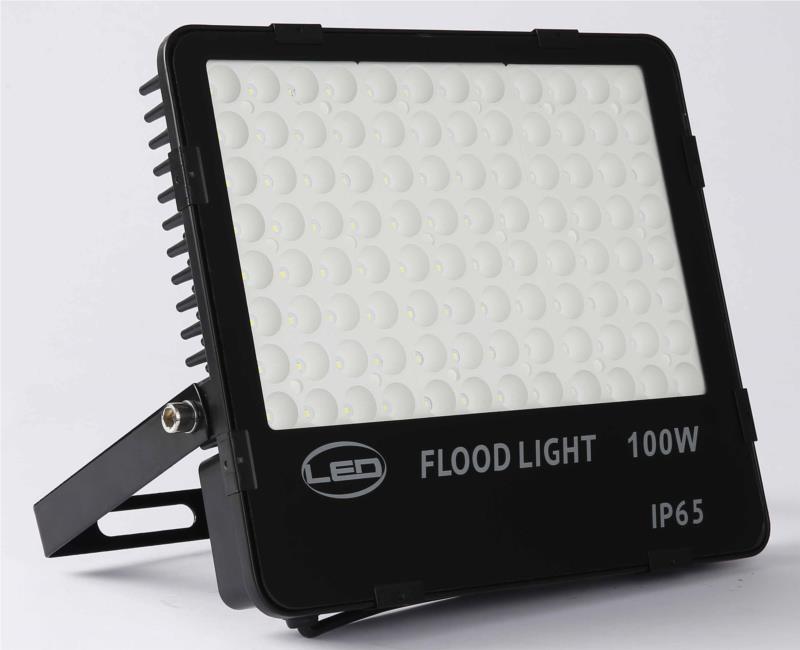

LED Flood Light GH-FLW 100w

Brand:

Guanhong

Price:

Sets

get latest price

< >

Color:

Size:

Shipping From:

Shipping:

Please select the country you want to ship from

Quantity:

- + Set

Total Price:

Depends on the product properties you select

Buy Now Add to Cart Inquire Now

< >

High termal conductivity die-cast aluminum shell

High efficient driver

Low light dcay

Wide illumination angle

Brightness with high CRI

Elegnet design and easy to install

LED FLOOD LIGHT - GH-FLW SERES:

APPLICATIONS: Factory/workshops, warehouses, indoor packing lots, toll/gas stations, supermarkets, showrooms, gym, hospitality, etc.

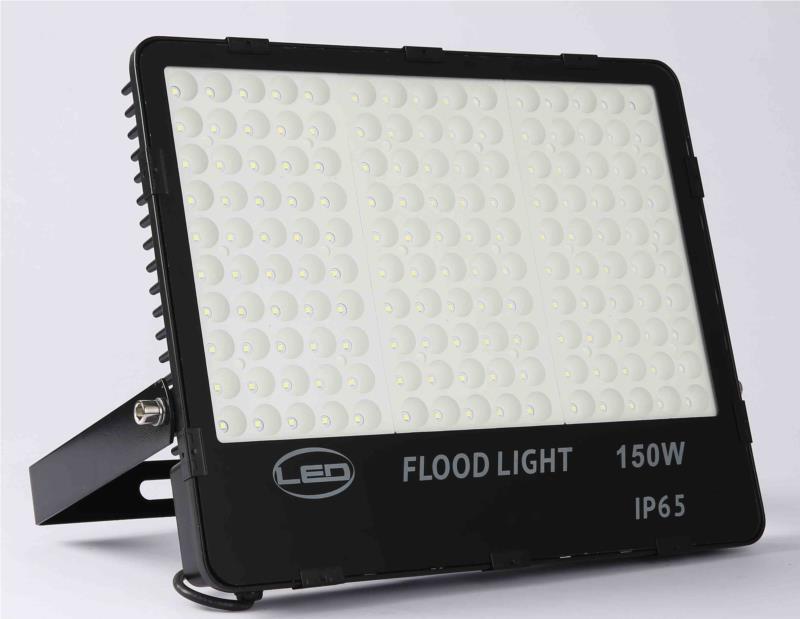

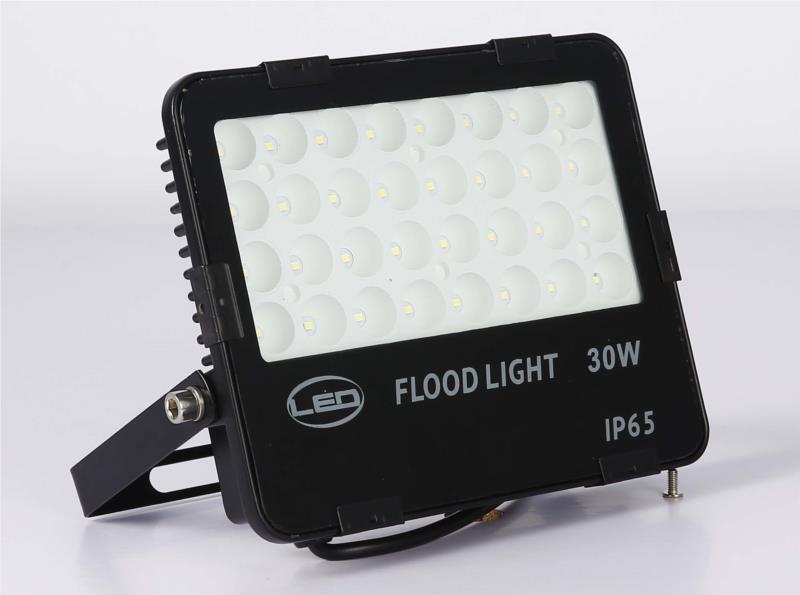

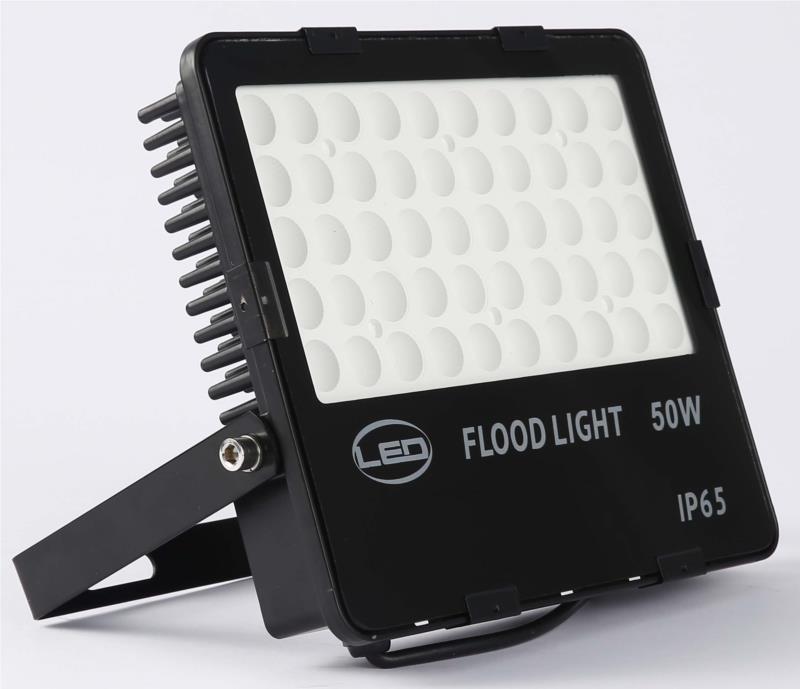

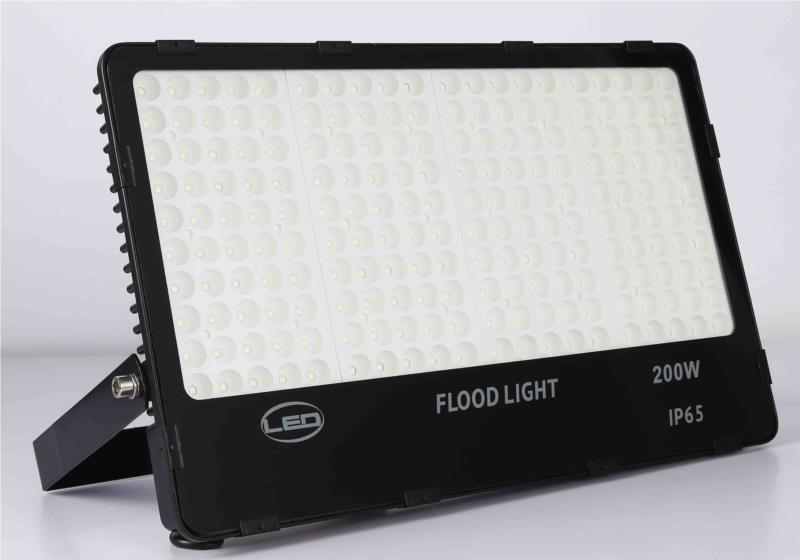

POWER SUPPLY IN SERIES: 10w, 20w, 30w, 50w, 70w, 80w, 100w, 150w, 200w, 250w

INSTALLATION:

1) Install frame on wall with M10 bolts and nuts,

2) Fix frame and light via screw 3. Connect power lines 4 properly.

3) Adjust light to a right angle, lock screw 3 and 5, and complete installation.

Maximum 15 pieces in 1 loop, if more should increase power input line.
Product installation, test or debug must be performed by a qualified electrician/technician.

NOTES:

Product contains glass and fragile material, handle with caution.
Do not scrub product surface or drop on the ground when install.
Make sure all power is turned off before install, be prepared with leakage protection.
Working voltage: AC 85~265 V, 50/60 Hz. Do not exceed working voltage range.

TECHNICAL PARAMETERS

PRODUCT BENEFITS AND FEATURES

Excellent price/performance ratio	Not dimmable
Low energy consumption	Good color rendering (75 Ra)
Professional thermal management	Good color stability throughout its life
Energy saving and	High color consistency
Professional lighting for line voltage	No flicking
