Multi function optical light source

Brand:

Price:

Pieces

get latest price

< >

Color:

default

Size:

default

Shipping From:

China
Canada

Shipping:

Please select the country you want to ship from

Quantity:

- + Piece

Total Price:

Depends on the product properties you select

Buy Now Add to Cart Inquire Now

< >

Product Details
Supplier Detail

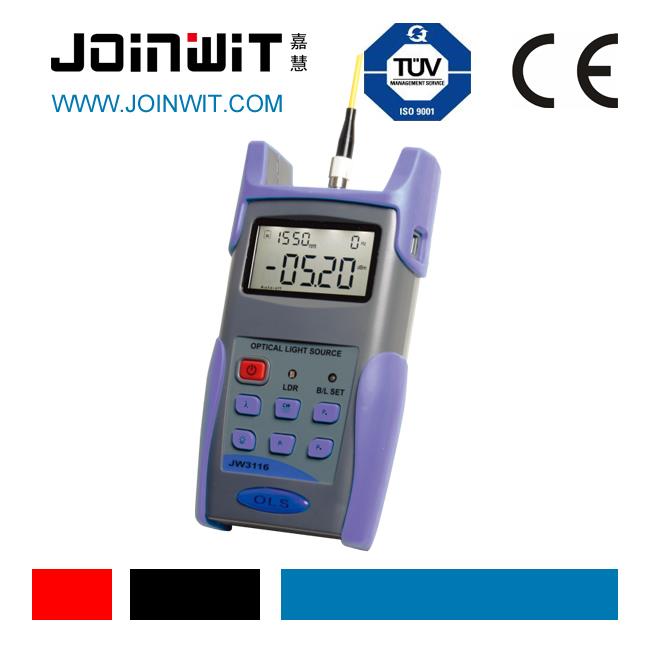

This handheld optical light source is a new released tester in 2010, designed for the fiber optical network installation, acceptance, and maintenance. Used with THE MATCHED OPTICAL POWER METER, can provide a accurate fiber network solution. According with client’s requirements, it can provide 1~4 wavelength with stable output power, and featured with continuous adjustable output power. The Intelligent backlight control function can save the power, The optical light source have smooth appearance, good touching, and friendly design, which can meet clients’ largest requirements.

Features

l Wave ID information can be transmitted when used with THE MATCHED OPTICAL POWER METER.

l Tone generation, 270HZ,330HZ,1KHZ,2KHZ

l Output power can be adjustable

l Output power value is shown on LCD display

l Intelligent backlight control (light intensity can be adjusted properly

according to ambient light, which greatly reduced power consumption)

l AA alkaline and AC adapter for power supply

l Low battery indication

Model	Optical Light Source
Operating wavelength（nm）	1310/1550 (others specify on requests）
Applicable fiber	SM ,MM
Laser type	FP-LD(others specify on requests)
Maximum Output Power（dBm）	-5（can be adjustable, others specify）
Adjustable step size（dBm）	＜0.5 (adjustable between -5~-12dBm)
Stability(dB，15min，20℃)	±0.1
Stability(dB，30min，20℃)	±0.05
Modulation（Hz）	CW， 270，330，1K，2K
Fiber Port	FC/PC or FC,SC,ST interchangeable
Alkaline Battery	3*AA，1.5V
Power Supply Adaptor(V)	8.4
Battery Operating time(h)	45
Operation Temperature(℃)	-10～+60
Storage Temperature(℃)	-25～+70
Outline size（mm）/weight	1759044.5/255g
