Features

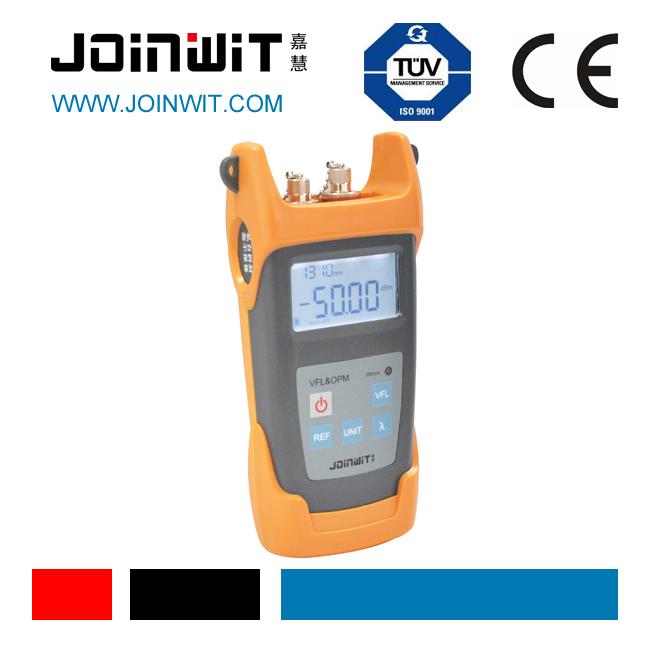

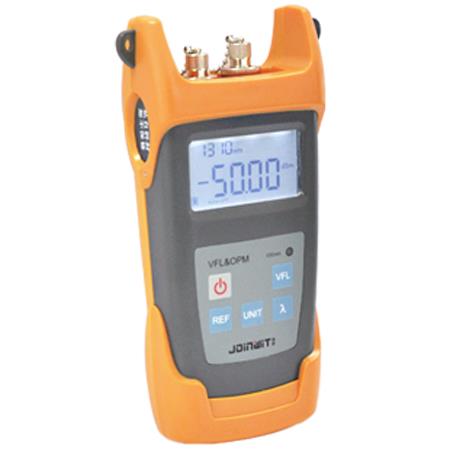

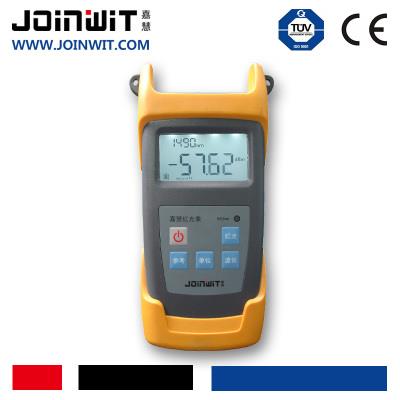

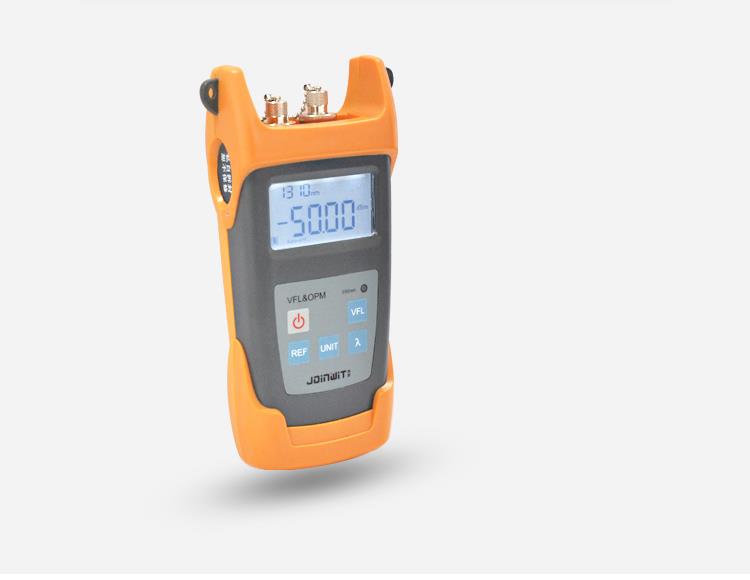

Power meter and VFL integrated in one unit, this tester allows to perform both optical power/loss measurements and Fiber faults tracing visually.It has two ports,one is power meter,the other is VFL.
Optical Power Meter is an ideal tester used in quickly mechanical splicing and FTTx networks.

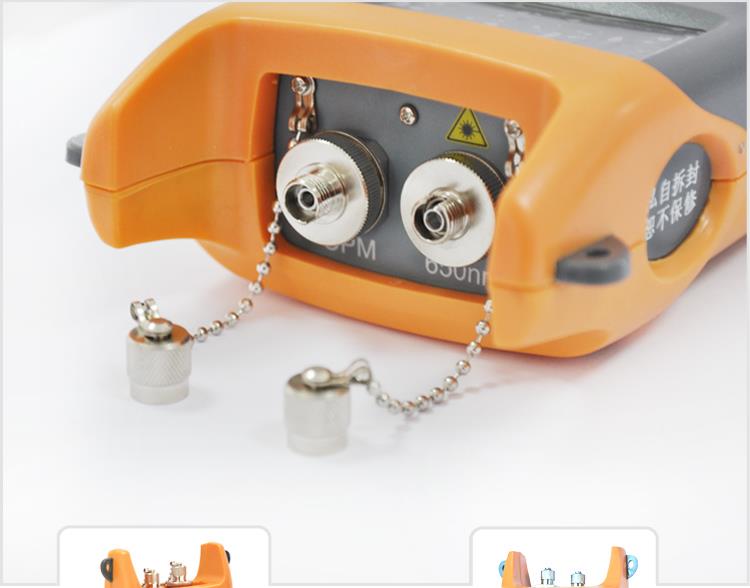

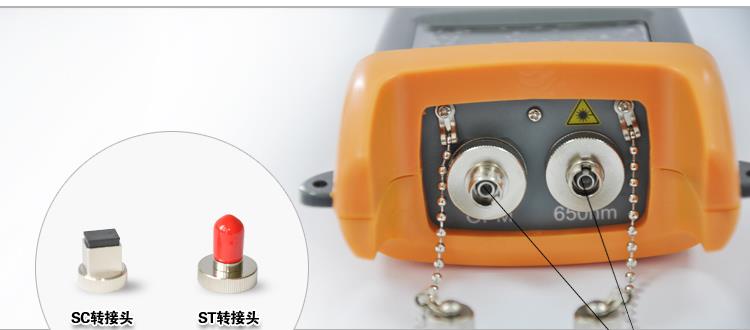

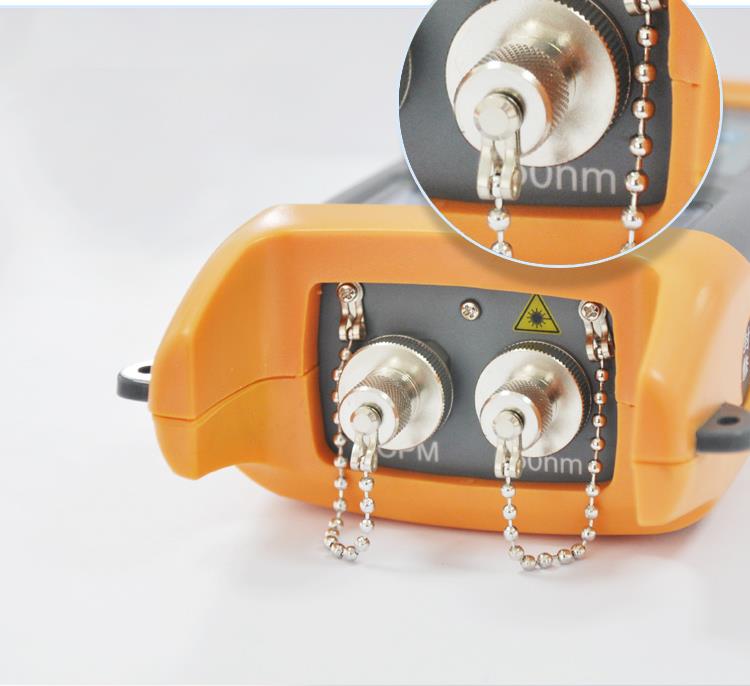

Optical Port: FC, SC, ST interchangeable supports various optical connectors.
Model | JW3223 |
VFL output power | 1mw,10mw |
Operating wavelength | 850,1300,1310,1490,1550,1625nm |
Detector Type | InGaAs |
Power Measurement Range | A:-70~+6dBm C: -50~+26dBm |
Uncertainty | ±0.22dB |
Resolution | 0.01 |
Operation temperature | -10~+60 ℃ |
Storage Temperature | -25~+70℃ |
Auto-off function | Yes, Auto-off after 10minutes idle time |
Battery Life @ OPM | 180 hours |
Battery Life @ VFL | 60 hours |
Power Supply | 3pcs AA Batteries |
Weight | 400g (including batteries) |
Size | 192*102*50 |
MODEL | INCLUDES |
Optical Power Meter | VFL Power Meter, 3pcs alkaline batteries, User Manual, Cotton swabs andSoft Oxford cloth pack. |
