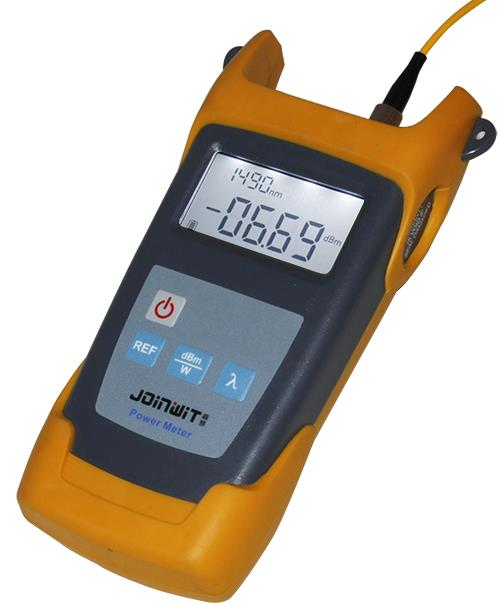

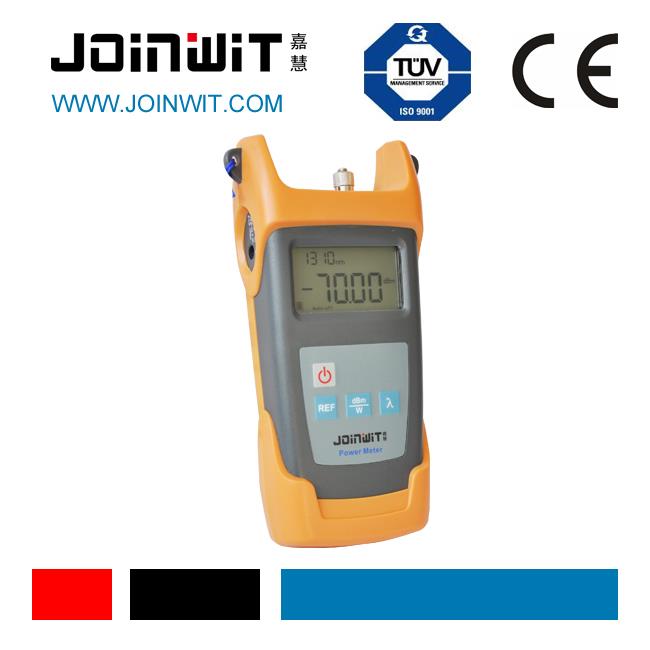

JW3211 optical power meter is the latest self-developed multi-functional power meter designed for the installation, construction and maintenance of optical fiber network.

It features compact size, smooth appearance, user friendly design, optional backlight, auto shut off function, wide measurement range, accurate test, self-calibrating function and universal connector. The stability and reliability of this power meter are greatly improved with the large square (ф1.0mm) detector.

Features

l Wide dynamic measurement range (up to 80dB)

l Reference power level storage(Ref Setting)

l User self-calibration function

l Comfortable LCD display and backlight LCD display supports

night operation.

l Power measurements in dBm or mw and insertion loss in dB

l Optional 10 minutes Auto-off function

l AA alkaline batteries can last more than 140 hours, AC adaptor also available

l Low battery power indication

MODEL	JW3211A	JW3211C
Wavelength(nm)	800~1700nm
Detector Type	InGaAs
Detector Size	Ø *1.0mm*
Measurement Range (dBm)	-70~+10	-50~+30
Uncertainty	±5%
Calibrated Wavelength(nm)	850,1300,1310,1490,1550,1625
Resolution(dB)	0.01

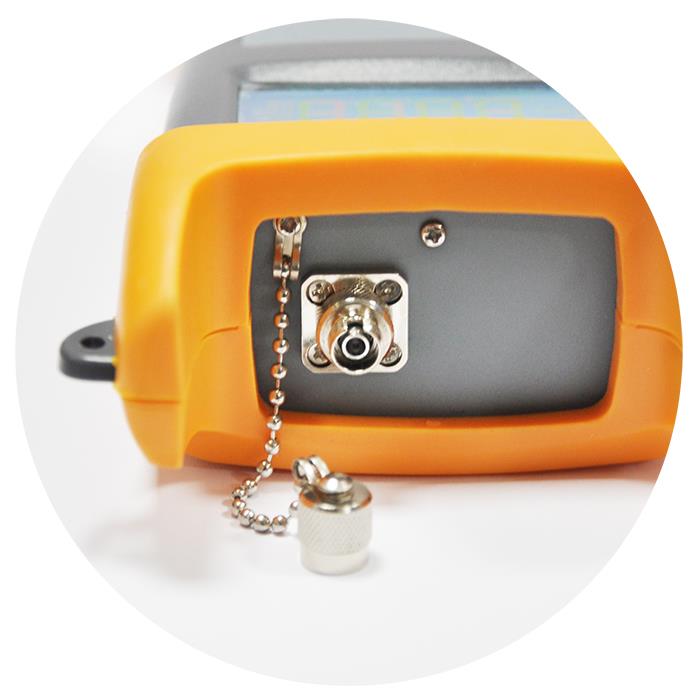

Optical Connector	FC(interchangeable SC,ST) / as well as 2.5mm universal

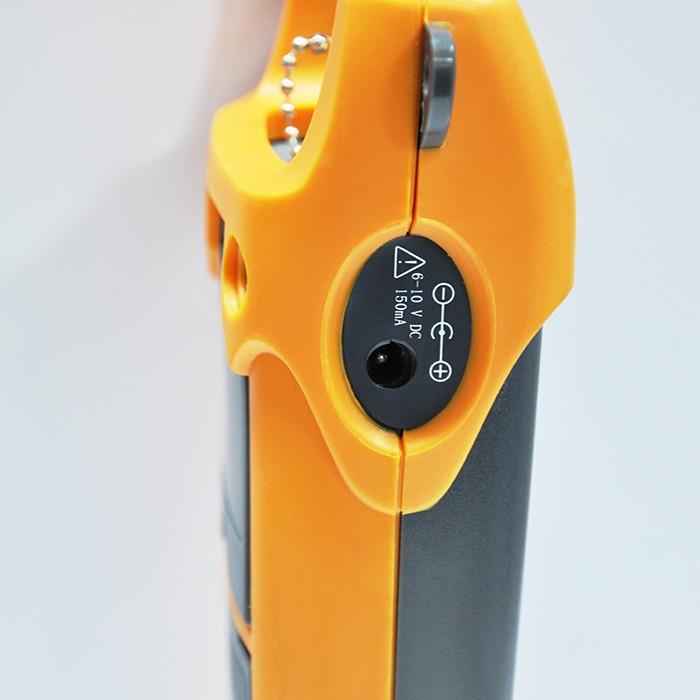

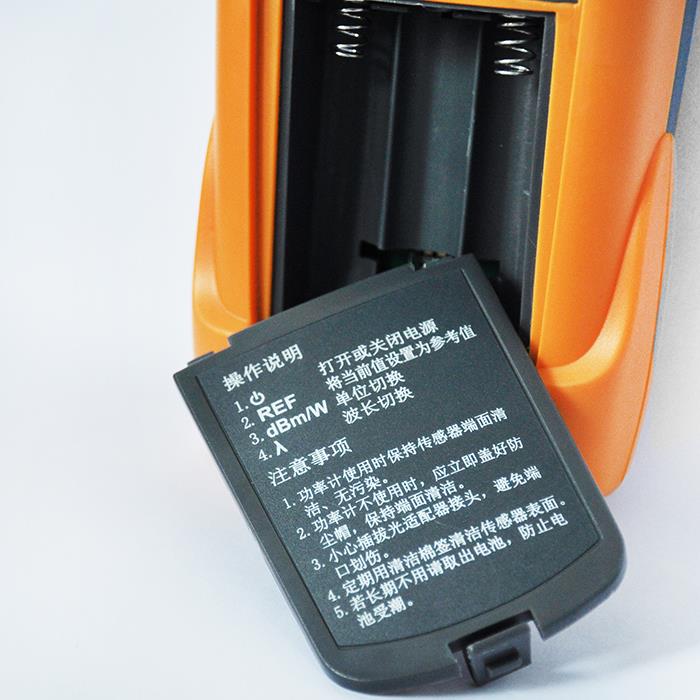

Power Supply	Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V)
Battery Operating Time	140 h with 1.5V Battery(3pcs)
Operating Temperatrue(℃)	-10 ~ +60
Storage Temperatrue(℃)	-25 ~ +70
Relative Humidity	0 to 95% (non-condensing)
Dimension(mm)	190X100X50
Weight(g)	370
