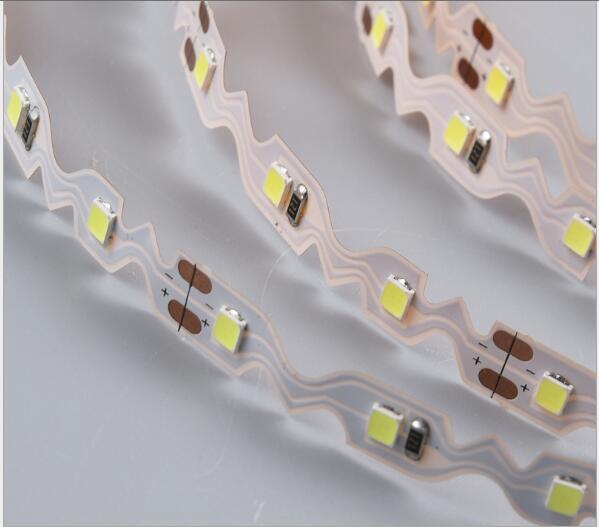

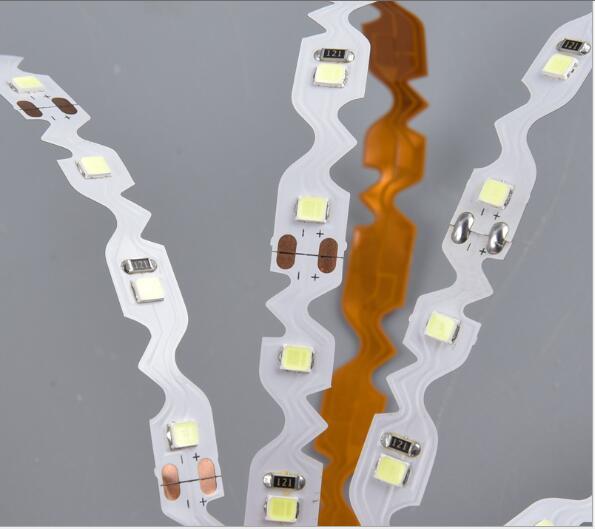

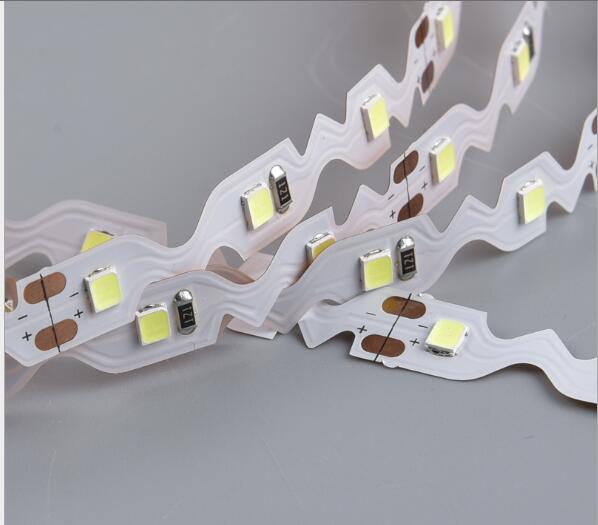

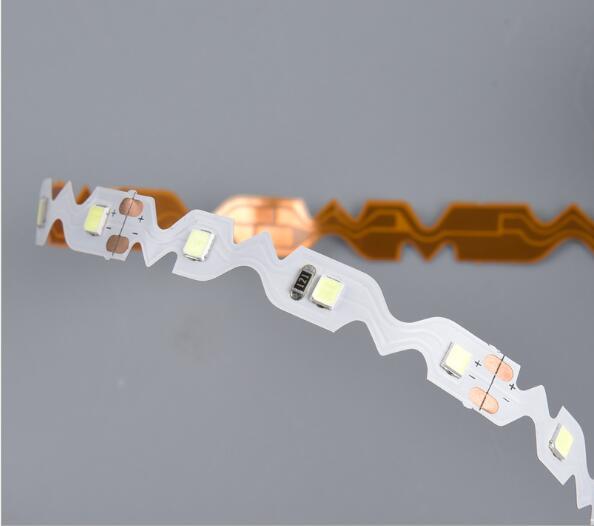

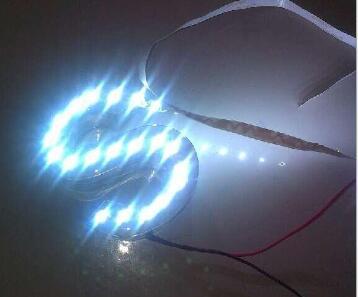

S type lamp

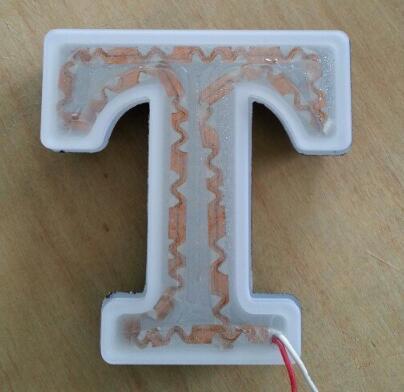

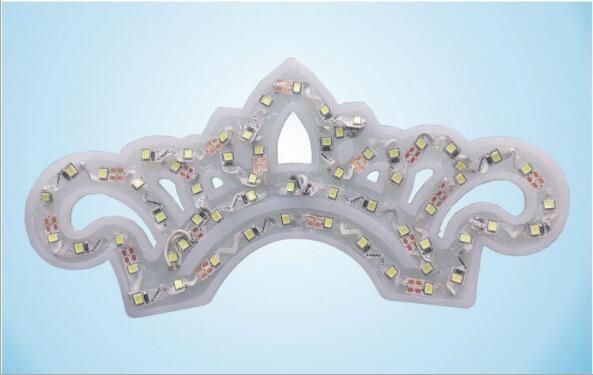

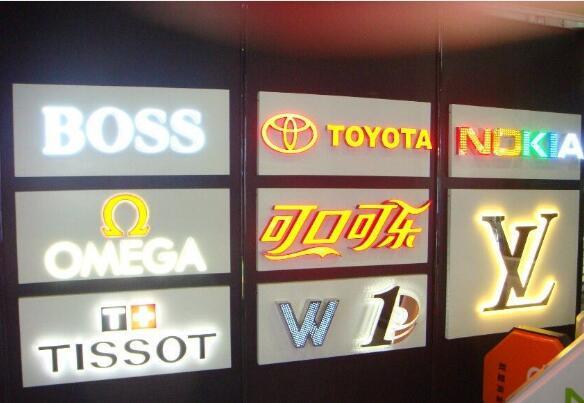

Suitable for marking Mini word advertising products; easy to bend, two years warranty.

Drive voltage

The driving voltage of 12V

Type SMD2835 lamp

R/G/B/Y/W light color red yellow blue green white

A group of 3 light power 0.142W/ lamp group

1 meters power 12.5W

Working current 42mA/ group 3 light / group

Working temperature -20~+60

Amount of 60 meters / lamp

The center distance of 16.7mm lamp

Line board size 8mm*5M 6mm*5M/

Service life 50000h; &gt

Waterproof grade is not waterproof

Lamp brightness (LM) 16LM/ lamp

Light angle 140-160

Color (white) 13000K/6500K/4500K/3200K optional

S soft lamp installation notes

1 "s soft lamp belt during the bending process, can not be close to the lamp and resistor element, otherwise it will damage the circuit, bending, as far as possible from the element 3-4mm

2 "S soft light can not be brought in a repeated bending, otherwise it will lead to fracture of copper foil board

3 "fixed lights, avoid glue (502), hot melt adhesive contact caused by corrosion of substances such as beads beads

4 "install lights with, try to avoid folding objects (such as tweezers) and other hard objects to scratch the beads

5 "use lamp belt, not a from the reel removed long and stacked together, otherwise easy to have twisted and knotted, leading to the installation of pull pull damage beads
