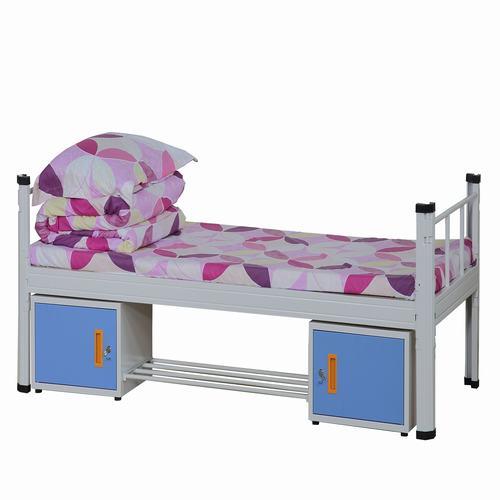

Single iron bed for dormitory A new and innovative style without screws -Lianying Furniture

Material description for single iron bed

▏Dimension: W1980×D900×H680 (mm)

▏Material of iron bed:

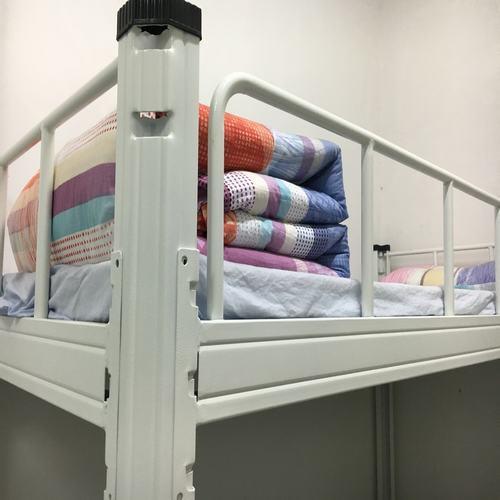

◆ 1. Column: it is made of high quality cold-rolled steel plate and rolled with special forming line. Its facade is hollow and shaped. The front and side of the column is provided with reinforcing ribs. The size of the façade after forming is 65 mm×65 mm, and the thickness of the material is 1.2 mm (GB).

◆  2. Beam: it is made of high quality cold-rolled steel plate and rolled with special forming line. Its facade is hollow and shaped. The front of the column is provided with two reinforcing ribs. The size of the façade after forming is 82 mm×40 mm, and the thickness of the material is 1.2 mm.

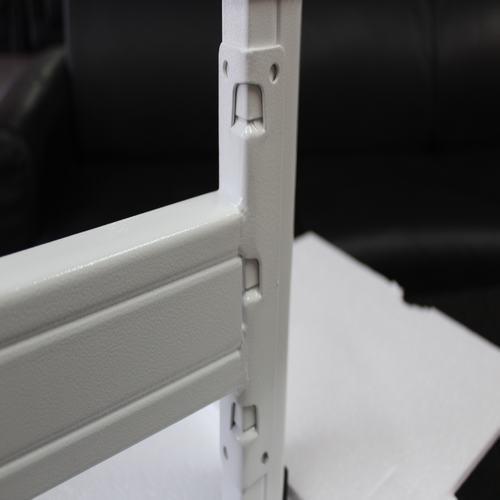

◆ 5. Junction hook: It is punched by a punching machine into L-shaped. There should be three connecting bayonets. The dimension after being formed is 198×27×27 (mm), and the material thickness is 2.0 (mm).  ◆ 6. The part of iron bed is welded with CO2 protection welding technology. The surface of iron plate should be formed with degreasing, rust-removal, phosphating, electrostatic powder spraying, and curing at high temperature. The carrying capacity of each bed is 400 kg.

◆  7. Bedside baffle: It is made of plywood and PU artificial leather.

▏Lianying Furniture provides the following service guarantee system of dormitory bed sales:

◆ 1. Take full consideration of your requirements and spaces, and provide human-friendly CAD, 3D effect chart design scheme, project budget scheme, detailed project specification, and materials.

◆ 2. All products are entitled to substantive safeguards with ten years of warranty and life-long maintenance.

◆ 3. Establish customer files that the product after-sales service department should be responsible for after-sales services.

▏Remarks: Product advantages

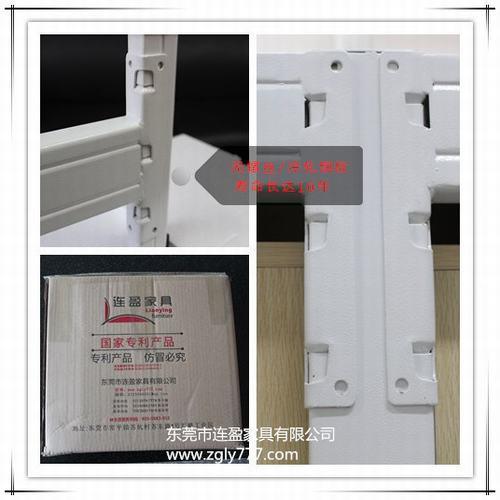

◆ This product is a clamping type of bed without any screw for the entire assembly and disassembly. Both its transportation and installation are convenient (disassembly, assembly and transportation are convenient).

◆ This product is firmer than all general beds in the market. Turning on the upper berth makes no noise, so the people on the lower berth feels undisturbed all the way (it is mute and firm).

◆ The profile for the product determines its service life. Both the profile interior and exterior that we use have been implemented with anti-corrosion treatment of pickling and phosphating. Therefore, the bed is not easy to rust even in a more humid place. In this way, the service life of the bed has been prolonged (the service life becomes longer).
