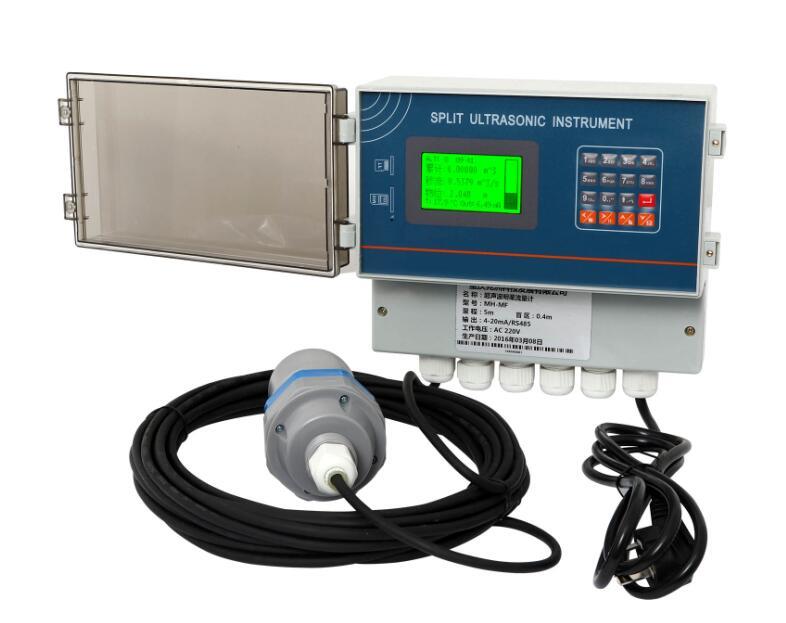

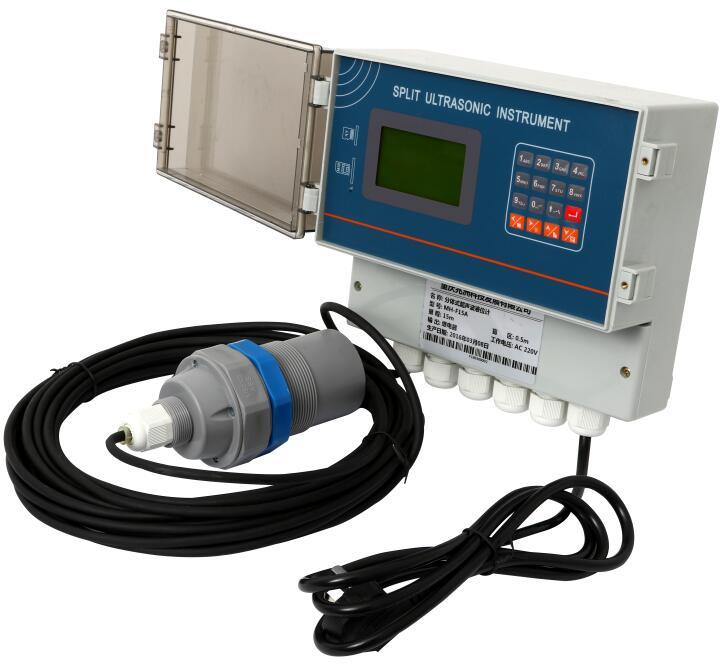

Ultrasonic Open Channel Flow-meter

Application:

 Right-angle rectangular weir,

Triangular weir,

Width weir,

Parshall flume

Features:

Low sensor power consumption, easy installation and orientation, application wildly ,standard 4-20mA output, use it separately as liquid level meter

Easy operation, widely used in thin plate right-angle weir, triangular weir, parshall flume and so on. When power off, it can save 10 years.

Base on user's demand, it can attach flash disk, micro printer and storage battery.  High precise, noncontact level measurement, without impact on flow velocity

Specification:

Display resolution: based on input signal

Calibration: factory calibration or on-site calibration

Display: LCD

Voltage output: DC12V or 24V

Signal output :RS485/RS232,  4～20mA,

Work voltage:  AC160V～250V

Normal power consumption : ＜5W

Work temperature: 0～50℃

Humidity: ≤85RH           Pressure: normal
