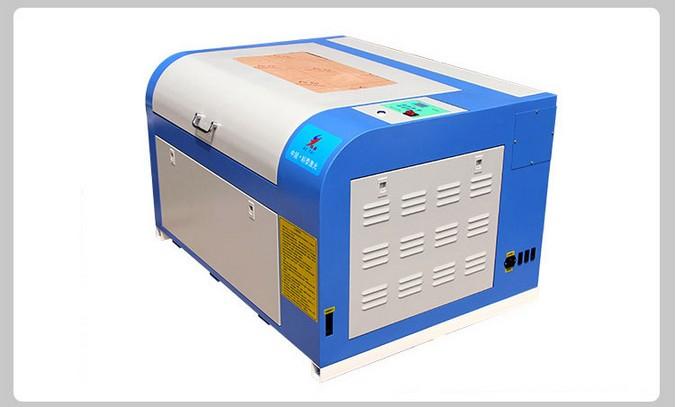

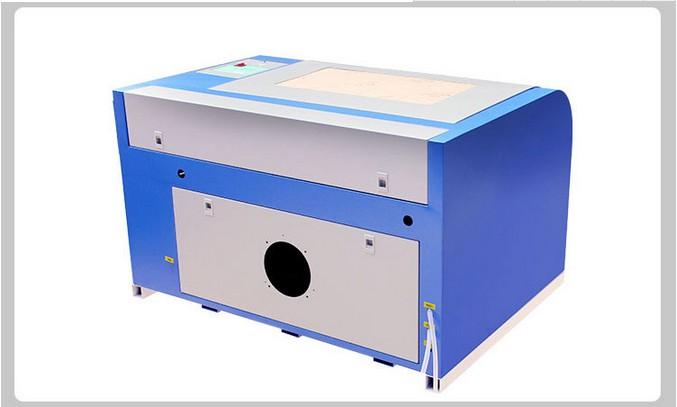

Zi Xu small crafts laser engraving machine acrylic leather cloth wood advertising laser cutting machine

Function characteristic:

1 engraving path of a variety of optimization methods, the shortest path can work, greatly save time, improve work efficiency

2 laser cutting machine using the domestic 80W stable laser system can be used for 24 hours a day, high energy focusing lens, excellent metal reflective lens, light energy loss less, more concentrated. Laser cutting machine cutting speed.

3 English large screen LCD display, users can randomly access to stored documents, user-friendly operation convenient

4. System transfer graphics data, can be a simple layout editor (such as zoom, rotate, copy etc.).

5 can be layered output data, each layer can be independently defined parameters automatically save.

6 images can be carved, the vector drawing lines, cutting and engraving, and can set the accuracy of the sculpture.

7 configuration of laser shooting board, can be achieved offline, energy control, with dichroic cutting and engraving gradient function

Make engraving cutting precision higher, meet the requirements of the packaging and printing industry.

8 professional development of the control software, with independent intellectual property rights, to achieve the engraving and cutting parameter set, with envelope cutting function, can automatically generate the envelope can be arbitrarily set carving region and its parameters, the cutting frame etc.

9 laser cutting machine using the original guide in Taiwan, cutting precision 0.10mm. Laser cutting machine software is powerful, cutting all kinds of graphics with high accuracy, quick response. Longmen strong aluminum frame structure, no deformation for many years.

Machine parameter

Laser type CO2 laser

Laser power 60W/80w/100w

Carving area 600*400/900*600/1300*900/1600*1000/1995*950-2500*1200

Engraving speed 0-2500mm/s

Cutting speed 0-25000mm/s

Repeat accuracy 0.02mm

Motion system CNC control system controlling units CNC

Cooling mode and protection system water-cooling

Working voltage: 220 + 10% 50HZ

Machine power 2000W

Working temperature 0 -39

Working humidity 5%-95%

Our special laser control software software

PLT AI DXF DST BMP

Dimension 900*750*1050

Machine weight kg/250kg/270 kg/300kg/320 kg 170kg/230

Configuration advantages:

Support 1, CorelDRAW and CAD software layout engraving output;

2, color layering engraving and cutting work at the same time;

3, 20USB offline control U disk read file output a computer can control a variety of machine operation;

4, the speed can be improved to the fastest 850mm/s efficiency increased by two times.
