textile machinery springs XL-105

Specifications:

Material	Alloy steel SUP 7
Wire diameter	15mm
Outside diameter	110mm
Free length	80mm
Total coils	3.5
Active coils	2
Direction	Right
End type	Close and ground
Spring rate	10kg/mm
Hardness	HRC 48-52
Surface treatment	powder coated
Usage	textile machinery

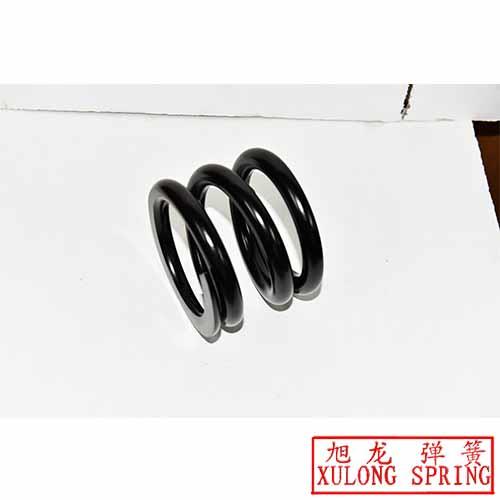

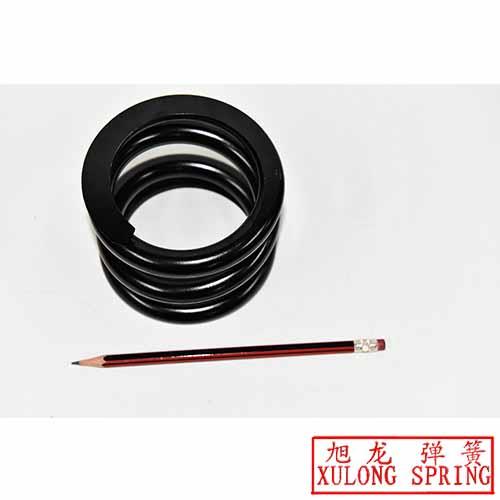

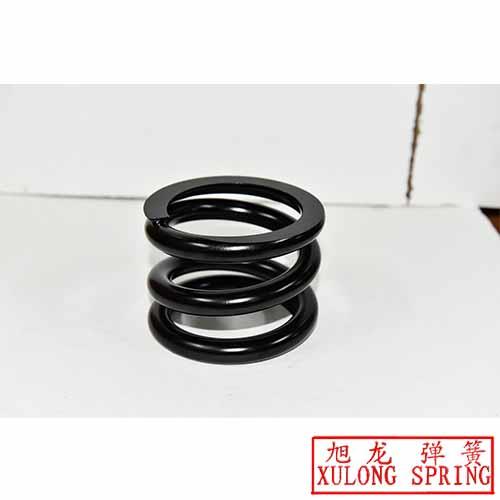

Description of this compression spring which used in textile machinery

1. material alloy steel SUP 7 is choosen to produce our this compression spring,SUP 7 is japan material and its character proved to good.

2. surfact treatment powder coated not only protect compression spring from rust but also beautify these spring mount springs,they can be coated with many colors.

3. the compression springs showed are used in spring mount,when compressed by 25mm,the load is 250KG as customer required.
