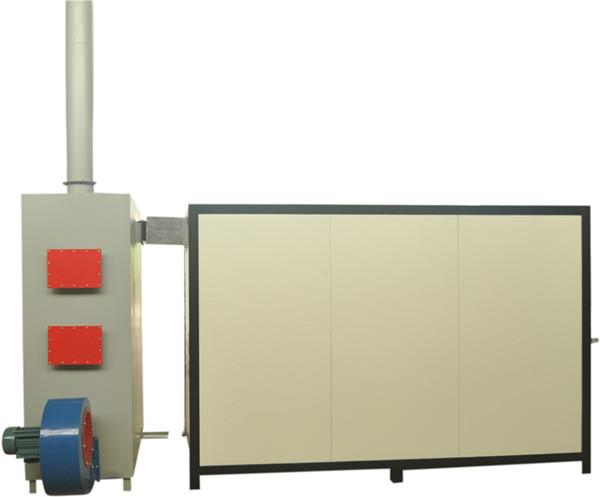

5HGC-15Fruit and vegetable drying machine

First, the scope of application:

Applicable to tea, bamboo shoots, pepper, pepper, walnuts, mushrooms, goldthread root, Gastrodia elata, honeysuckle, chrysanthemum, chrysanthemum, blueberries, grapes, jujube and other economic crops, medicinal herbs and fruit and vegetable category of fixed type low temperature air circulation drying.

Two, the main features:

1: after drying, bright color bright color, not yellow.

2, dry and uniform: every layer of material is dry and even, do not turn material, effectively reduce the labor intensity.

3, low temperature and fast drying temperature by drying, concurrent and countercurrent, drier. Ensure that each particle is surrounded by hot air, in the premise of ensuring the quality of the material is not destroyed, the drying speed is fast.

4, automatic temperature control: fast heating, automatic temperature control. Automatic control of the highest temperature according to different material setting.

5, the operation is simple: the ordinary peasant household reference manual is easy to learn to understand.

Three, the main technical parameters (in the specification):

Drying area M2 1000

Drying chamber volume M3 15

Loaded fruit amount (jujube) kg 2000

Layer (layer 14) pan

The total power of 5.65 KW

Fan power KW 5.5

Volume M3/h 10478-19428

Rated voltage V 380

Heating biomass fuel and coal

Consumption (/h) 5

The amount of consumption of diesel kg/h 35

Weight kg 3300

Size MM 6500*2300*2500

Note: "heating: biomass and coal or natural gas; optional combustion engine or diesel combustion engine
