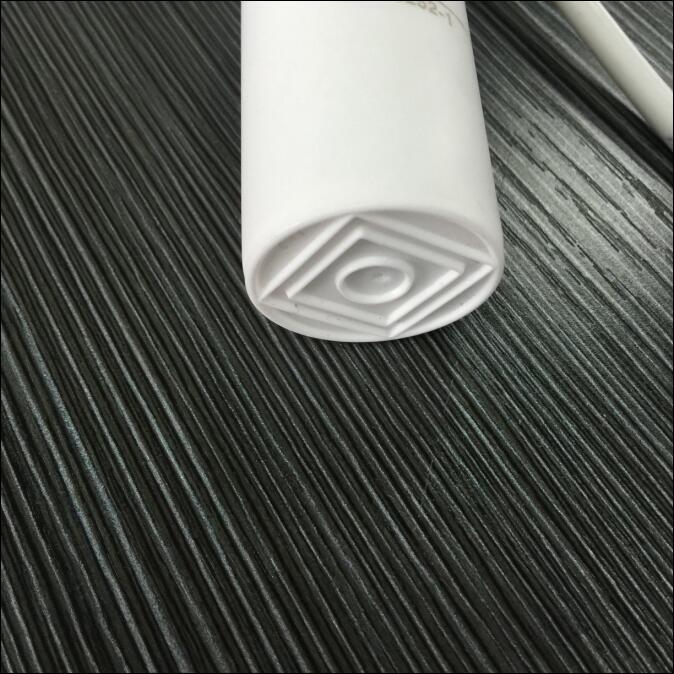

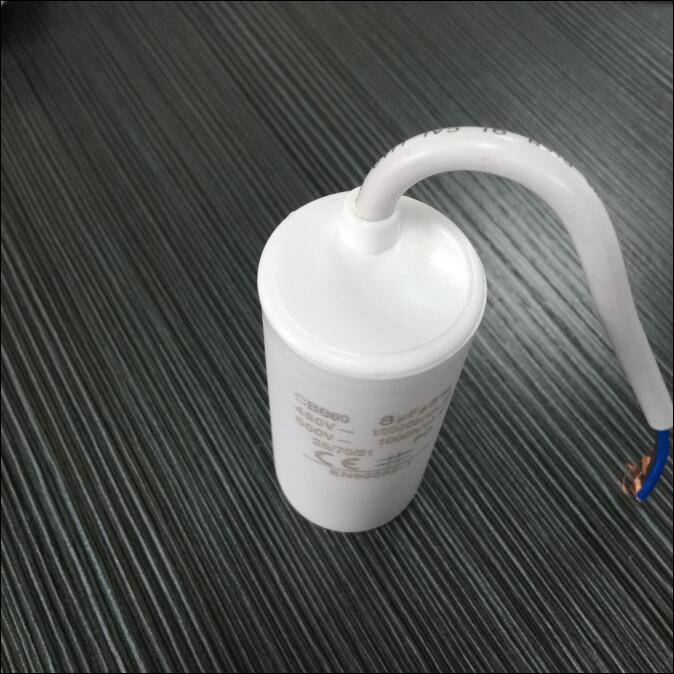

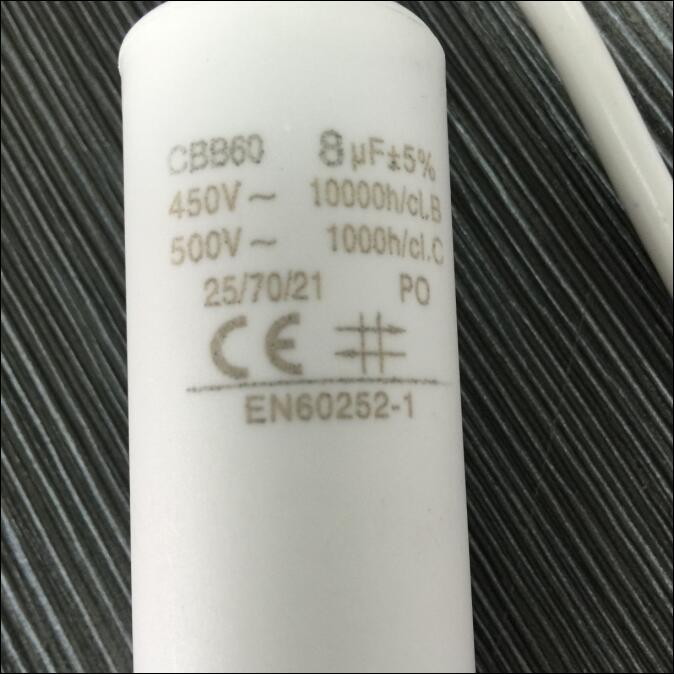

CBB60 series AC motor capacitor 8uf 450V flat base cable type
1. General description:
Broadly applied to running of single-phase AC motors at 50Hz(60Hz)frequency for
washedrs and high efficiency compressors of refrigerators etc.
2.Features:
The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized pp
film as dieledtrie, its components are assembled in flame-retardant ABS or PBT ey
lindrical crust, impregnated with flame-retardant epoxy resin,It has high reliability and
stability.
3.Technical parameter
Standard:GB3667-1997,same as IEC60252:193
Climate type:40/70/21, 40/85/21
Capacitance tolerance: ±5%
Dielectric dissipation factor: tg&≤0.002(50Hz~100Hz)
Life expectancy:3000h(Class C)or10000h(Class B)
4.Service condition
Altitude:≤2000m
Residual voltage in application:Less than 10% of rated voltage
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current
Techinnical Parameters:
Capacitance range | 1-150μf |
Rated voltage Un | 250v.ac/400/450V.ac |
Rated frequency | 50Hz;60Hz |
Capacitance tolerance | ±5%;±10% |
Climatic category | -25+70°C |
Dissipation factor(at 50Hz-Hz and 20°C) | ≤0.002(100Hz,20°C) |
Test voltage between terminals | 2×Un for 3s |
Test voltage between terminals and case | 2×Un+1000VDC FOR 2s |
Reference standard | EN 60252-1:2001;IEC252 |
Outline size
TUV,CE MARK
