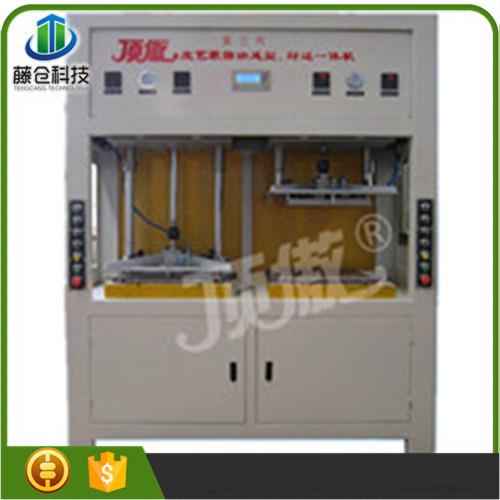

Decorative wall panel making machine automatical

Product Description

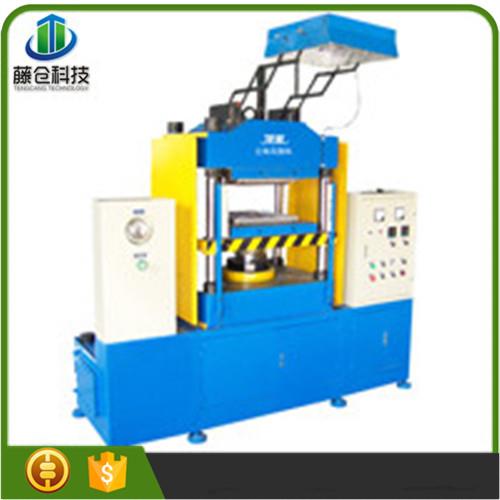

 EMBOSIING MACHINE

3D PATTERN LEATHER FORMING MACHINE

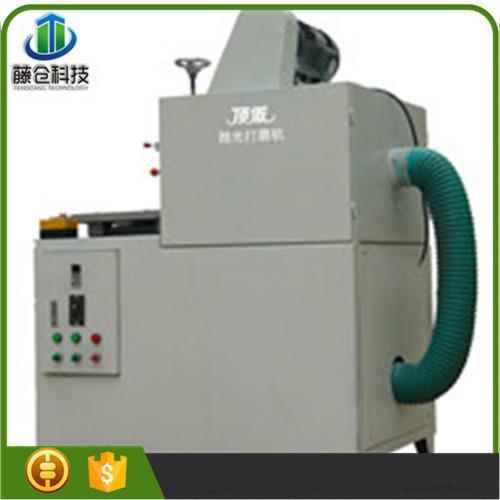

LEATHER POLISHING MACHINE

company information

“DINAO” is the new type brand of building material from Hubei Tengcang Technology. Hubei Tengcang technology have built a new five star Industrial Park, covering 23,000 square meters, located in the "Dongyong hometown"Wuhan city circle Hubei Xiaogan city National High-Tech Development Zone, with research buildings, office buildings, standardized plant and automation equipment and other hardware facilities .we have more than 100 Scientific and technical staff,are specialized in producing the new decorative materials, construction materials, building materials ,building equipment and opto-electrical devices entity enterprise.

Our factory

the leather wall panle making machine need polyurethane foam,mould,pu leather,and pvc board as the picture below.

the mould type

For the operating video pls view

http://v.youku.com/v_show/id_XMTQwNjUxMDA1Mg==.html?from=s1.8-1-1.2

Step for how to use the machine

First ,preparation work

        1.Cut the leather into size 450mm*450mm

        2. Cut the PVC foaming sheet into size 398mm*398mm
        3.  Spray PVC plate edge with seal edge glue

Second, the production steps:                    1, Turn on the machine and  heating switch, set the mold temperature to 40 degrees, sealing temperature to 110 degrees.

2, Set the PLC parameters:

  Molding: 150 seconds

  Aspirator: 10 to 100 seconds (depending leather settings)

  Punch hole: 60 to 120 seconds (depending on the ambient temperature   setting)

  Timelag: 100 seconds

3, Set start mode to automatic

4,Put the cutting leather on the mold

5, Placed the cut PVC plate at the suction plate

6, Stir the material A to B as the proportion of  1:to 0.6 ,then put them after in    the middle of leather

7, press the "start" button and wait for automatic molding.

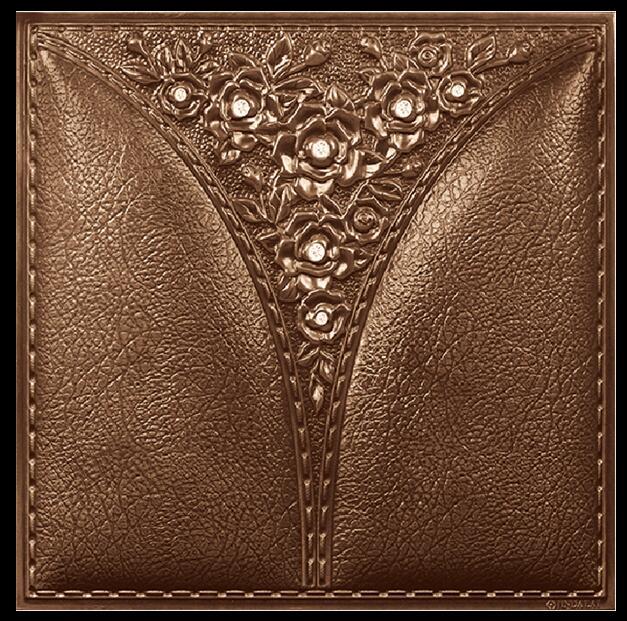

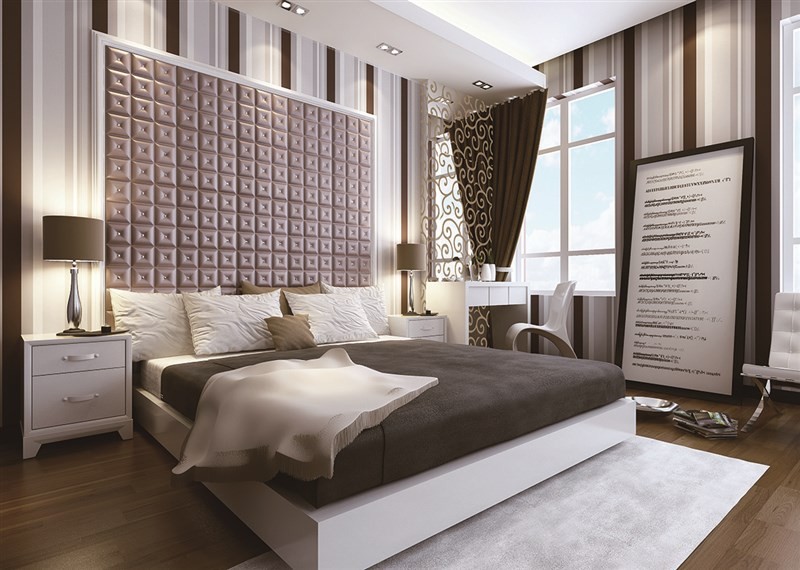

The finished product made by our machine

Productes Advantage

1). patent products, Unique in the market,

2). easy installation:  Decoration glue paste directly instal

3). different texture, unique texture is designed by ourselves

4). new model for wall panel scale.

5). manufacture instead of trading company, so you can get a better price at here.

 Feature

Packaging & Shipping

Our Services

Related products

FAQ

1.When can I get the price?
We aim to quote within 24-48 hours after receiving your enquiry. If it is very urgent, please call us (86-13227157778)or tell us in your email so that we will treat your enquiry as a priority.

2.What are your terms of delivery?
We accept EXW, FOB, CFR, CIF, etc. You can choose the one which is the most convenient or cost effective for you.


3.How about I had never buy product from China?
We will guide you step by step, we can help to calculate all the possible cost for you. Our shipping forwarder will also insist you on your port side.



4What`s payment term?
1: 1.30% in advance,+70% balance paid before delivery.
2.Delivery Details: lead time:1x20ft for 15 days;1x40ft for 25 days.
3.Port of loading: Shanghai,Ningbo, Mainland china.
4.Discounts are offered based on order quantities.
5.T/T, L/C, Western Union, Paypal.

How to find us?

Alice Zhang
Hubei Tengcang Building Materials Technology Co., Ltd.
Whatsapp&viber/wechat/ Mobile: 0086-13227157778
Skype:Alice201205
QQ:304453816

We sincerely welcome every customer to visit our factory!
