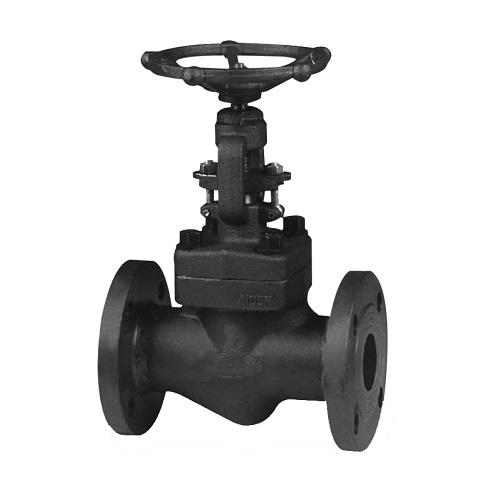

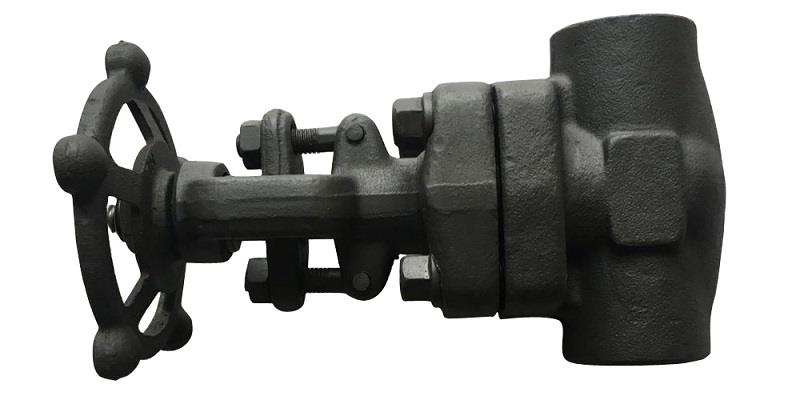

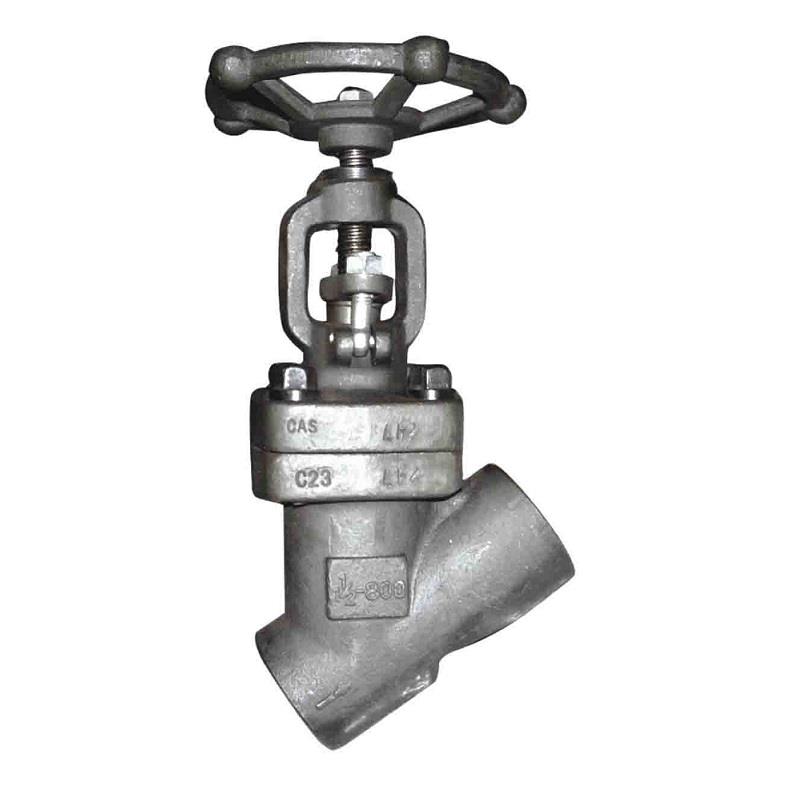

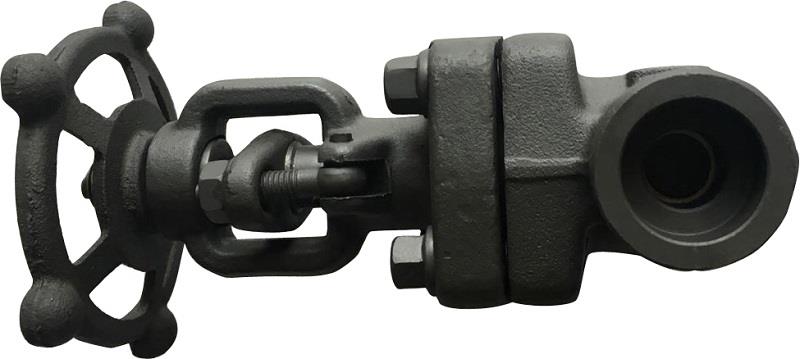

Globe Valve
Product Description
Design standard:API 602/BS5352

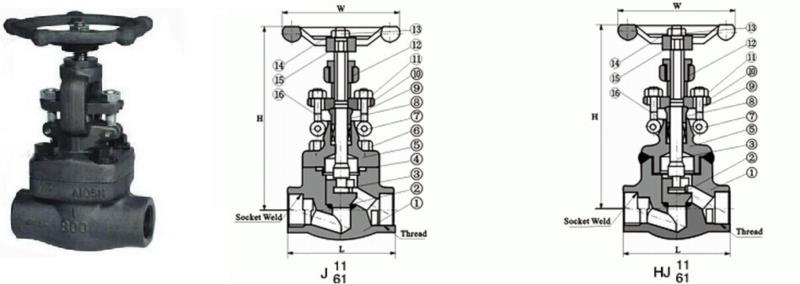

The length of the structure:length of structure of socket welding / thread end of forged steel gate valve is manufactured by factory standard
The length of structure of flange/ butt welding end of forged steel gate valve is manufactured by ASME B16.10
Flange connecting end:ASME B16.5
Butt welding connecting end:ASME B16.25
Wall thickness:API 602/ASME B16.34
Inspection and test:API 602
Pressure and temperature rating:ASME B16.34
Product scope:NPS ½″~NPS 4″,CL150~CL4500

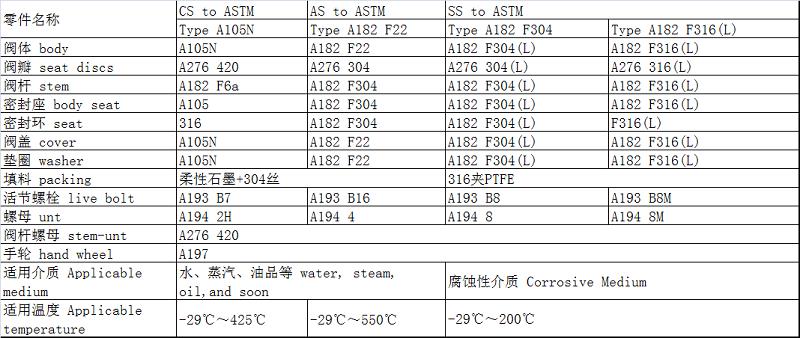

Main body material:A105､LF2､F11､F22､F51､F91､F304､F316､F304L､F316L etc.
Drive device:handle, bevel gear, electric, pneumatic, etc.
Zhongshihua Beijing Valves CO.,LTD
- Phone: +86 010-64502008
- Business Type: Manufacturer
- Location: China
- Main Products: valves
- Total Employees:100-500 people
- Year Established:1995
- Export Markets:Domestic Market,Asia,Africa
- Total Annual Revenue:U.S.$15-U.S.$20
