optical multimeter

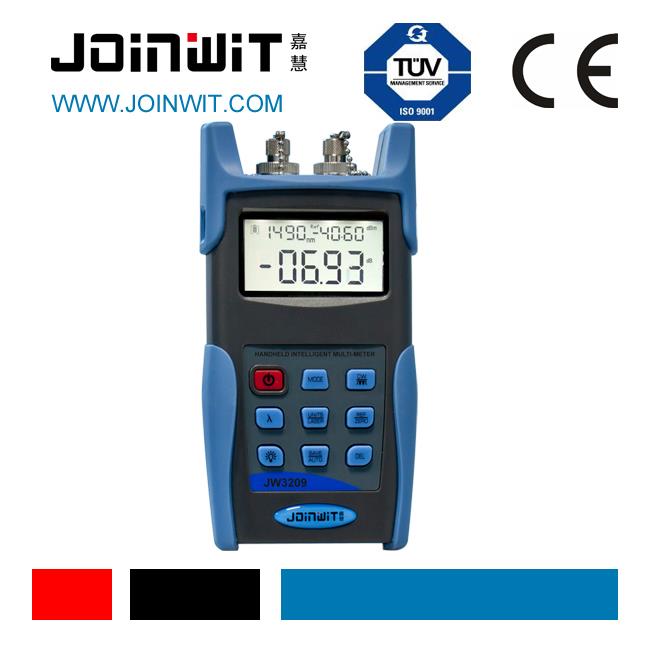

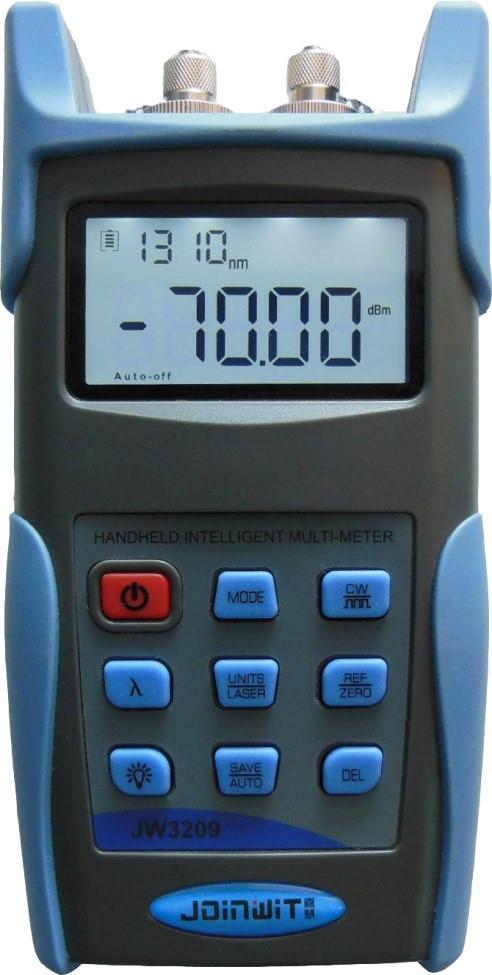

JW3209 is the company highly cost-effective optical multimeter. It’s the integration of power meter and light source. JW3209 has the function of recording, storing and uploading the data tested by the instrument. They are widely used in the fiber-optic line project construction, testing and maintenance, such as digital data network, telecommunication network and cable television.
Features：
Easy mode switching function
Stable Output light
Automatic switching function of the internal source wavelength
Detection of the frequency light
USB data communication storage, uploading and for power supply
Data Storage is up to 1000
Providing the real-time data reading to be embedded in system
Applications：
Maintenance of telecommunication project
CATV project maintenance
Digital data network project maintenance
Teaching and research in optical communications
Other fiber-optic projects
ii、Technical Specifications①
Instrument model parameters | JW3209A | JW3209C |
Power meter | ||
Calibration wavelength(nm) | 850、1300、 1310、1490、1550、1625 | |
Testing range(dBm) | -70～+6 | -50～+26 |
Display resolution(dB) | 0.01 | |
Uncertainty(dB) | ≤±0.25 | |
linearity(dB) | ≤±0.1 | |
Frequency indentification range | ＜10K | |
Source | ||
Working wavelenght（nm） | 1310/1550(customizable) | |
Typical Output Power(dBm) | -5(customizable) | |
Stability（dB,30min,20℃） | ≤0.1dB | |
Modulation frequency (Hz) | CW,270Hz，1KHz，2KHz | |
Other parts | ||
Power supply | 3*AA 1.5Vbattery / Mini USB 5Vadapter | |
Auto-off time (min) | 10 | |
Battery continuous operation time②)(h) | Source ON≥50,source off≥200 | |
Communication Interface | Mini USB | |
Working temperature（℃） | -10～+60 | |
Storage temperature（℃） | -25～+70 | |
size(mm) | 175×90×44.5 | |
weight(g，not including battery) | 265 | |
Notes：650 optional red light mode
① : Tested in T=23±2℃
② : Battery operating time is tested when the backlight is off, otherwise the working time will be shorter
