Small Pneumatic CNC Metal Engraving Machine

Small Pneumatic CNC Metal Engraving Machine

Sample

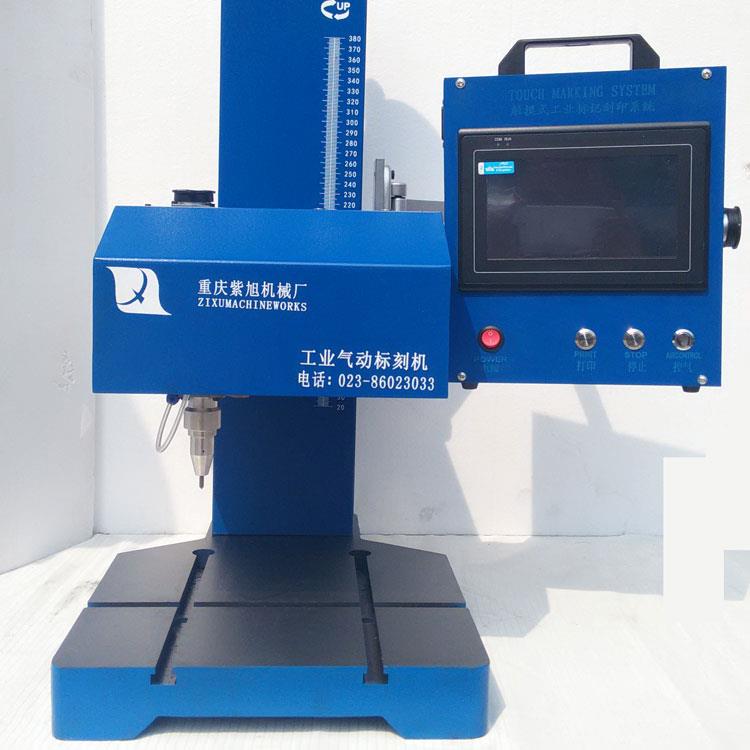

What is model PMK-A01?

Industrial marking system, idea for making permanent marks on variety size of workpieces with different surface, such as flat, curve, concave, convex, round. And also the inside of pipe and other special place that hard to reach. With a customized fixture, all of these things could be done.

Pneumatic dot peen marking styluses, besides normal marking inquiry, there are deep marking stylus (0.1~5mm) and high hardness material (HRC82) marking.

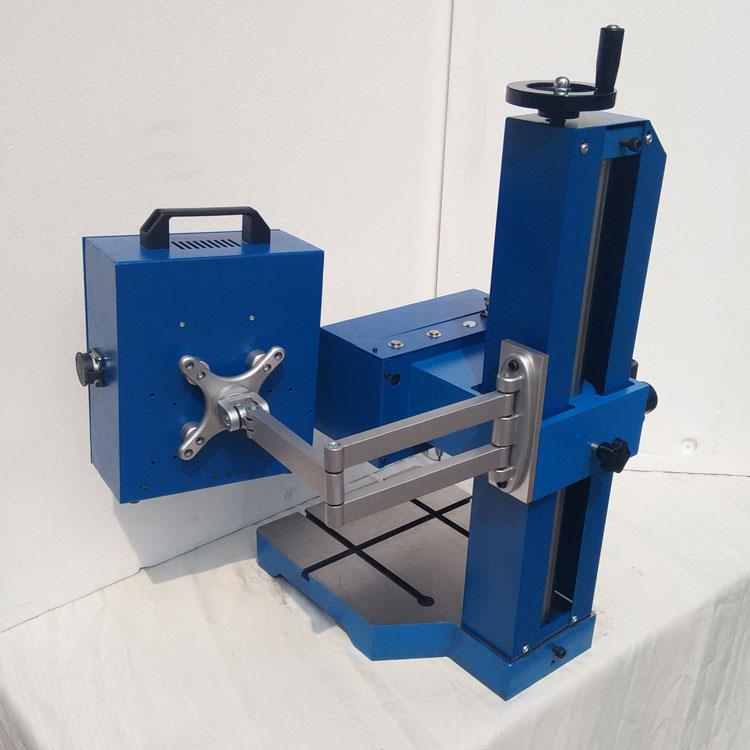

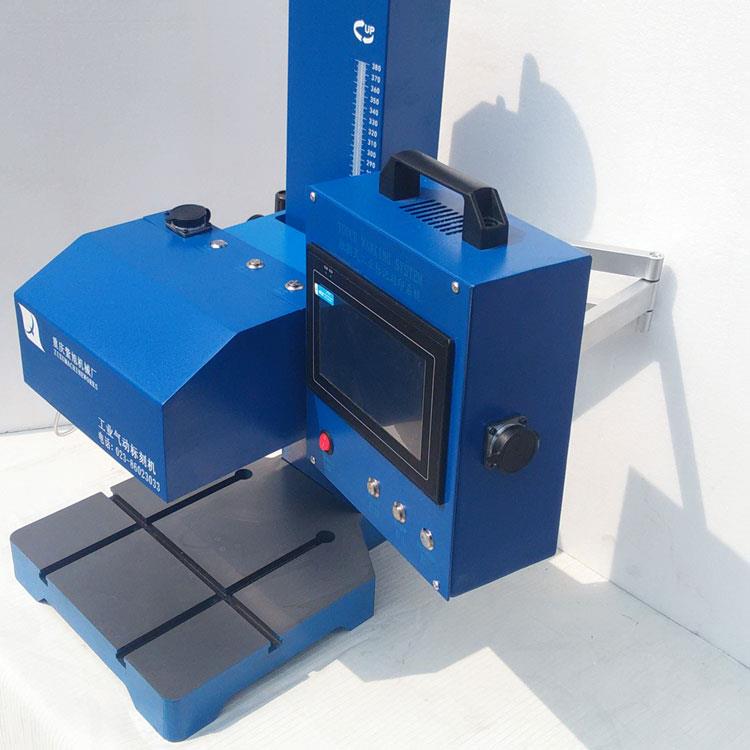

7" LCD touch screen can holding on the side of the machine, saving much working area.

What content can I mark?

• Any character size 1mm to 100 mm

• Serial number (value, tee, elbow, batch, shift)

• Arabic numerals Alphanumeric (Figure& Letter)

• Graphics

• VIN code

• Time variables (year, month, week, day, shift)

• Date& Time

• Barcodes & Reading

• Ticket number

• Date Matrix/2D codes/ Matrix size: 5 x 7, 9 x 13 and continuous line

• Logos marking

• Special symbols

• Database connection marking

What field could this model be used for?

To be applied in Automobile, bodywork of motorcycle, car frame ,automotive chassis, engine, mechanical part, machine tool, metal pipe, gear, pump body, valve, various hardness plastic products, hardware part, Aeronautics, Electronics, war and light industry for marking steel, iron, copper, aluminum and plastic parts and various nameplate marking.

• Direct Part Marking (DPM)

• Compliance Marking

• Data Matrix Coding

• VIN Coding

• Programmable Marking

• Component Identification

• Component Traceability

• Serial Numbering

• Lot Numbering

• Stock Products Numbering

• Steel Stock Marking Engraving

• Metal--Aluminum/steel/copper and etc. Plate, Tag, label and Pipe Marking

• Cast and Forge Marking

• Logo Marking

• Security Marking

• Health & Safety Appliance Marking

• Certification Marking

• Time & Date Marking

• Part or Equipment Numbering

• Batch & Shift Coding

• Calibration Marking

• Various Metal Labels Marking

• Metal Sheet Embossing

Parameter

How about the software?

Multi-languages, serial No., Arabic numerals, arbitrary figure, incrementing serial No., graphics, VIN code, time, date, barcode reading marking, ticket, dot matrix, 2D code (two-dimension code), circumferential parts marking and connected to database marking.

Available in a variety of languages (including English, French, German, Spanish, Swedish, Finnish, Italian, Portuguese, Cyrillic and Czech), the software also contains features such as serial numbering, date and time marking and password protection.

Support multiple graphics and fonts, compatible with AutoCAD, CorelDraw.

Machine quality?

• Advanced USB interface control technology

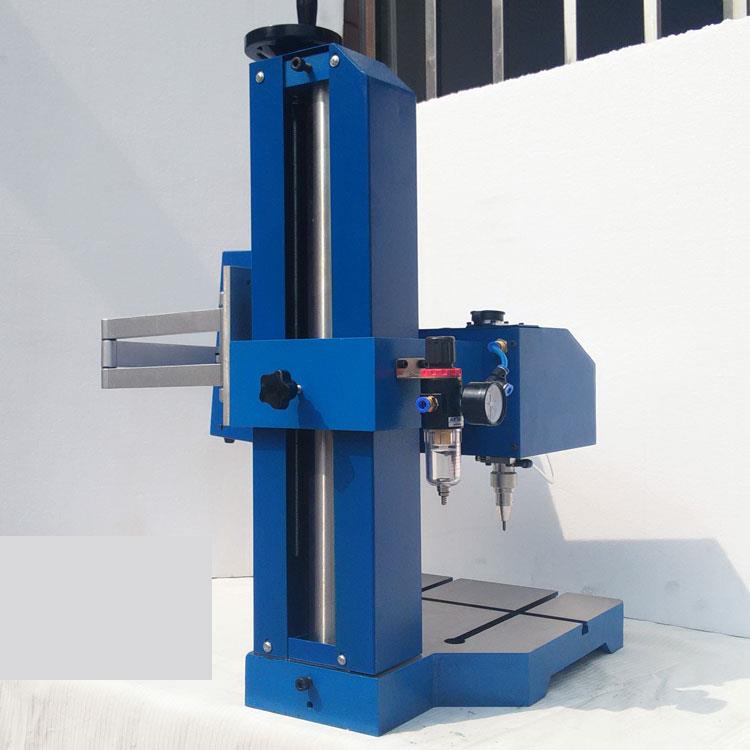

• Taiwan HIWIN guide rods

• Automatic System Trouble Analysis

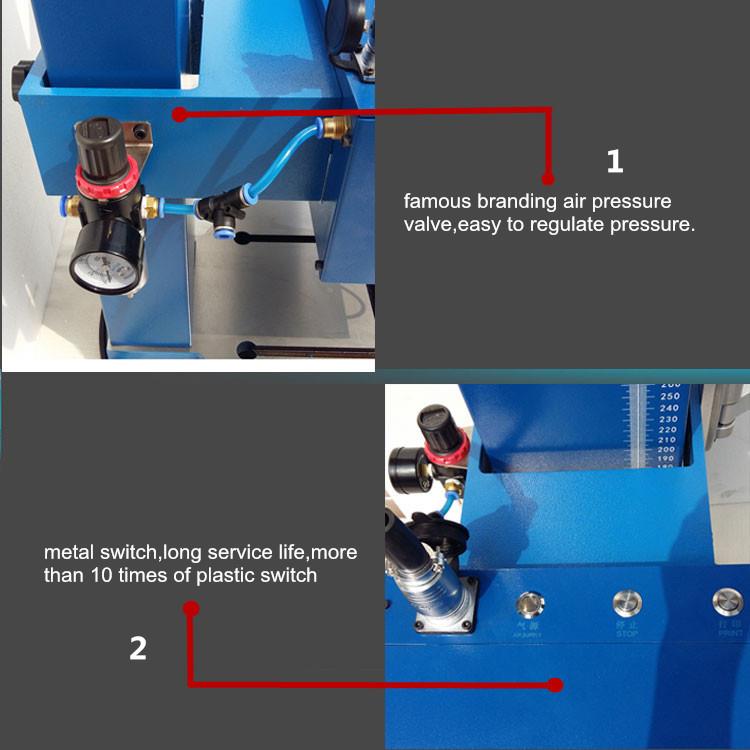

• Japan SMC high-frequency electromagnetic valve

• Big torque, small angle stepper motor

• High precision power driver

• ThorX6 marking software

• Rotary fixture supported

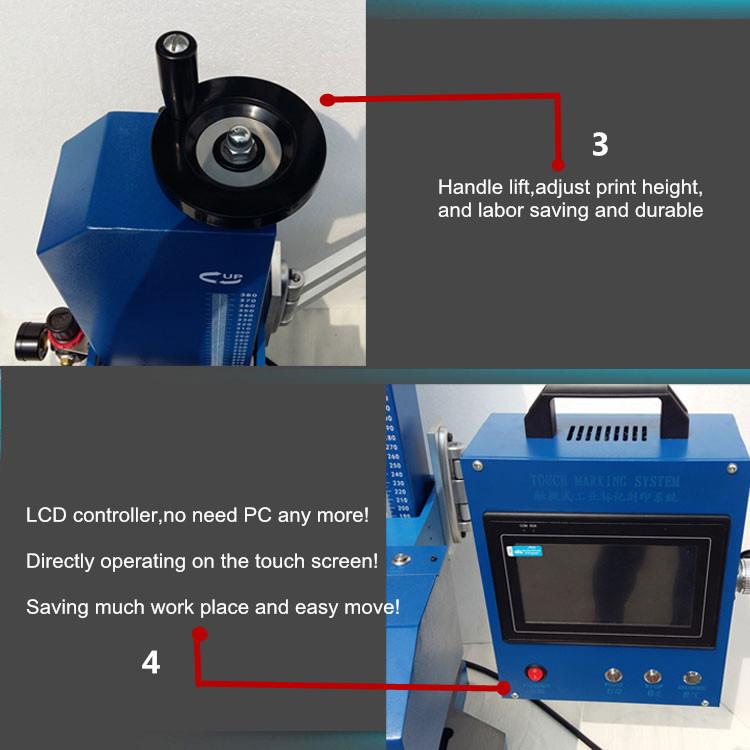

• 7"LCD touch screen controller
